01.0°W Intelsat 10-02 <S1/3 Eu.>

1st Official Post
    • Official Post

    Intelsat 10-02 -

    11471,896MHz - Vertical - SR: 13308,49 Ks - 3/4 - DVB-S2 QPSK2 Pilot : OFF
    Bitrate : 19,802 Mbit/s

    Service name: ROH

    11465 V,9748,3/4,Dvb-S2/8PSK,CCM-Dubarry Park Dirty

    11477 V,9748,3/4,Dvb-S2/8PSK,CCM-Dubarry Park Clean

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    Edited once, last by satesco (February 13, 2015 at 10:16 PM).

    Currently active feeds
    11462,V,4937,56,30,|10.9 dB TV Klan Biss
    11498,V,4610,34,150,|11.2 dB CNN
    12515,V,3330,56,22,|13 dB B311DGI-Sport_Digi Brasov
    12519,V,3681,56,132,|13.2 dB Digi Sport Oradea
    12523,V,3748,45,21,|14.2 dB B 186 DGI
    12529,V,4750,56,150,|11.9 dB B 101 DGI
    12535,V,4980,35,134,|14.4 dB DigiSport HD(HUN016) Biss

    11502 V,2220,3/4,Dvb-S2/8PSK,CCM,Single-TV Norway E/S

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    11526 V,7400,3/4,Dvb-S2/8PSK-News feed

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    11487 V,3332,7/8-BUL 009
    11492 V,3332,7/8-BUL004 NOVATV

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    11005V 9600 DVB-S2/8PSK 3/4
    from Norway

    Images

    superdish66 setup

    Loc: ASTI-ITALIA

    DH 4.25M for KU H/V/L/R, C H/V/L/R–HH+EL

    FEEDS

    KUH/V: ADL920+OMT

    KUL/R: ADF120+SMW dep+SMW OMT

    CH/V: AVCOMM HighEff.+OMT

    CL/R: AVCOMM High PerfCirc+OMT

    LNB

    KUH/V: 2xSMW WDLDUAL ULPN

    KUL/R: SMW QPLL+SMW LNB ULPN

    C 5G: 4xAVCOMM L1508F 3.9-4.2-4xNorsat 3100-BPF4 3.8-4.2

    HARDWARE

    RC2000C+3xVBOX3

    TBS5925,5927,6983,2x6908,6903X,6909X,V8UHD,GTCOMBO,HELLOBOX8, SKYQ

    Feed changer on the way: LinearMoto, RotorFeed skew adj.

    28E Gib125,5W CM120,30W CM120,19E GBC80,13E GBC80

    • Official Post

    Some more atm.

    Two shown here:

    11472 V 14000 2/3 DVB-S2/HD 8PSK

    11499 V 13310 3/4 DVB-S2/HD QPSK

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    • Official Post

    As I said previously,

    Quote

    Original von Feedsat
    IS 905 will going inclined orbit, a part of contrbutions services will moved to 1°W IS 10-02

    :46:

    Today I had the oportunity to do a test with Intelsat (thanks holidays meetings ...)

    here is a test on TXP 310XL

    it was available only few seconds for fun, no video modulate.

    12511 V 3302 5/6
    :72:

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

    12652 H 14400
    Service Name: NOR 044 Encoder 1
    Provider Name: NEP Norway

    12551 V 3600
    Service Name: TV2 Norway Encoder 1 HD
    Provider Name: TV2 Norway

    • Official Post

    Danke VodzigorLans :76:

    Hier die Bilder für diese beide Transponder.

    We have separate toppics for this position, ME beam and Europe.

    This is ME so your posts will be moved to "Europe" :72:

    Location: Slovakia, near Čadca

    Kathrein 220cm , KU+C,

    Quote

    Original von marval450
    We have separate toppics for this position, ME beam and Europe.

    This is ME so your posts will be moved to "Europe" :72:


    THX ,now i see!

    /merged in this toppic by qwer.

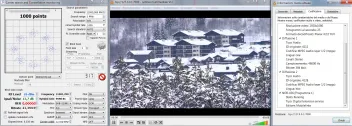

    12507V2100 maybe was feed, 80Mbit Video,total 100Mbit
    -------------------

    Variables:

    Thor 5-6 - Intelsat 10-02 .8W 3592 DVBS/S2 Tuner A 12508 Vertical 2100,055 32APSK 4/5 DVB-S2 ON 0.35 Normal CCM 8,337 2,835 0,0 -56 MIS: 0, BER: 0,0000000, Time to lock: - ms 24.01.2019 17:08:18
    ------------------
    Video: MPEG4 Video (H264) 1920x1080 25fps [V: h264 high L4.0, yuv420p, 1920x1080]
    Audio: MPEG Audio 48000Hz stereo 128kbps [A: mp2, 48000 Hz, stereo, 128 kb/s]

    Allgemein
    ID : 160 (0xA0)
    Vollständiger Name : C:\!Records\.8W_12507,642_V_2100_(2019-01-24 17.12.19)_dump.ts
    Format : MPEG-TS
    Dateigröße : 5,29 MiB
    Dauer : 3 min 48s
    Modus der Gesamtbitrate : variabel
    Gesamte Bitrate : 194 kb/s

    Video
    ID : 512 (0x200)
    Menü-ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Codec-ID : 27
    Dauer : 3 min 48s

    Audio
    ID : 4112 (0x1010)
    Menü-ID : 1 (0x1)
    Format : MPEG Audio
    Format-Version : Version 1
    Format-Profil : Layer 2
    Codec-ID : 3
    Dauer : 3 min 48s
    Bitraten-Modus : variabel
    Kanäle : 2 Kanäle
    Samplingrate : 48,0 kHz
    Video Verzögerung : -222 ms
