34.0°W Skynet 4F (incl.) (OLD POSITION Data>X)

  • Spike on 7520 but nothing else

    I hope that is the correct satellite, but I don't see other Xband sat around this position

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Skynet 4F is a very inclined satellite (8.8°), and was near the belt when you posted.
    If in a few hours the signal is gone (or needs pointing correntions), it will be Skynet 4F alright!

    If the satellite turns out not to be inclined, it could be the GSSAP 4 surveillance satellite.

  • OK, thanks hvdh, this is Skynet 4F.

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

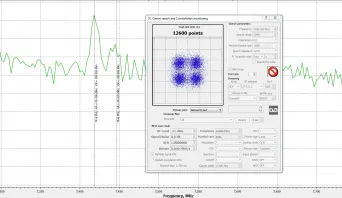

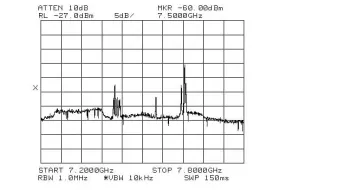

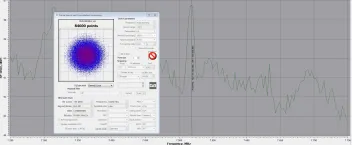

  • Spectra on 2.4PF.

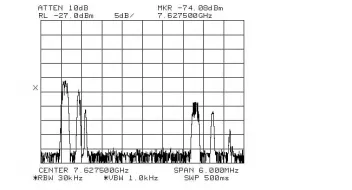

    Nothing locked using Crazyscan. There is what looks like a 120MHz+ wide signal at the low end. There is also a noise peak centred on 7650MHz but there are narrow band signal within it (see 2nd plot). All the stronger signals are narrow band.

    The satellite was at its maximum inclination above the Clarke Belt at the time I was looking.

  • nothing really new...

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Operator has said this satellite was moved to graveyard orbit and passivated.
    But Space-Track has lost track (!) in the process and TLE's are missing for several weeks already.
    So the X-band signals should be gone now!

    Location: Oss, NL, 5.5°E 51.8°N. Rx: Dr.HD F16, TBS 5927.
    Laminas 120cm 1°W...68°E, T-55 9/13/19/23/28/39/42/45°E.

  • qwer November 15, 2025 at 5:23 PM

    Changed the title of the thread from “34.0°W Skynet 4F (incl.)” to “34.0°W Skynet 4F (incl.) (OLD POSITION Data>X)”.
