25.8°E Es'hail 2 DATV 10.5 GHz

s-band cool!

I have S2 1/2 now, change?

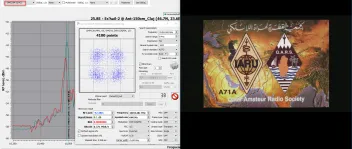

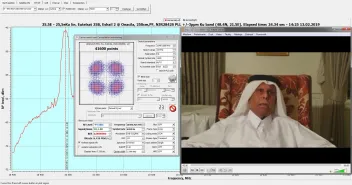

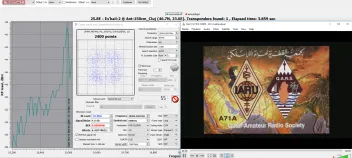

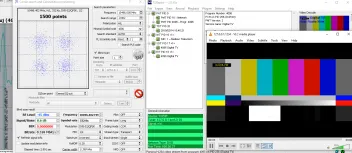

Test on 115cm dish.

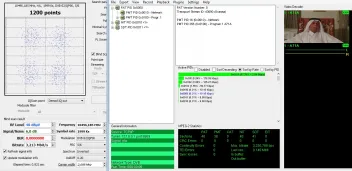

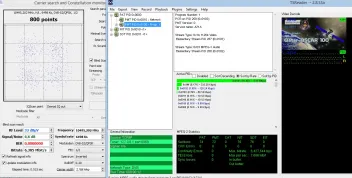

Smaller antena better signal .

I can't believe this ,is this ku-band?! ,I can see it from here to !
very impressive S-band and Marval450

That`s a great finding guys.
But I`ve got something special for you `cause as far as I see, everybody is using just a standard KU band LNB for this low frequency.

I do not wanna make advertising for the manufacturer of the LNB, but Peon keeps looking forward and is always a bit ahead, so he has the LNB designed for this frequency range.
Actually that LNB designed for 10-10.7 GHz has been lying in the drawer since 12/2016 and waiting for its time to come...

There`s also another LNB that goes pretty above 12.75 Ghz range, too.
As it was said, Peon is always prepared for fishing no matter what band we`ll talk about.

My thanks for pictures go to Peon.
Pictures have been edited for personal/advert reasons.

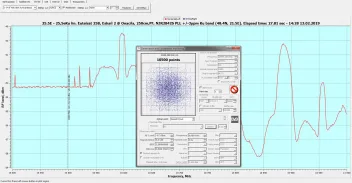

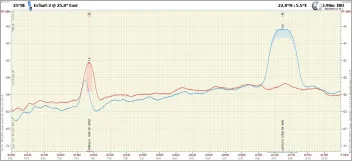

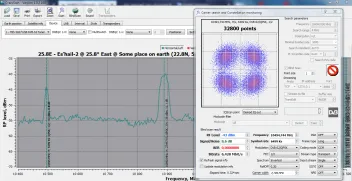

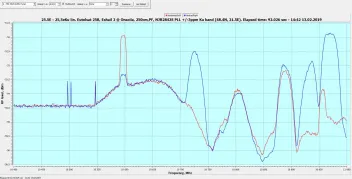

Also, what do you think about the second frequency that appears on Peon`s scan?
The scan was performed on standard LNB not the one mentioned above.
Can anybody else see 10598 H?

thank you very much Sato for all these useful info

10598 H should be test-carrier like these : I can't see it Now

test carrier frequencies rest only short time

Kann mir jemand sagen, wie man CS dazu "zwingen" kann den Bereich 10400 bis 10700 zu zeigen?

TBS 5590
No chance, no CS support. There`s no chance to find out the scanning range. No scanning program supports it, yet.
This card deserves support as it can show so much!

TBS 5925
Start scanning frequency is from 10550.

TBS 6983
OK

TBS 6903
OK

TBS 6903x
OK, but there`s no CS support and because of that a false frequency appears.
BUT LOCKED after manually given all necessary parameters.

TBS 5927
OK

TBS 5520SE
OK, but it doesn`t show all necessary parameters. Lack of support - no blind scan support yet.

Prof 7301
No chance.

TU Marval450
73!

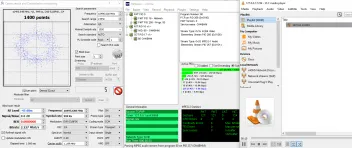

10494 H,6500,1/2,dvb-S2, with other dvbs cards,besides those presented by sato,of course after I set up lnb in StreamReader,Thanks

tbs6522,tbs6590,Omicom S2

10495 H 2000 QPSK2, new SR and they test various FEC

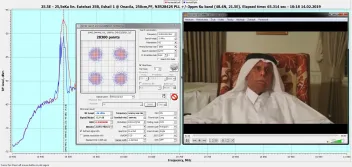

E: signal went up, over 12db with 220, I tried 67cm dish, locked QPSK2 2/3 ca 5db.

Frequency is lower now, 10493-4? , PLL needed .

FEC stable 2/3

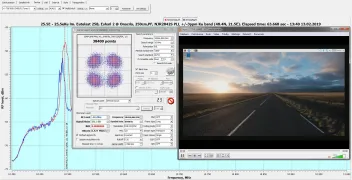

Test with EBS Pro and 67cm dish, old lnb 0,6db.

Quote

Original von marval450
Frequency is lower now, 10493-4? , PLL needed .

FEC stable 2/3

Test with EBS Pro and 67cm dish, old lnb 0,6db.

New frequency 10492,3 GHz

Thanks, Peon,

Another one, 10496 H 1000 3/5 8PSK no lock.

Quote

Original von marval450
Thanks, Peon,

Another one, 10496 H 1000 3/5 8PSK no lock.

10496 H,1000,3/4,8PSK-ON4BHM
Thanks :)

10492 H & 10496 H

10490 H,1000,3.4-left,but another feed has been activated:
11496.4 H,332,1/2,s2-Digital

10498 H,333,1/2-M0DTS
