01.0°W Intelsat 10-02

**qwer** · June 5, 2020 at 10:22 AM Official Post

4163 R 11683 26/45 DVB-S2X 16APSK

**qwer** · September 28, 2020 at 6:15 PM Official Post

Found one "at the end of the road"...

4192 R 2032 and 16APSK 25/36

/edit:

I think also in DVB-S2X (locked on TBS 6903X) - not new, but new for the list:

3887 L 3731 in DVB-S2X

**qwer** · October 28, 2020 at 8:52 AM Official Post

Not new, but in S2X according BS:

4054 L 30970 and 8PSK 13/18

**qwer** · December 24, 2020 at 11:14 AM Official Post

Another:

4188 R 5635 DVB-S2X 32APSK 32/45

Still there: 4192 R 2032 DVB-S2X 16APSK 25/36

**satesco** · April 5, 2021 at 9:30 PM

4054 L,30978,13/45(S2X)QPSK2,0.15,ACM-Packetized.Not new, superdish66at GS #98

/merged by qwer in GS>C>S2X toppic

**qwer** · May 2, 2021 at 7:07 PM Official Post

Changed parameter: 3854 R 14581

Spectrum with TBS 6903.

**qwer** · August 29, 2022 at 10:59 AM Official Post

Now, using TBS 6522 and TBS 6903X - on diff. Modcodes (also in S2):

4176 R 34285

/edit: ...and in circular left...

4056 L 32725 - still there

3826 L 68570 - new

**qwer** · May 31, 2023 at 5:48 PM

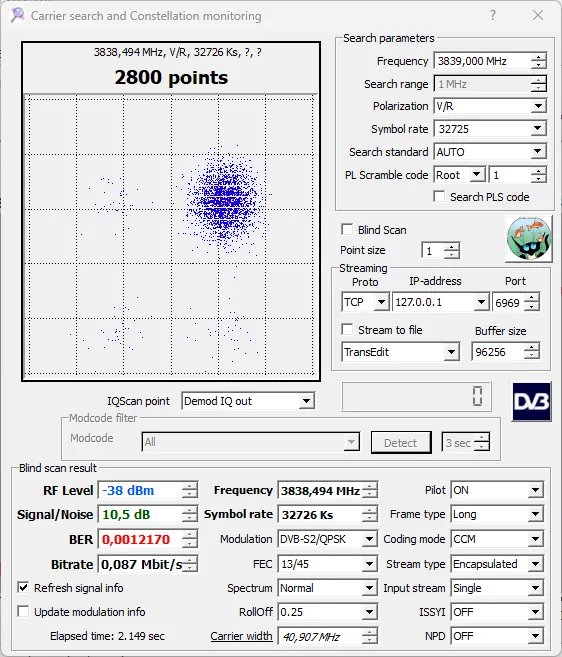

One new for the list, catched with TBS 6903X:

3839 R 32726

**qwer** · October 7, 2023 at 10:40 AM

Three unchanged locks here in S2X:

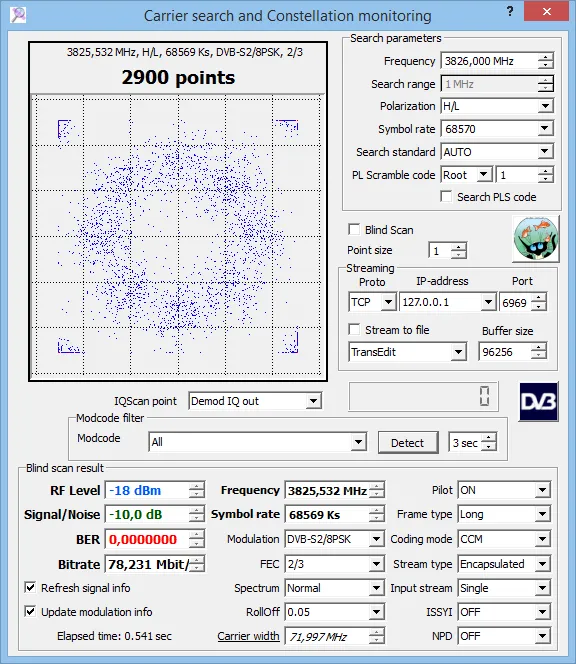

3826 L 68570

4056 L 32725

4176 R 34285

**qwer** · May 12, 2024 at 10:13 AM

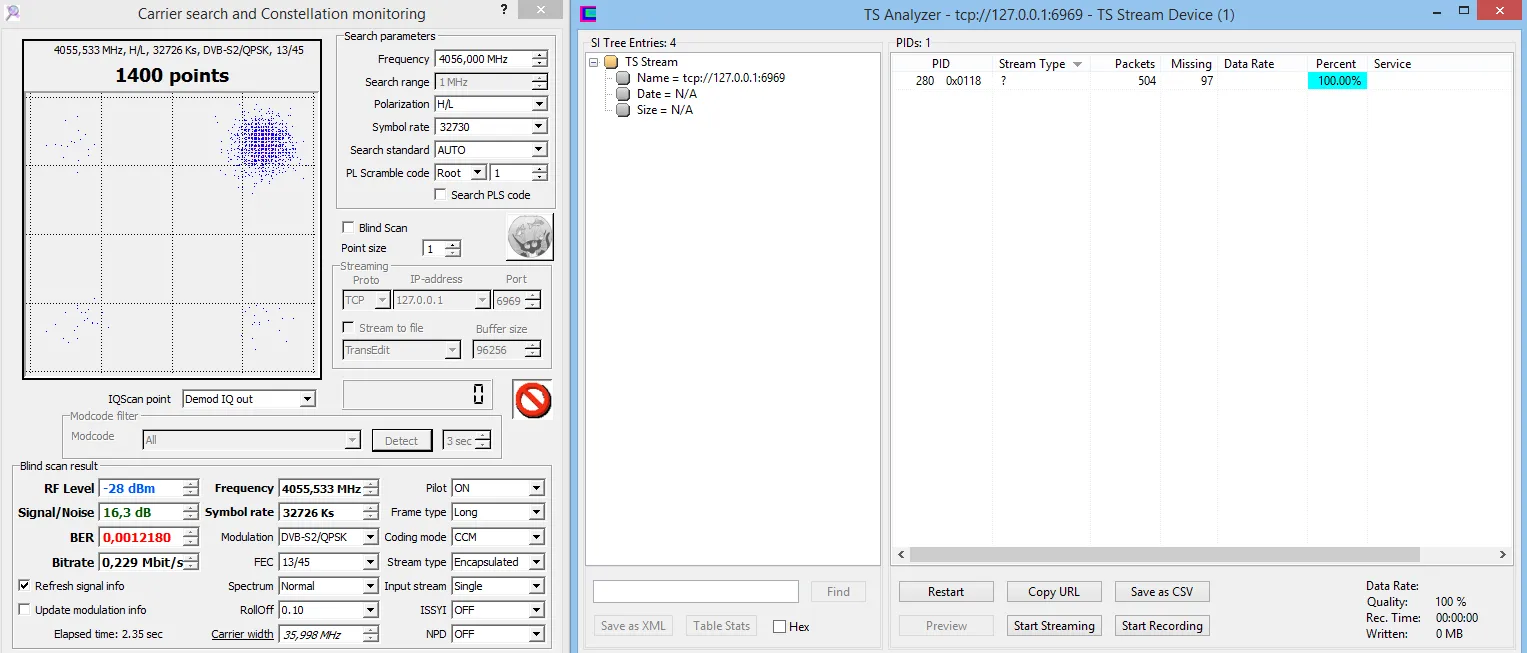

One new for the list, using S2 and S2X...

4060 L 25200

**qwer** · November 2, 2025 at 8:30 AM

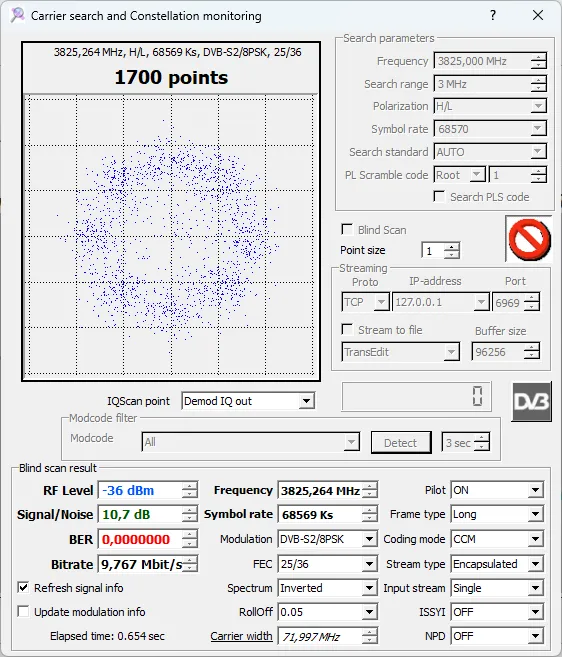

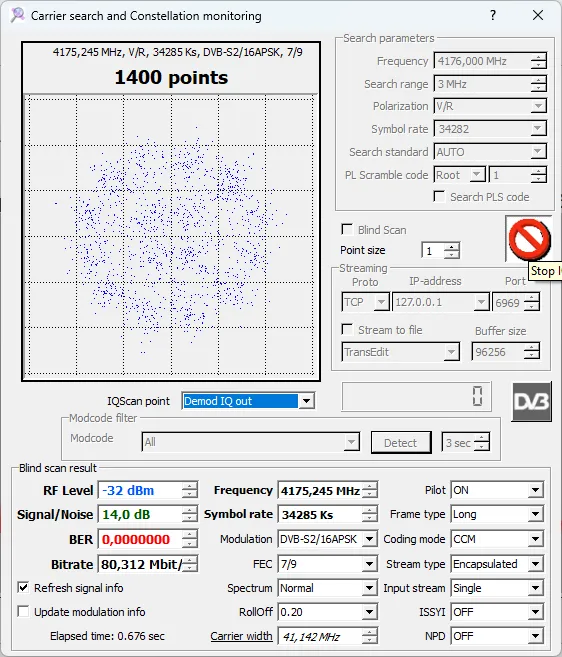

Quote from qwer

4176 R 34285

Quote from qwer

3826 L 68570

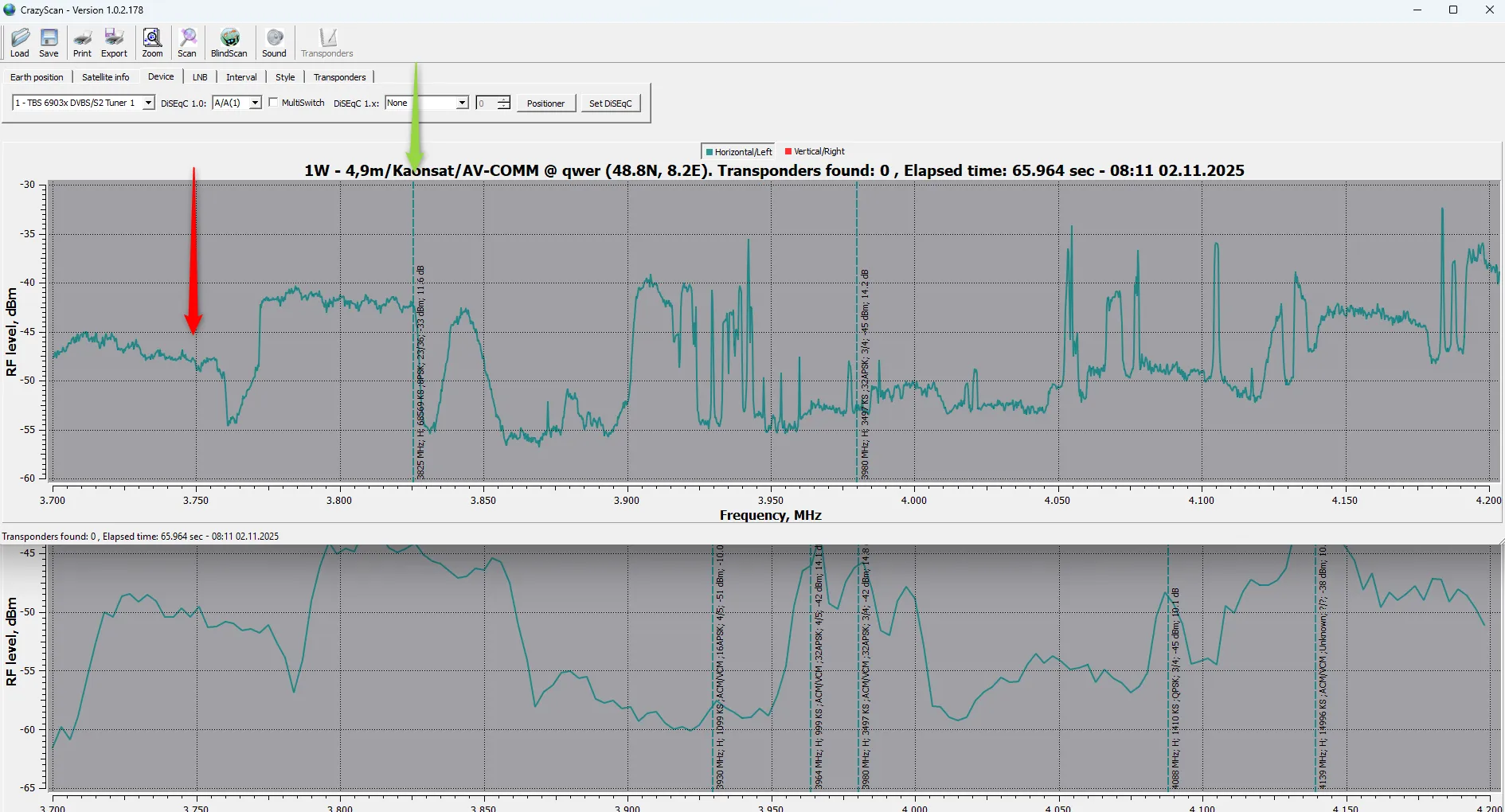

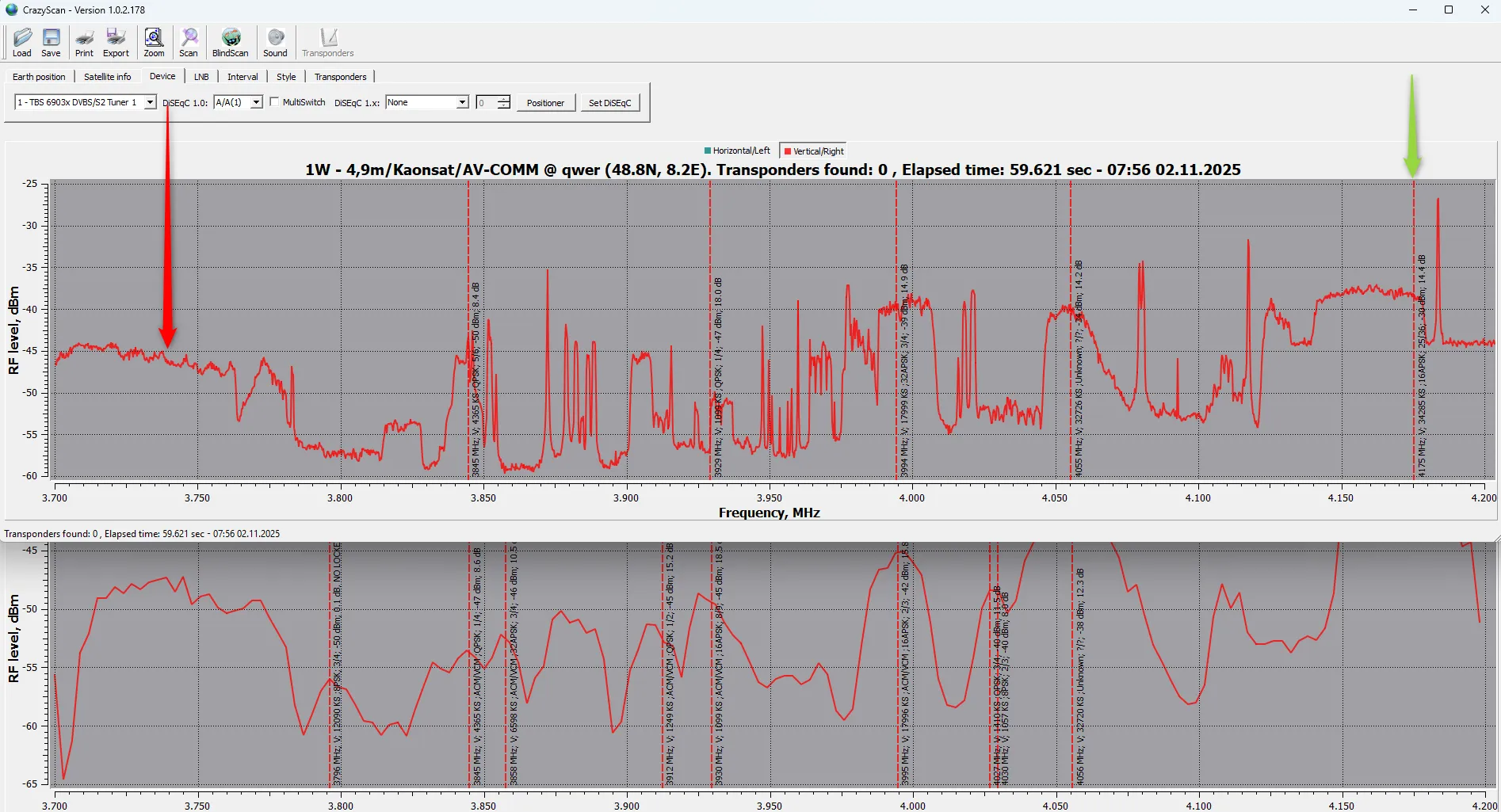

Only these two (green) are still lockable on TBS 6903X, other two peaks (red) are not lockable... (attached TBS 6903 scan behind)

**qwer** · January 19, 2026 at 4:56 PM

Only these two are still lockable...
3826 L 68570
4176 R 34285

**qwer** · May 2, 2026 at 6:33 PM

New for the list, also using S2X...
3982 R 18635
