Extended Air Spectrum with TBS-card

  • After simple search in Wiki ,it appears to me that Terrestrial signal is from 3-3000Mhz :25:

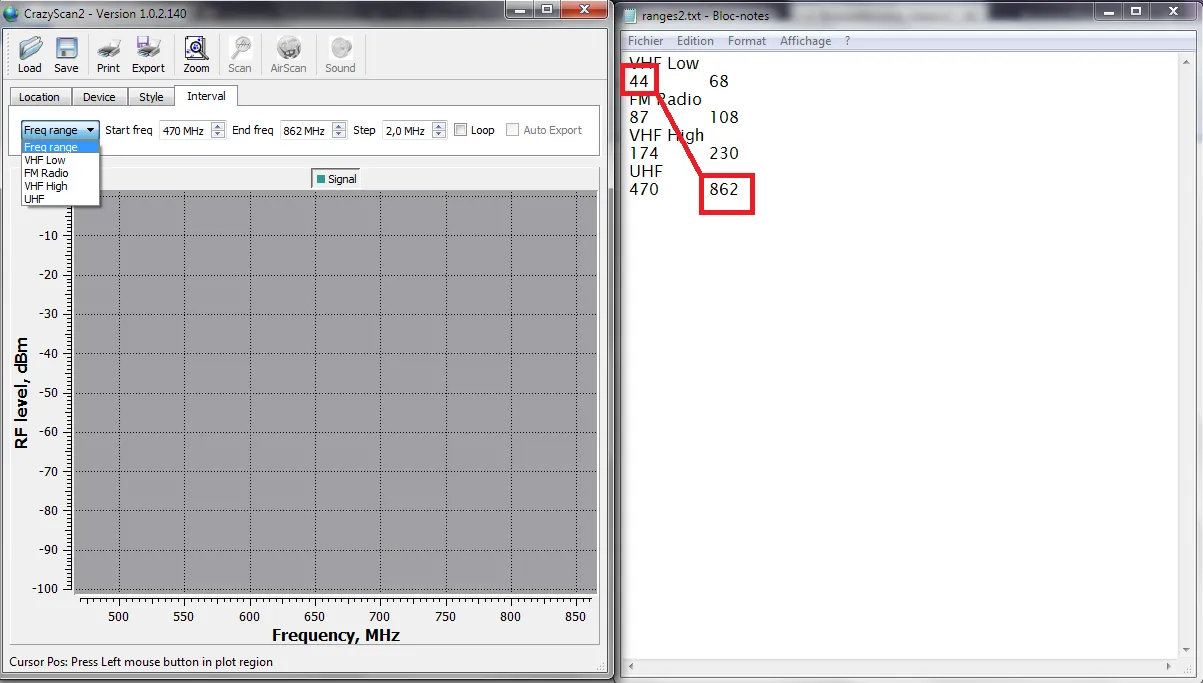

    by putting this interval in "ranges2.txt" in Crazyscan2 file , finding that the limit of TBS5521 is from 48-1000 Mhz

    we don't have DAB/DAB+ in Algeria yet :26.

    Best regards

    flie

    Images

    My equipment

    Ku: 0.90m (Géant perforated dish) 63°West -70.5°East

    Ku: 1.80m OS

    C: 1.80m PF

    Ku: 1.21m @ 7°w

    Ku-Band single LNBs: Televes UNI 7475,Inverto Black ultra IDLB-SINL40
    Ka-Band LNB:TRIAX twin-ka TKT001
    C-Band LNB:Panorama ER861

    ku-extended LNBs: Bwei 9Ghz & 12.8Ghz

    C-extended LNB: Bwei 5750Mhz

    Tuner: TBS5927,TBS5520SE,TBS6903X,Skystar usb HD,GTmedia-V8-finder

    Location: 22.8N,5.5E-Algeria

  • 1, TBS not support DAB modulation (must use some card for SDR engine)

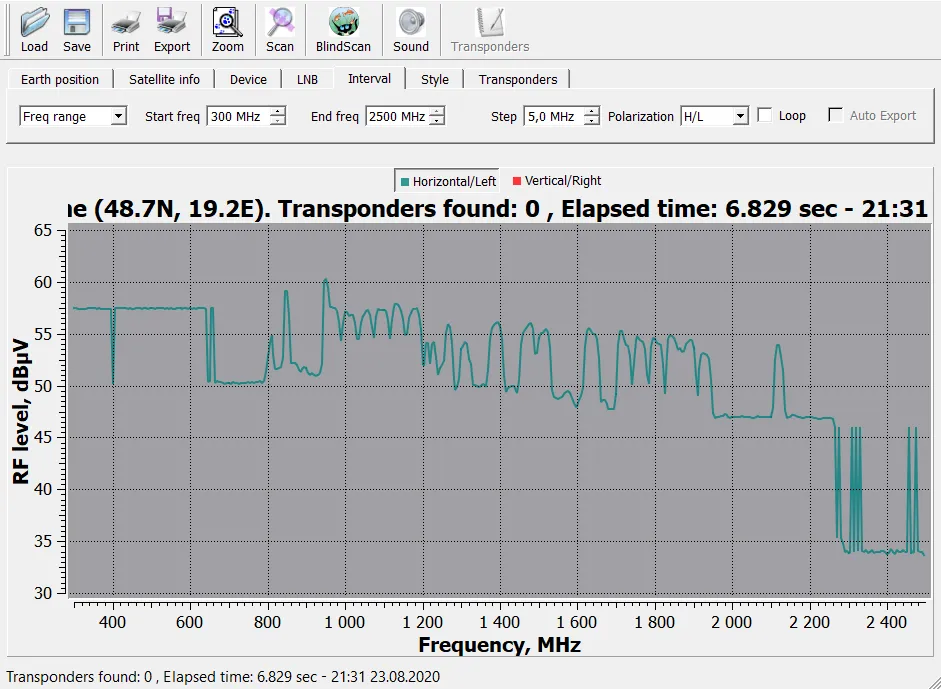

    2, real wide spectrum for CrazyScan (not CrazyScan2) in streamreader.ini

    Code
    ;! Change IF range (default 950-2150MHz)
    IFStart=250
    IFStop=2550
    ;LNBMid=6000
    ;LNBStk=21000

    Location: Banska Bystrica, Slovakia
    Ku-Band: 50°West - 95°East Gibertini OP100 (1,0m)
    Ku-Band: 5°West - 39°East WaveFrontier T90 (0,9m)
    Ku-Band LNB: Avenger PLL321S-2 PLL
    Tuner: TBS 5927&5925&5220, EDISION MIO+ 4K, Mut@nt HD51, Dreambox ONE&900UHD

  • yes,I see this thread before ...DAB/DAB+ is not supported yet by TBS

    https://www.tbsdtv.com/forum/viewtopic.php?f=97&t=25105

    this is a wide spectrum for DVB-T/T2(Terrestrial signal) not DVB-S/S2 (satellites) made by a TBS-card ...may be one day I will try SDR :18:

    wide spectrum for DVB-S/S2 (satellites) uses the the method that you mentioned before with Streamreader.ini file .

    you see Crazycat separate all Terrestrial signal is his Crazyscan2 programe (VHF-low,VHF-high,UHF,FM) but there is not one wide spectrum !

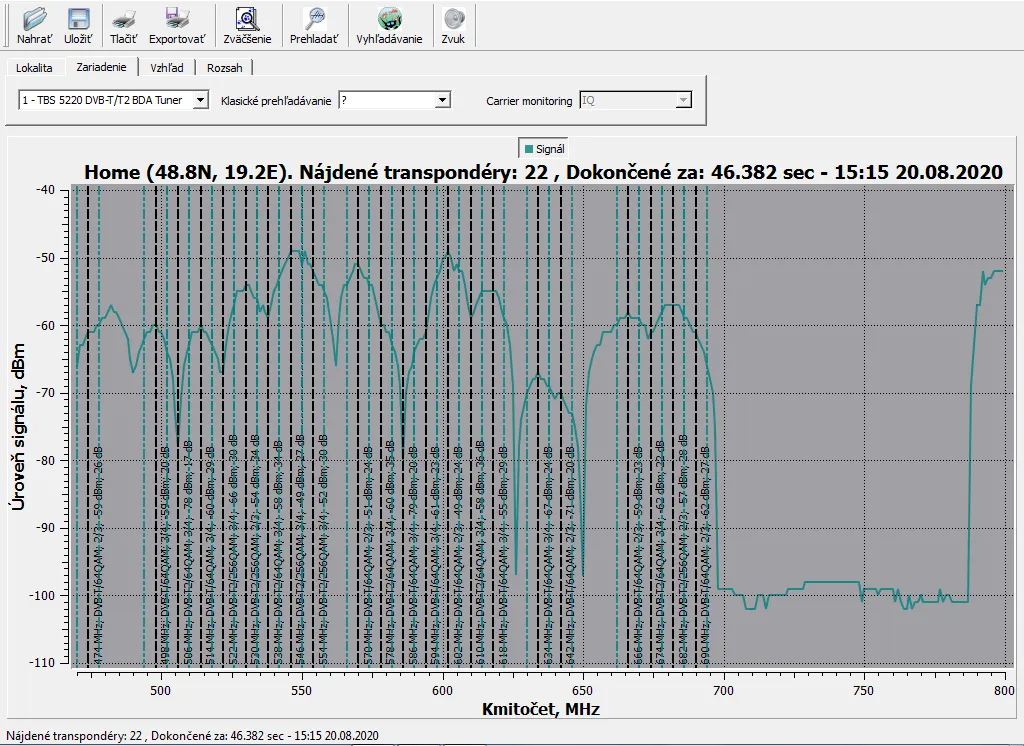

    it is just a simple way to see a wide Terrestrial signal with TBS-card wich support DVB-T signal you can see also a spike of GSM signal-which also not supported with TBS :26. - in this wide spectrum :18:, unfortunately there is no constellation :88:

    there are other Terrestrial signal like 4G/5G (may be 2.4Ghz-3.5Ghz ) which are above 1000MHz -can't be seen with this wide-Terrestrial-with TBS card :88: may can be seen with SDR or HackRF :125:

    there is an other complicated -method with TBS DVB-S/S2-profissional cards tried before By Strannik :70:

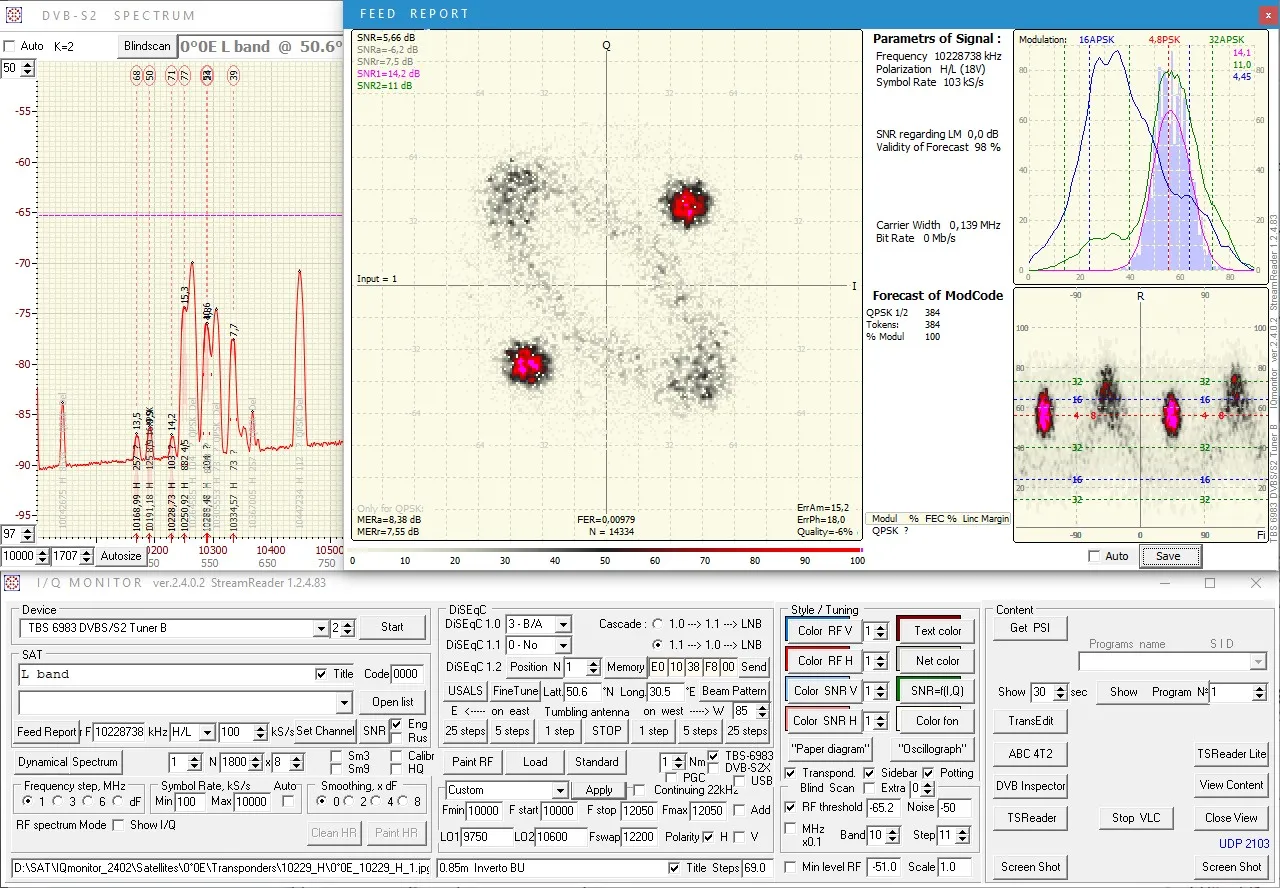

    at least with this complicated method with IQmonitor you can see some strange constellation :73:

    https://filatov-yuri.livejournal.com/8834.html
