37.5°W NSS-10 (incl.)

**qwer** · September 26, 2020 at 11:39 AM Official Post

Lockable today...

4040 H 3428513/18 DVB-S2X 16APSK

4100 V 34285 5/9 DVB-S2X 16APSK_L

4140 V 34285 5/9 DVB-S2X 16APSK_L

4180 V 34285 5/9 DVB-S2X 16APSK_L

/edit: 4000 H and 4040 H already reportet in Data>C>S2X, but I think these are GS

sathunterturkey · September 27, 2020 at 12:28 PM

hello all

ı want to get signal from this satellite

ım from turkey/aydın city, ı have 2m ofset polyester dish and titanium c1w pll c band lnb

can u help me ?with which frequency ı get signal from this satellite

tx.. everyone

**qwer** · September 27, 2020 at 1:38 PM Official Post

Hi sathunterturkey,

you can try a DVB-S2 signal: 3970 V 12890, but notice that your receiver should lock these data-channels (with continuous stream).

Good luck!

qwer

**qwer** · October 10, 2020 at 6:44 PM Official Post

Two locked for the list... and two are not lockable:

3720 H 34200 DVB-S2X 32APSK 32/45 - unlocked

3760 H 34200 DVB-S2X 32APSK 32/45

3800 H 34200 DVB-S2X 32APSK 32/45

3840 H 34200 DVB-S2X 32APSK 32/45 - unlocked

**qwer** · October 25, 2020 at 5:49 PM Official Post

Quote from qwer

4100 V 34285 5/9 DVB-S2X 16APSK_L
4140 V 34285 5/9 DVB-S2X 16APSK_L
4180 V 34285 5/9 DVB-S2X 16APSK_L

These three are still lockable - but not 3740 V, 3780 V nad 3820 V.

**qwer** · November 3, 2020 at 6:00 PM Official Post

Today first one is lockable in vertical low band...

3780 V 34200 DVB-S2X 32APSK 32/45

/edit: second one:

3820 V 34200

/edit2:

3720 H

34200 DVB-S2X 32APSK 32/45

...so two unlocked remain here: 3740 V and 3840 H

**qwer** · November 23, 2020 at 2:55 PM Official Post

One more new appeared (complete linear scan with TBS 6903):

3895 V 25600 and DVB-S2X 16APSK 7/9, Single; MIS 1

**qwer** · January 30, 2021 at 5:55 PM Official Post

Sorry for my "crazy" CS scan on TBS 6903X - but all are lockable at this time.

New LOCKABLE (for me):

3740 V 34200

3840 H 34200

3875 H 25600

**qwer** · February 17, 2021 at 8:21 AM Official Post

February scan... ignore spectrum from TBS6903X... ...still all (9x) S2X frequencies lockable.

flie · March 21, 2021 at 4:19 PM

these DVB-S2X Transponders can't be locked with TBS5521

maybe locked only with TBSX

3718,H,31660

3738,V,34200

3758,H,34200

3778,V,34200

3798,H,34200

3818,V,34200

3838,H,34200

3874,H,25600

3894,V,25225

3968,V,12890

these are DVB-S2 and DVB-S2X at the same time ...locked with both TBS5521 and TBS5927

all continuous-singles CCM:

3998,H,34280,14,2 ;12.9 (15.25) dB; 15:30 21/3/2021

4025,H,9999,14,2 ;11.6 (13.95) dB; 15:30 21/3/2021

4098,V,34280,14,2 ;12.6 (14.95) dB; 15:30 21/3/2021

4118,H,34280,14,2 ;6.2 (8.55) dB; 15:30 21/3/2021

4138,V,34280,14,2 ;11.7 (14.05) dB; 15:30 21/3/2021

Note : my scan is always -03Mhz and also with opposite polarity in Liner_scan !

**qwer** · August 18, 2021 at 9:14 AM Official Post

Just another "scan" after a longer time, but nothing new appeared.

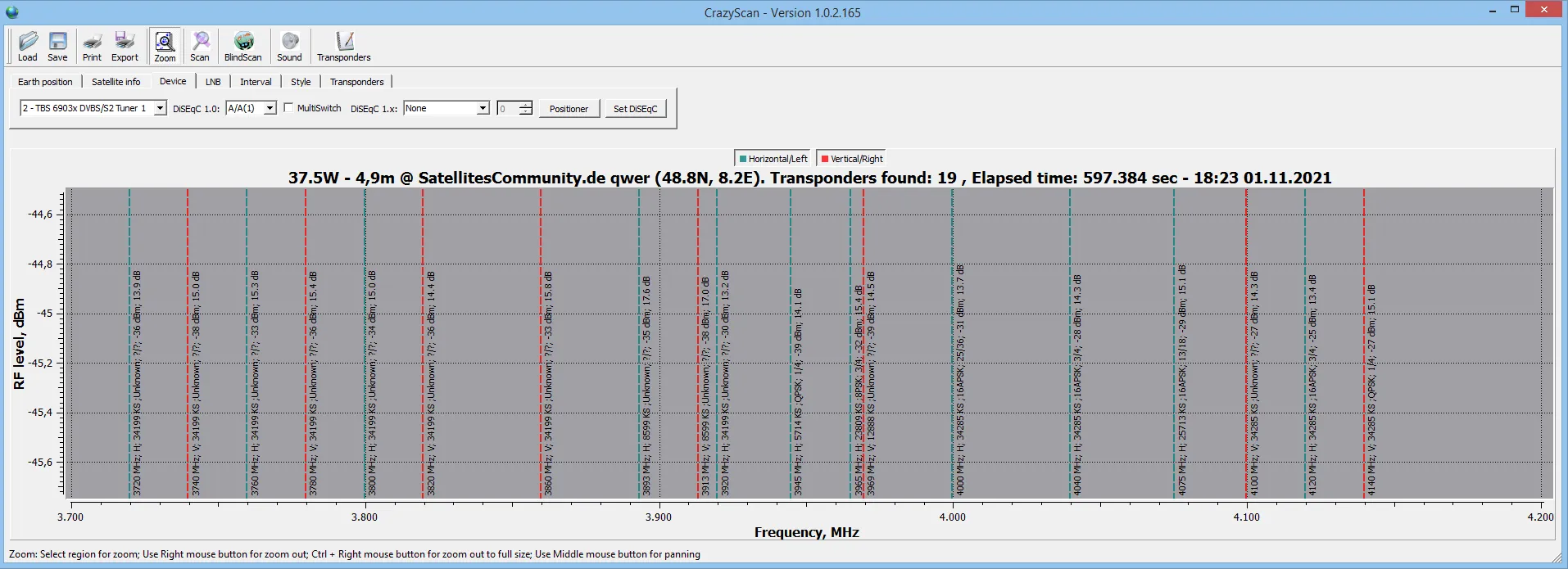

**qwer** · November 1, 2021 at 6:59 PM Official Post

One for the list:

4075 H 25713 and 16APSK 13/18

Not all can be found via BS... for spectrum, click!

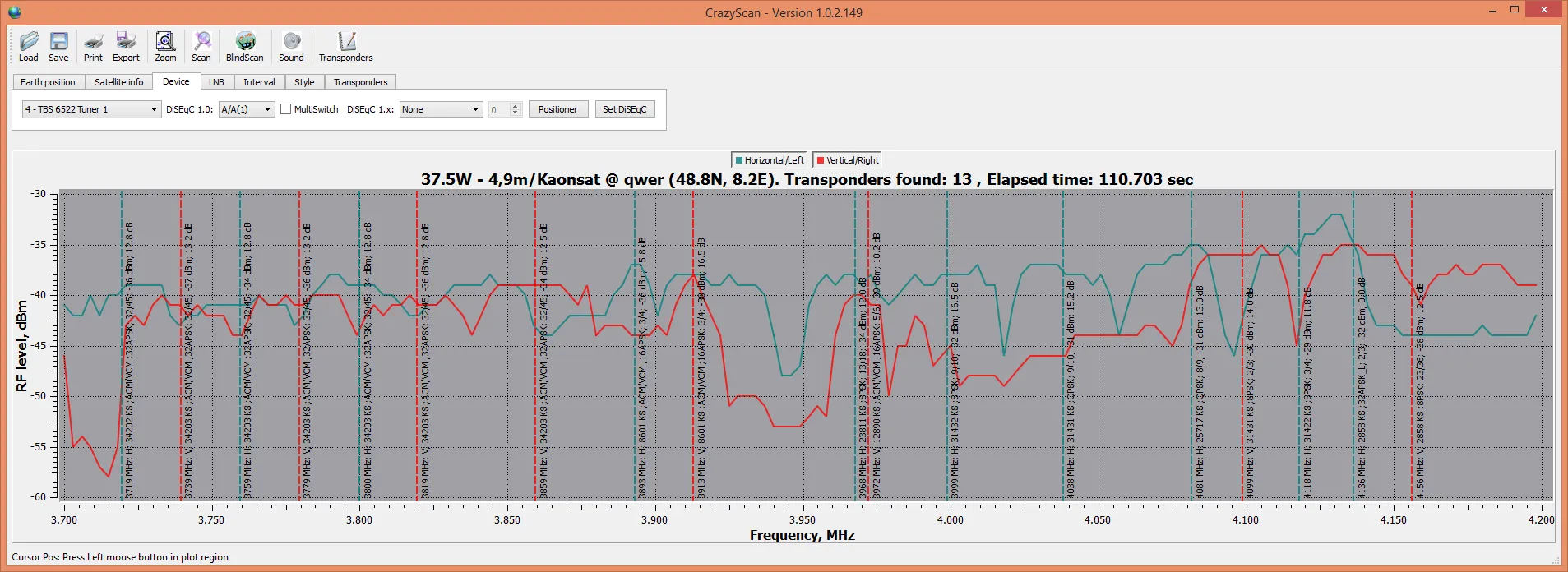

**qwer** · April 30, 2022 at 11:18 AM Official Post

Just a try with TBS 6522 (for S2 scan, click!) - most of them already listed, but I can get some more paramater, esp. most using 32APSK 32/45 in Packetized MIS 1.

3720 H 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3740 V 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3760 H 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3780 V 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3800 H 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3820 V 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

3860 V 34200 DVB-S2X 32APSK 32/45 Packetized MIS 1

4136 H 2858 DVB-S2X 16APSK 25/36 Packetized Single

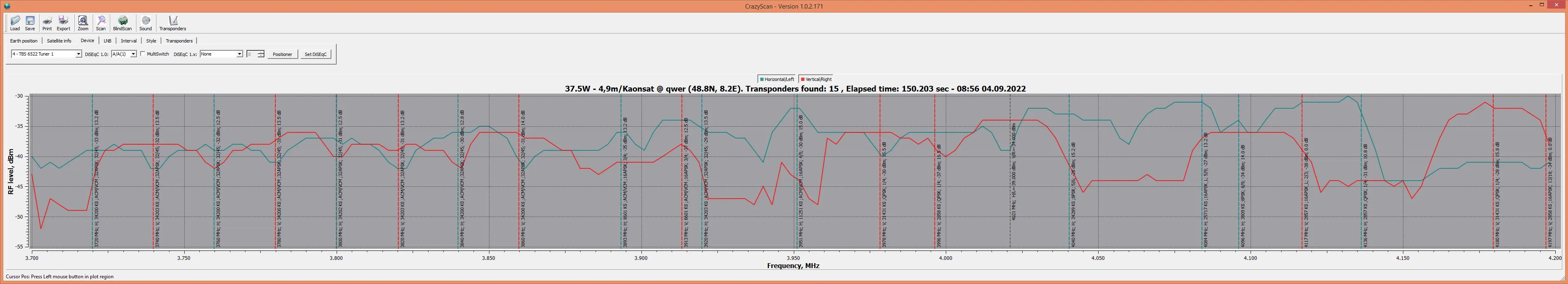

**qwer** · September 4, 2022 at 9:56 AM

Scan, using TBS 6522 - not all can be locked yet (too lazy to try TBS 6903X).

Some changes in S2X - diff. Modcodes:

3920 H 34200 - new

4197 V 2858 - now also lockable in S2X

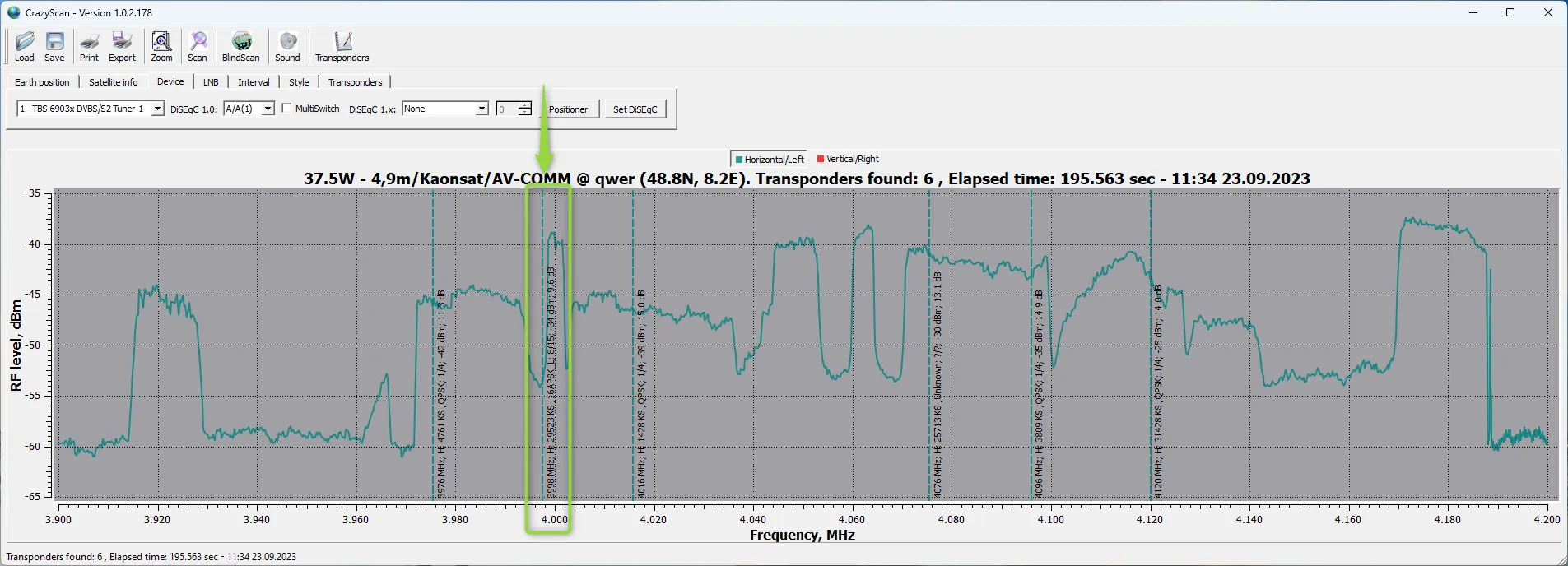

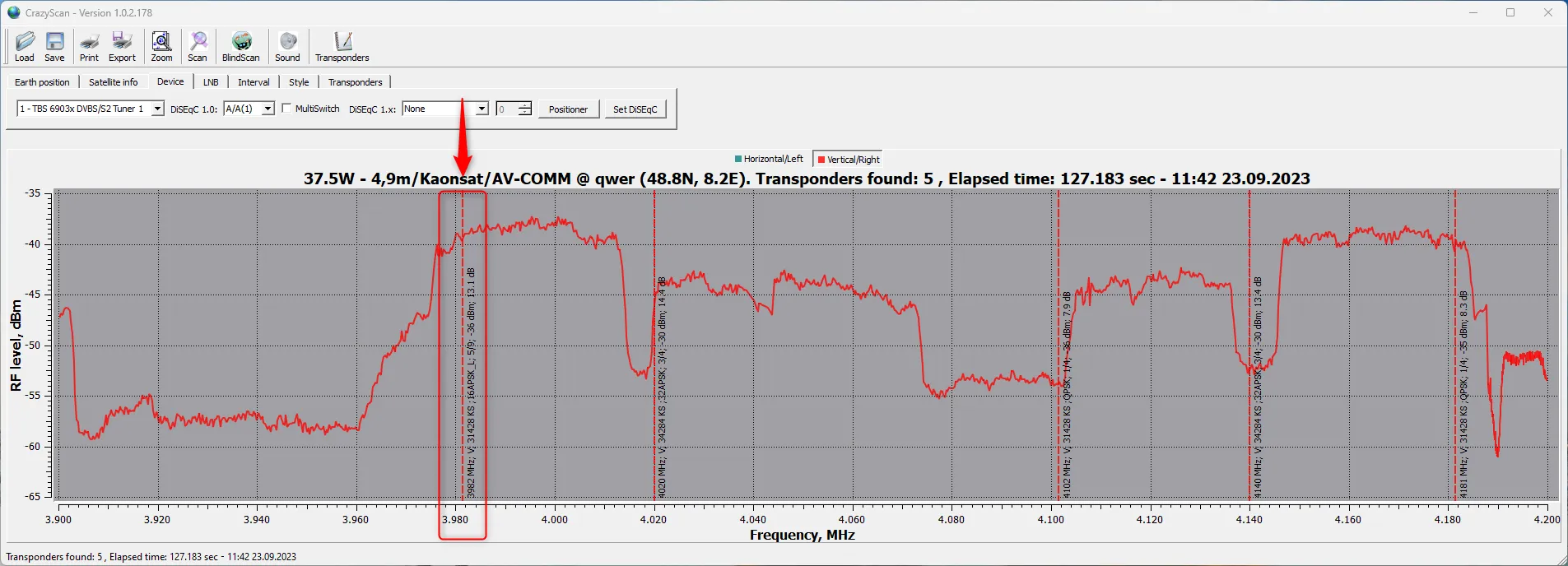

**qwer** · September 23, 2023 at 11:55 AM

Lockable in S2X, using TBS 6903X:

3982 V 31428

3998 H 29523

PS: Inclination at scan aprox 2.0°North.

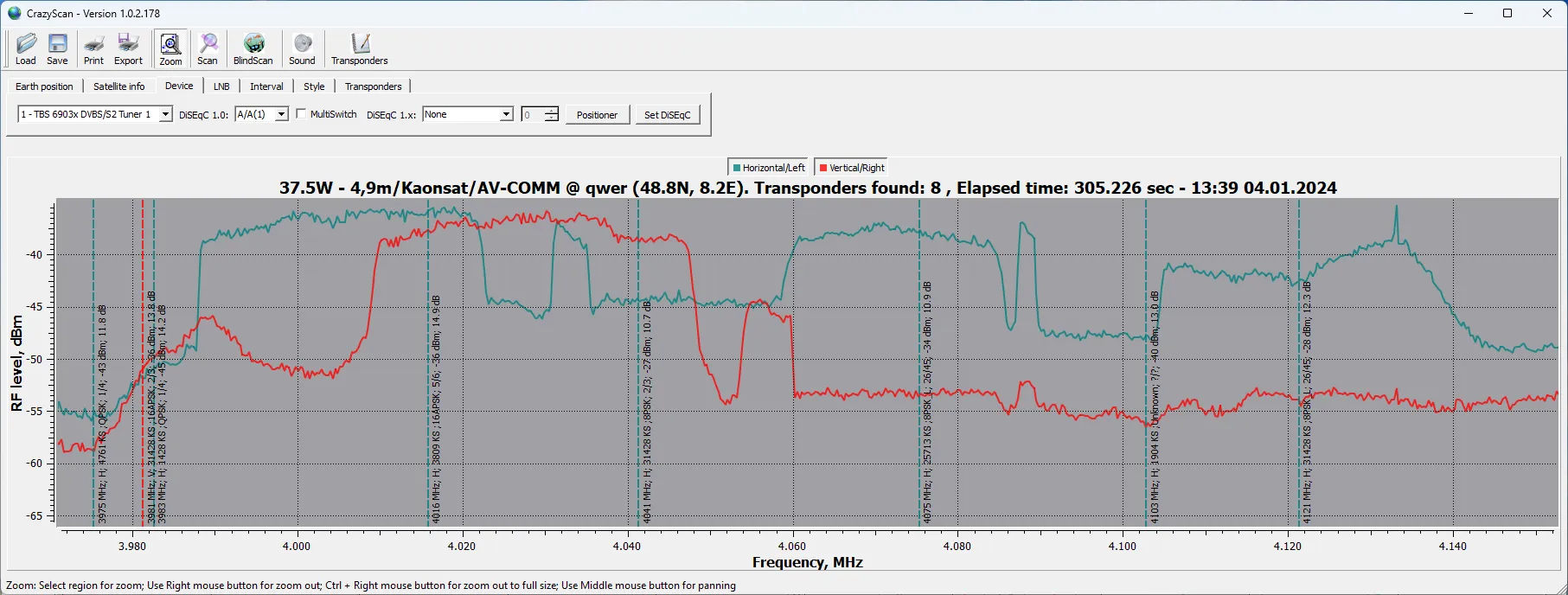

**qwer** · January 4, 2024 at 2:02 PM

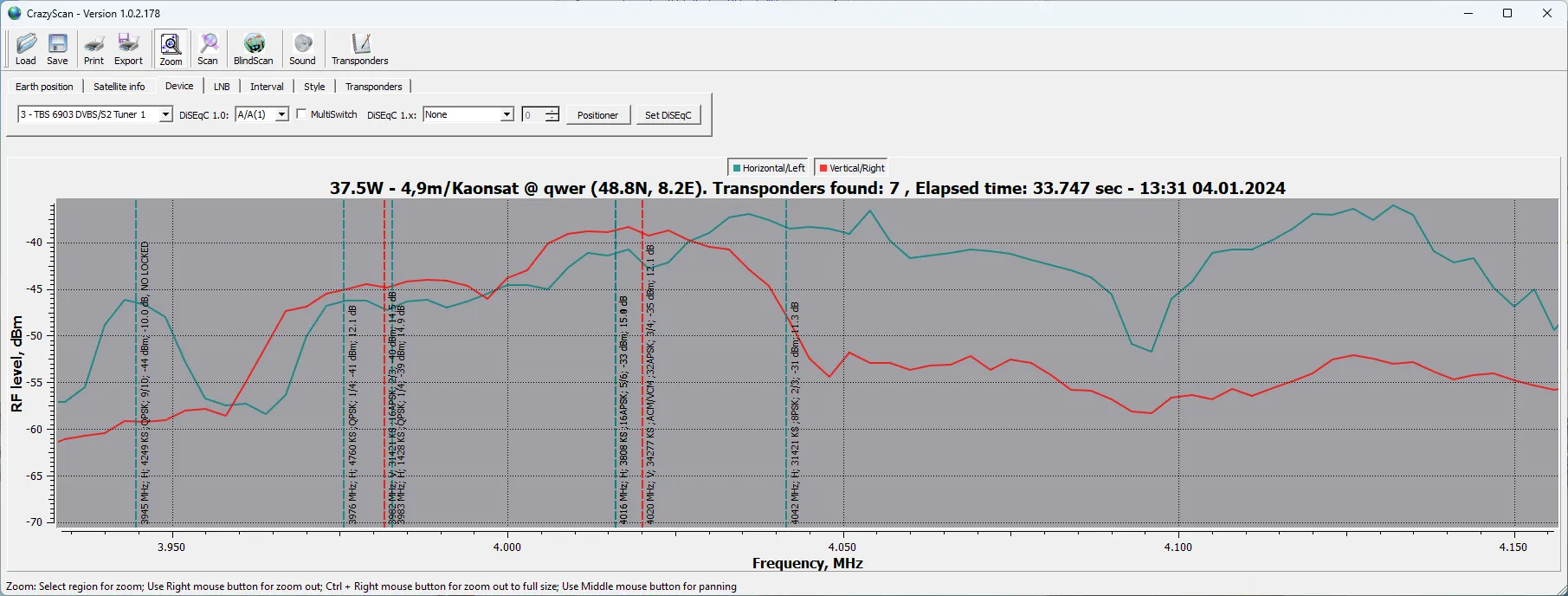

Todays S2X check...

4016 H 3809 - new/changed Mode and SR - also lockable in S2

4103 H 1904 - new

4121 H 31428 - locked also in S2X today

4075 H 25713

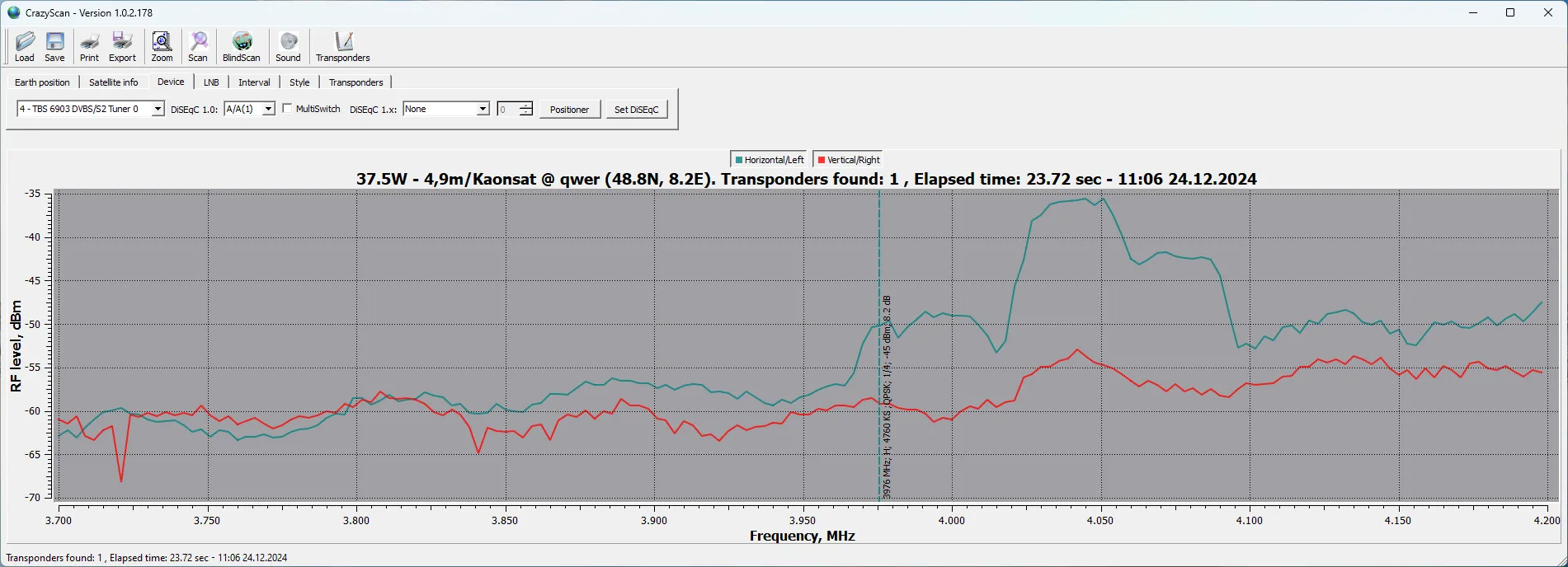

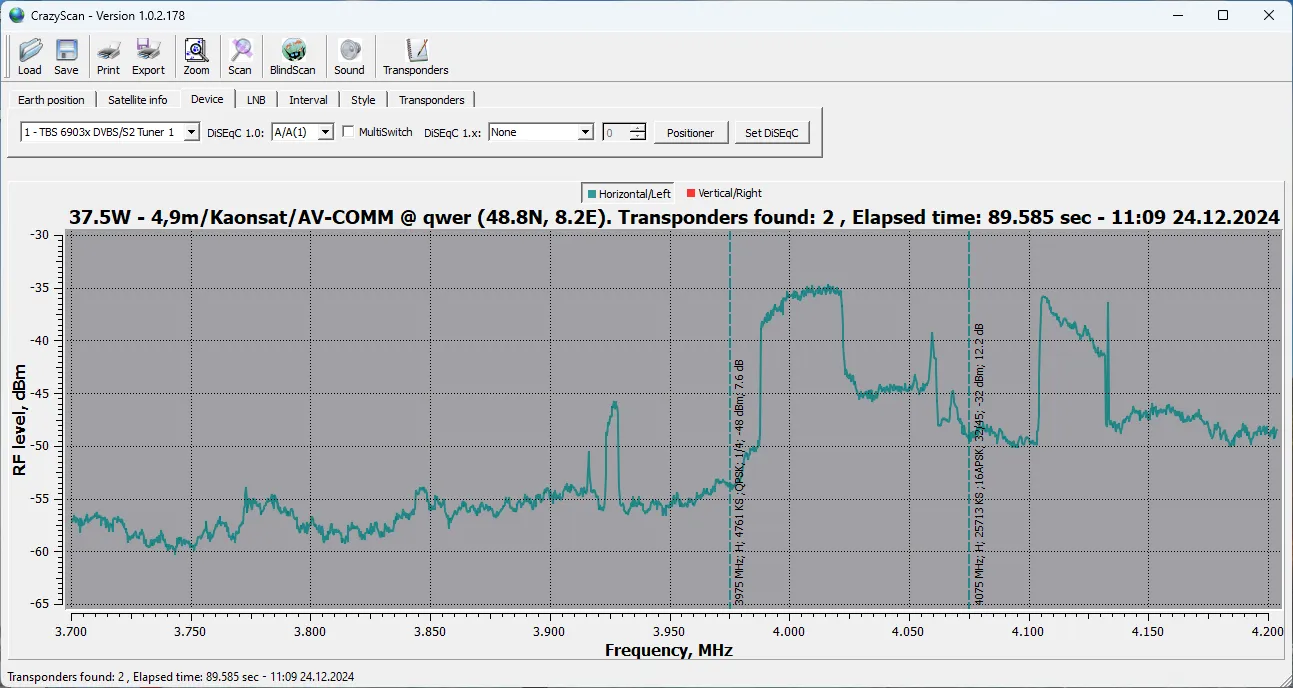

**qwer** · December 24, 2024 at 11:11 AM

Quote from qwer

4075 H 25713

...no changes here... inclination at scan time 3.90° north

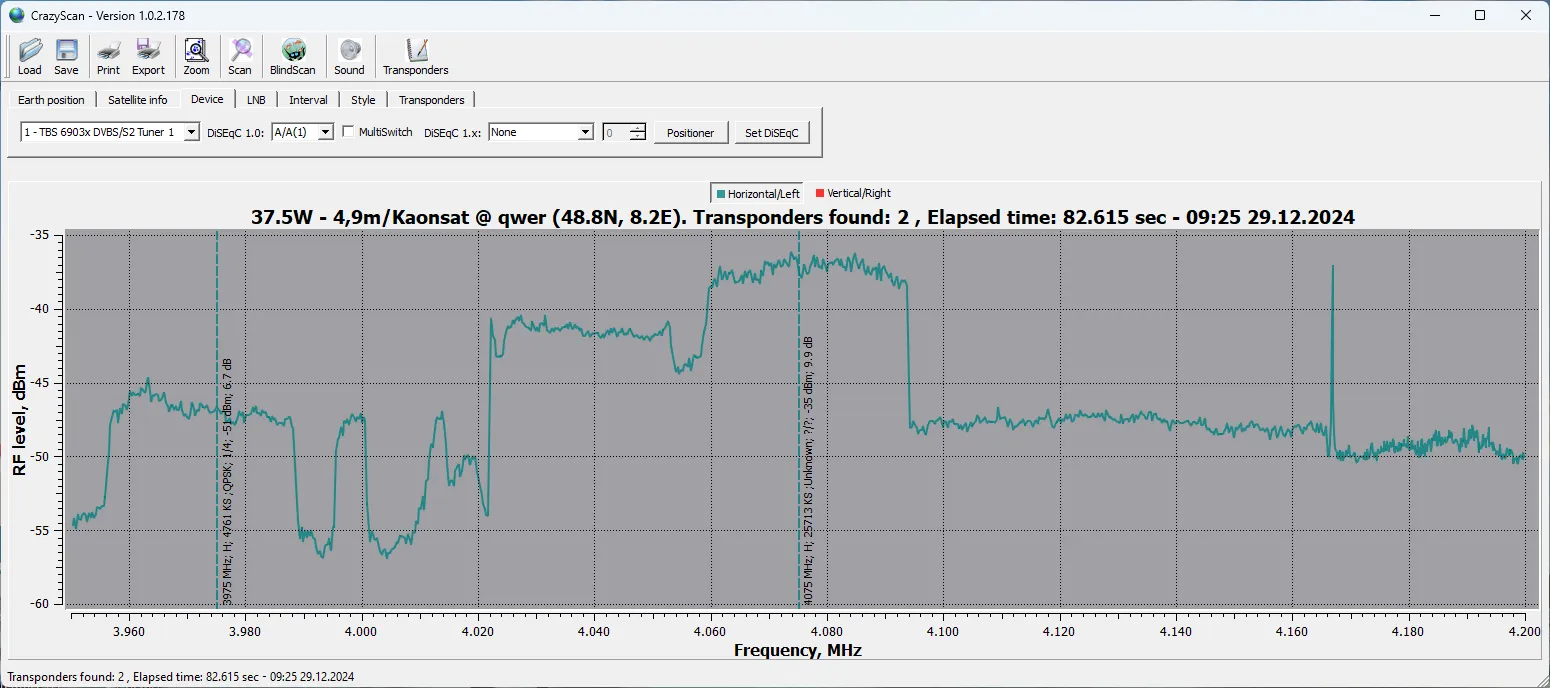

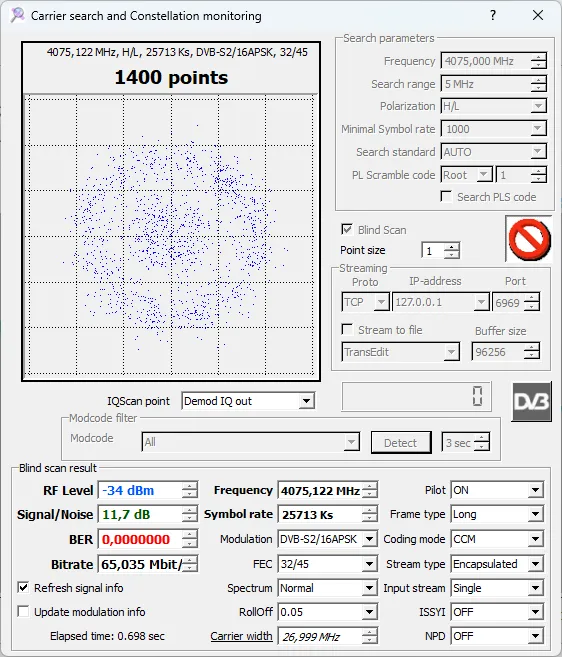

**qwer** · December 29, 2024 at 9:29 AM

Quote from qwer

4075 H 25713

... one in S2/S2X is still on... inclination at scan time 4.81° north

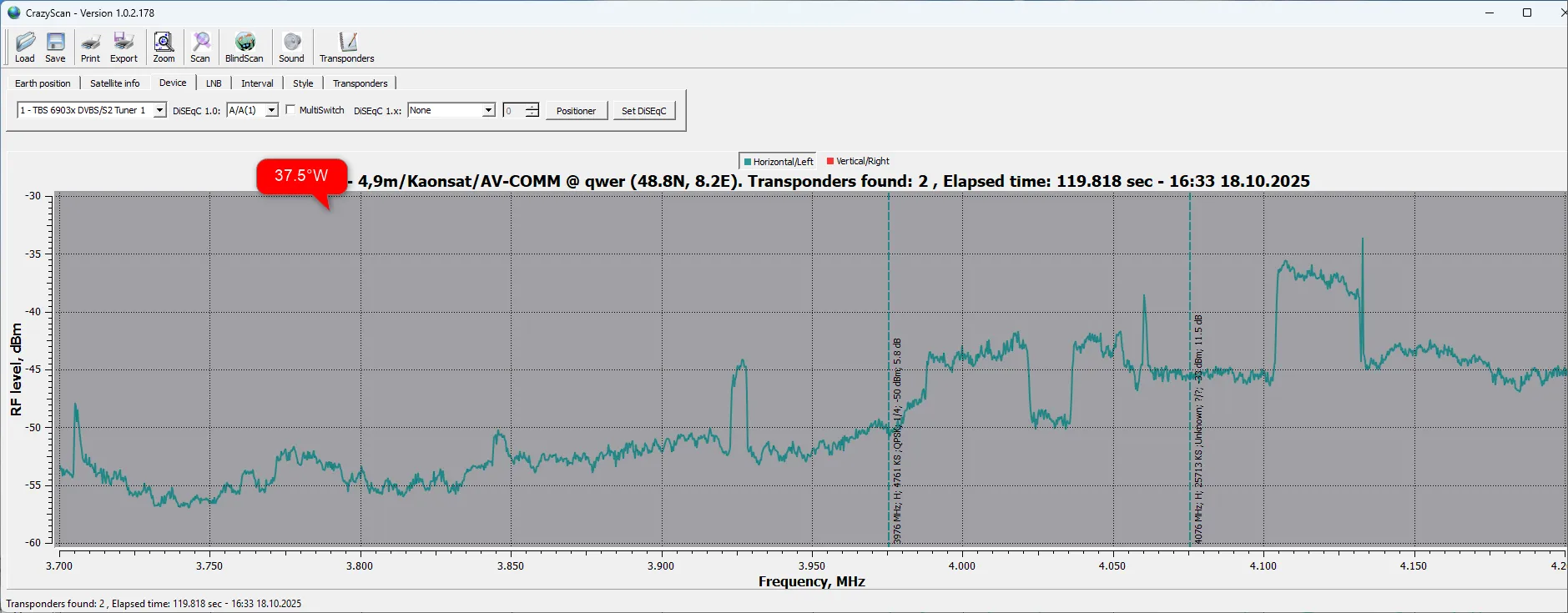

**qwer** · October 18, 2025 at 4:34 PM

No changes here..... inclination at scan time 4.24° north

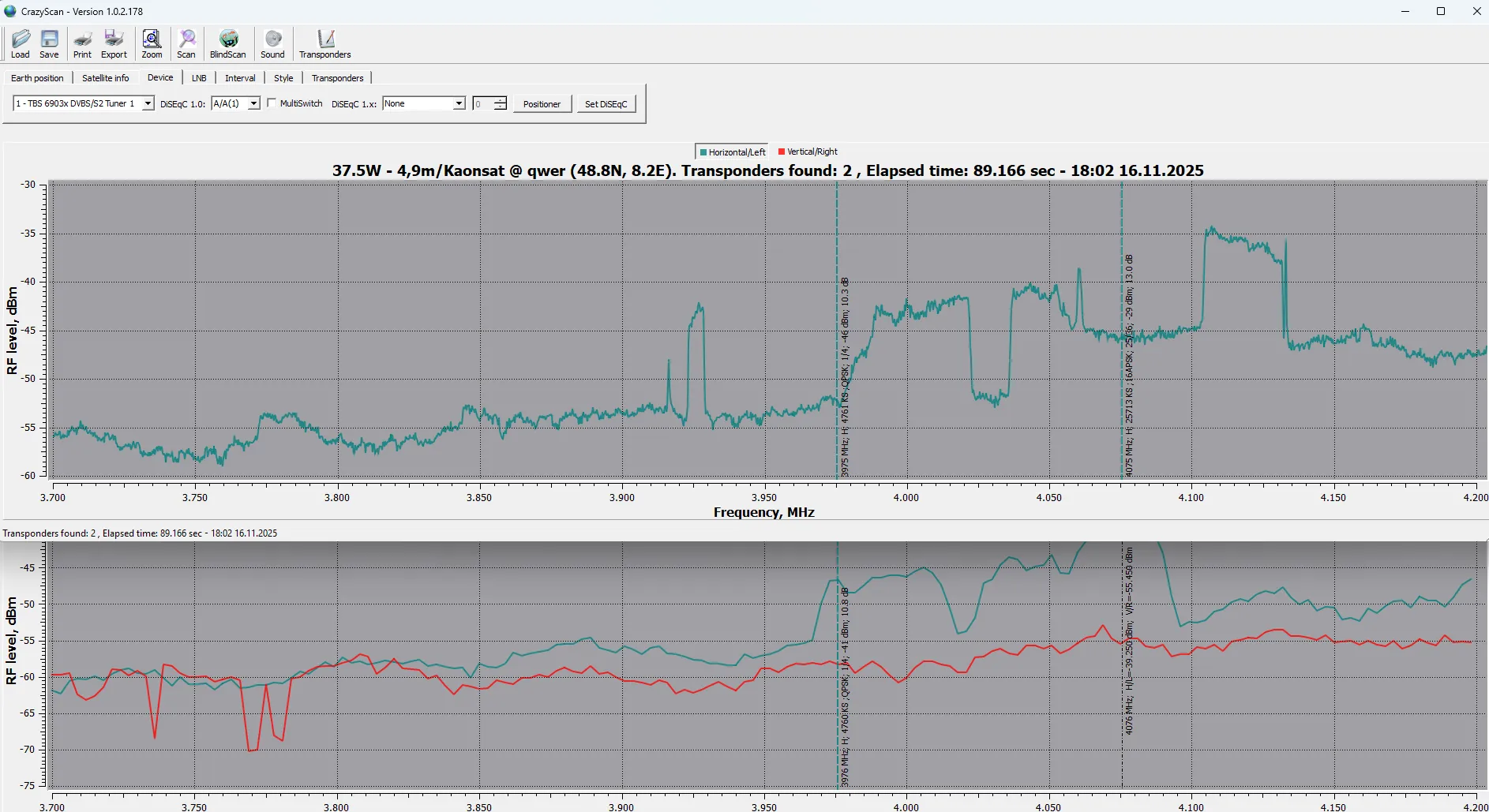

**qwer** · November 16, 2025 at 6:03 PM

No changes here... inclination at scan time 2.10° south
