22.0°W SES-4

1st Official Post
    • Official Post

    Two locks in DVB-S2X.

    3868 L 28570 DVB-S2X and 8PSK_L 5/9; 16APSK 25/36; 16APSK 32/45;

    4173 L 10475 DVB-S2X QPSK 9/20

    • Official Post

    Both are still on:

    3868 L 28570 and

    4173 L 10475

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Quote from qwer

    3868 L 28570 and

    4173 L 10475

    my signal to day with TBS5521:

    3866 L 28574 DVB-S2X QPSK 2/3 RollOff 0.15 .....5.8dB

    4171 L 10475 DVB-S2X QPSK 3/5 RollOff 0.05 .....3.8dB

    and also :

    4173 R 10000 DVB-S2X QPSK 3/4 RollOff 0.05 .....6.5dB

    Images

    My equipment

    Ku: 0.90m (Géant perforated dish) 63°West -70.5°East

    Ku: 1.80m OS

    C: 1.80m PF

    Ku: 1.21m @ 7°w

    Ku-Band single LNBs: Televes UNI 7475,Inverto Black ultra IDLB-SINL40
    Ka-Band LNB:TRIAX twin-ka TKT001
    C-Band LNB:Panorama ER861

    ku-extended LNBs: Bwei 9Ghz & 12.8Ghz

    C-extended LNB: Bwei 5750Mhz

    Tuner: TBS5927,TBS5520SE,TBS6903X,Skystar usb HD,GTmedia-V8-finder

    Location: 22.8N,5.5E-Algeria

    • Official Post

    Probably in S2X: 3940 L 36094

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Just an S2X update after several years...

    3931 L 51430
    3969 L 8100
    3994 L 9014

    No GS streams in S2X lockable in circular right...

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Only lockable via TBS 6903X... so I assume they are in S2X...
    3991 R 51430

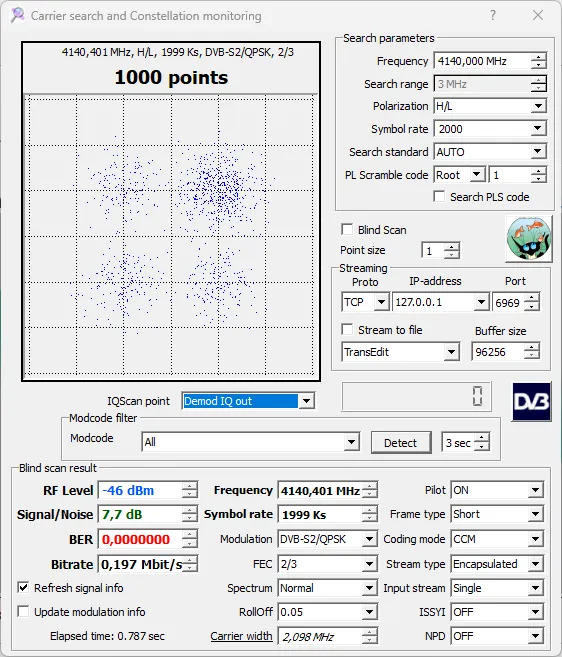

    4140 L 2000

    PS: others are still on...
    3931 L 51430
    3969 L 8100
    3994 L 9014
