08.0°W Eutelsat 8 West B

  • Starting new DVB-S2X toppic here...

    4016 R 18094 and DVB-S2X 16APSK 25/36 / 16APSK_L 5/9 - (also in DVB-S2)

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    • Official Post

    Appeared also in S2X now: 4012 R 25713

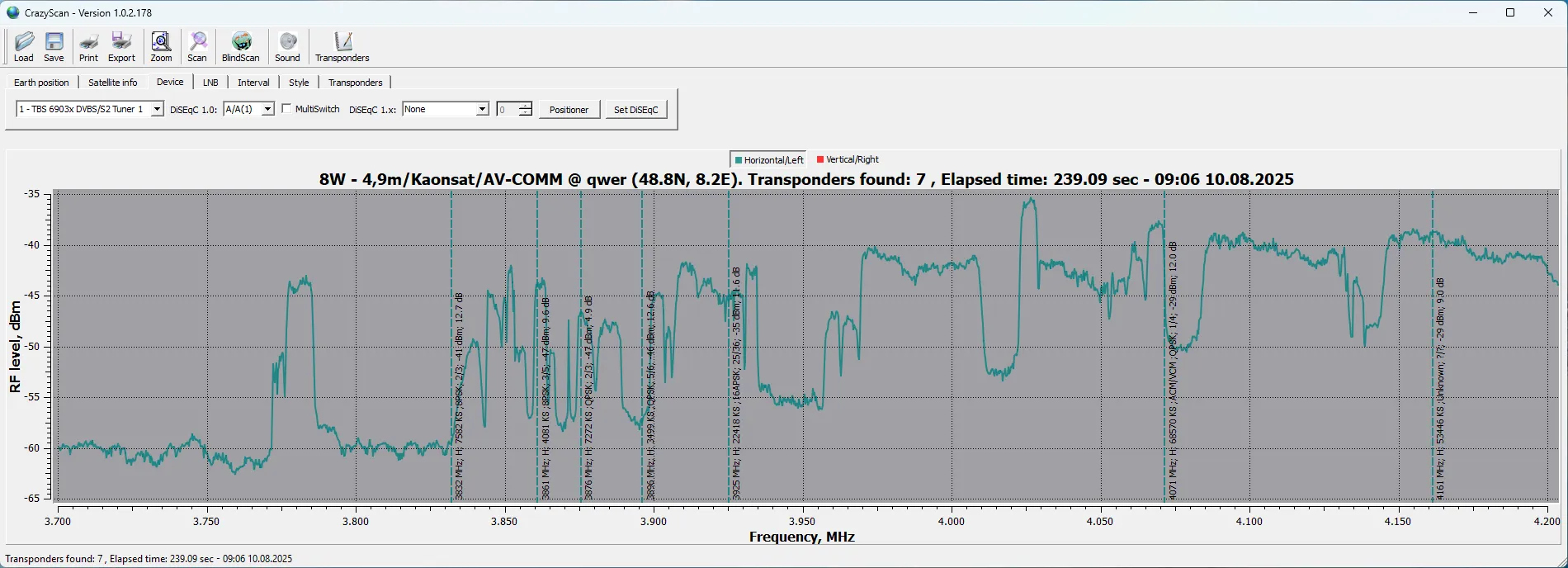

    Spectrum with TBS 6903.

  • Some changes here:

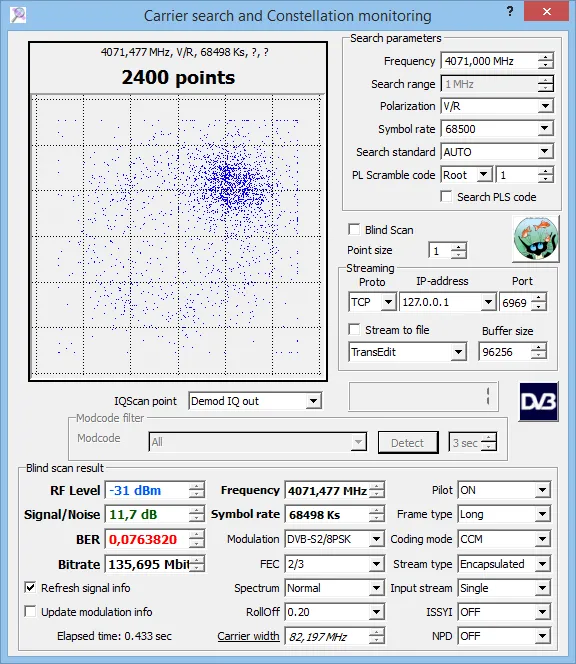

    4071 R 68500

    4153 R 68500

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • Currently only one active S2X frequency (also in S2) - new, using TBS 6903X:

    3925 L 10475 - diff. Modcodes

  • Probably new here:

    3755 L 30000 on diff. Modcodes

  • ...one more in S2X:

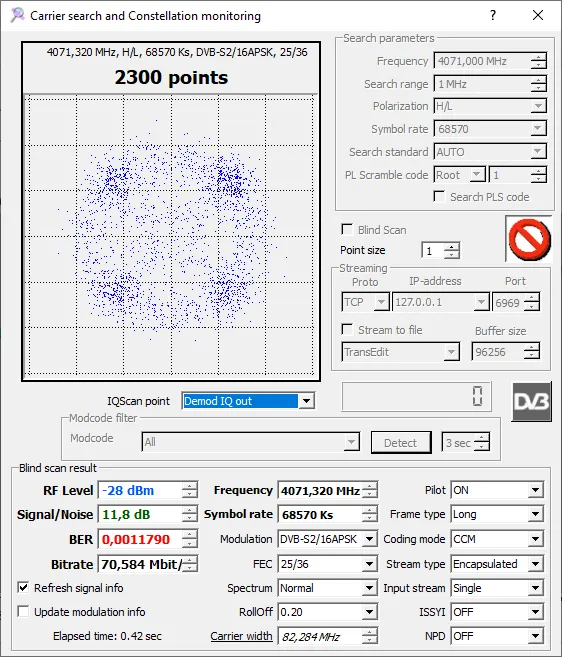

    4071 L 68570

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • Probably new here:

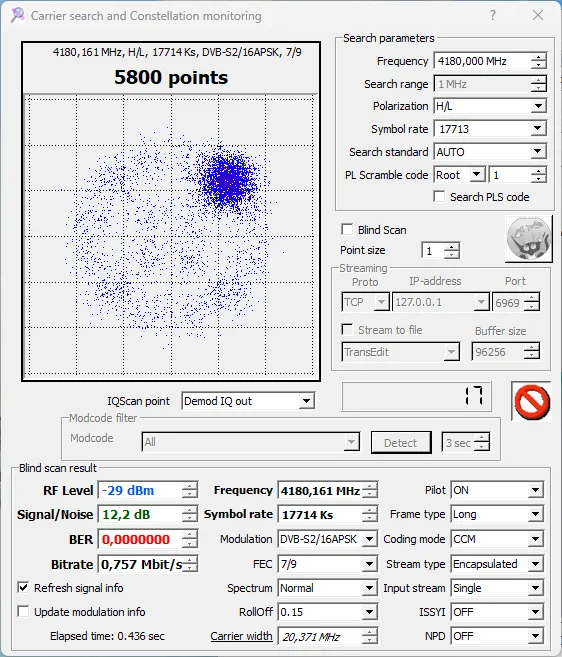

    4180 L 17710 (lockable also via TBS-6903 in S2)

    PS:

    3755 L 30000 has left

    3925 L 10475 still active and lockable

    4071 L 68570 still active and lockable

    And in circular right scan - new for the list:

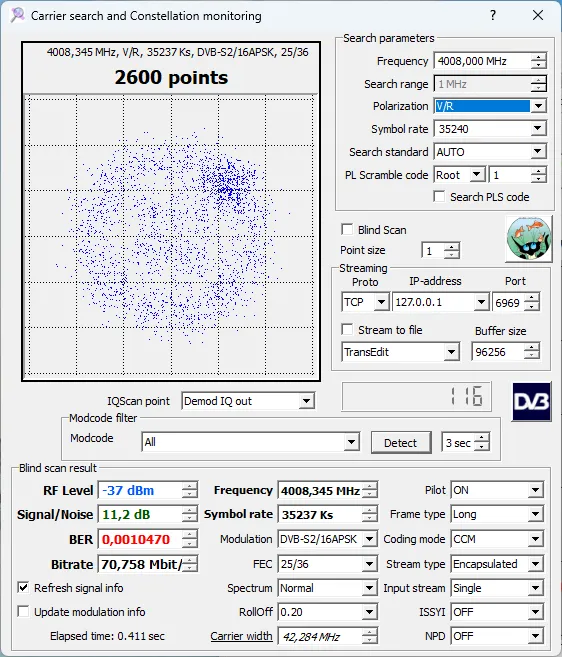

    4008 R 35240

    PS:

    4071 R 68500 has left

    4153 R 68500 has left

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • Four locks on TBS 6903X from this position:

    3925 L 10475

    4008 R 35240

    4071 L 68570

    4183 L 12000 - new for the list (also in S2)

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

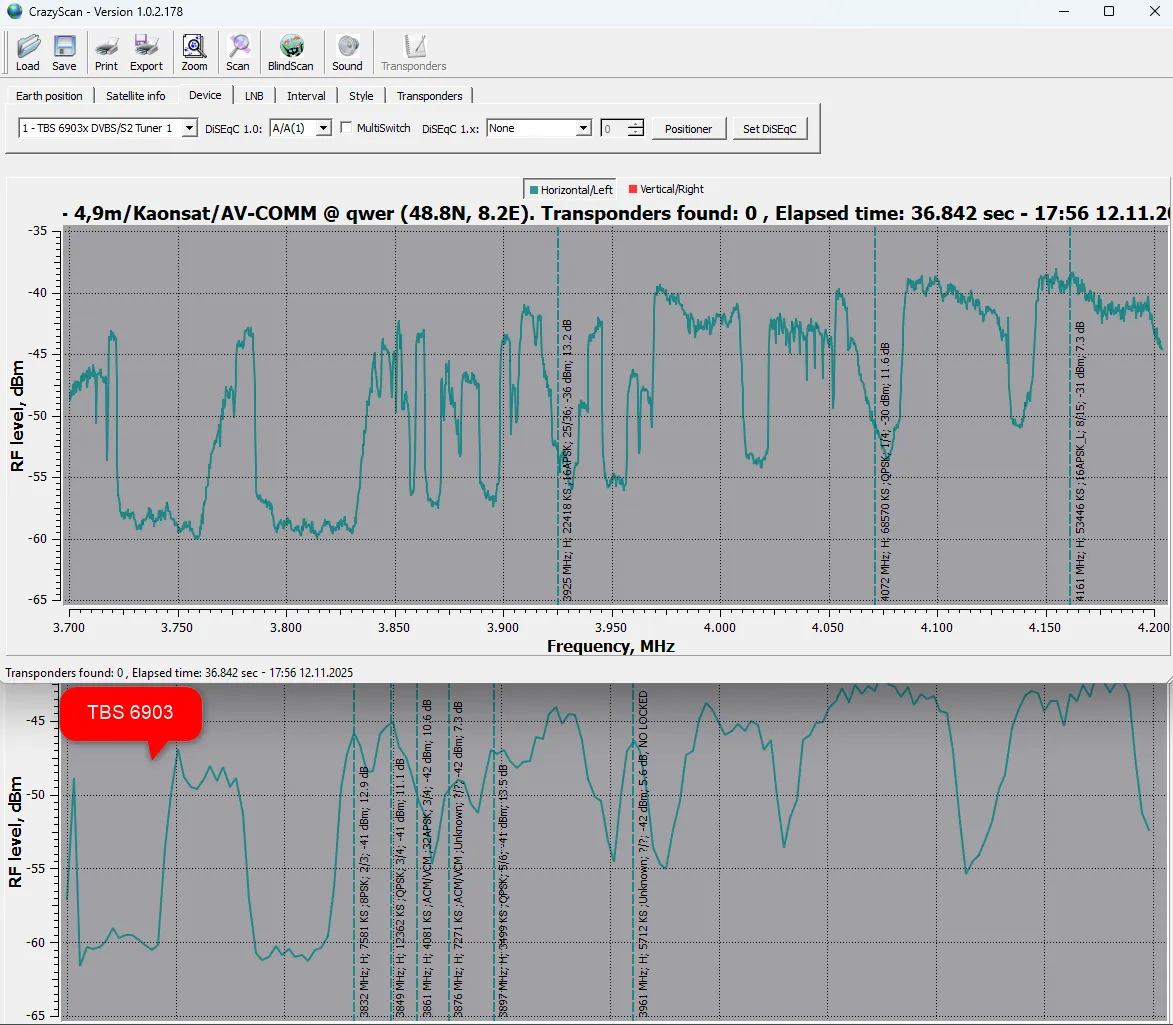

  • Just an S2X update ... after several months...

    3925 L 22420 - new for the list
    4071 L 68570 (already listed)
    4161 L 53450 - new for the list

    PS: There´s another "big TP" at approx 4000 L - but nothing lockable...

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • There are more to obtain for 3925 L I think

    it doesn't match for each new deep scan ...

    the 6522 is not the most appropriate card for such modulation type...

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Nothing new lockable (S2X) on TBS 6903X.
    Also trying to find a VPid on 3925 L - no success.

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

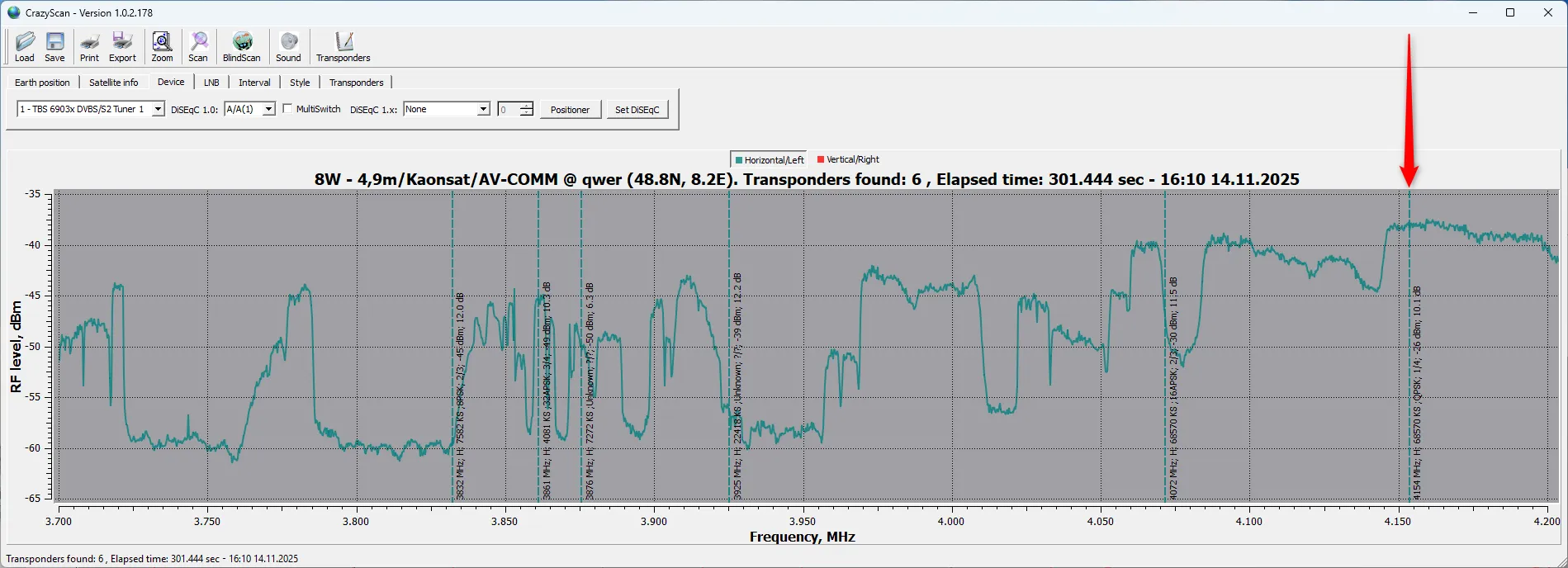

  • New for the list...
    4161 L 68570

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • New for the GS list...using also S2 (TS attached)
    4134 L 30285

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup
