30.9°E Türksat 5A

milan58 · June 21, 2021 at 5:10 PM

These are the first signals in my country to appear from Türksat 5A:

1=11586,V,2799,34,8PSK- LBC Internationa, 11.4dB

2=11588,V,1299,56,8PSK- LBCI AM, 12.2 dB

3=11597,V,2499,56,8PSK- 6.6 dB no lock

**qwer** · June 21, 2021 at 5:24 PM Official Post

Starting a new toppic, thanks milan58.

These ones are not lockable from here.

milan58 · June 21, 2021 at 5:48 PM

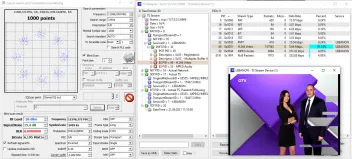

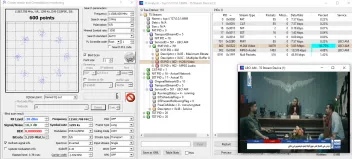

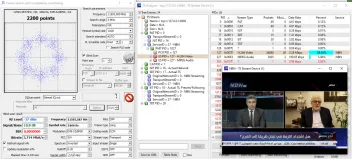

I adjusted the antenna a little better and the signal intensified:

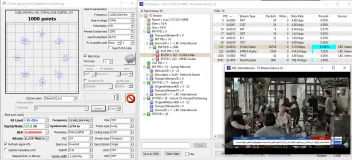

1=11586,V,2799,34,8PSK- LBC Internationa, 12.7 dB

2=11588,V,1299,56,8PSK- LBCI AM, 14.7 dB

3=11597,V,2499,56,8PSK- LEBANON 9.7 dB

**satesco** · June 21, 2021 at 5:52 PM

Thanks milan58 Signal very strong in my area on these first transponders activated on Turksat 5.

milan58 · June 21, 2021 at 6:19 PM

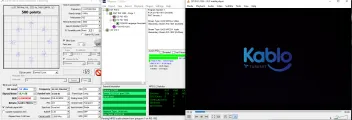

They've turned on this frequency, it can be locked but the signal varies a lot.

11583,V,2142,34,QPSK- CH2 SD, 4.4dB

**satesco** · June 21, 2021 at 6:31 PM

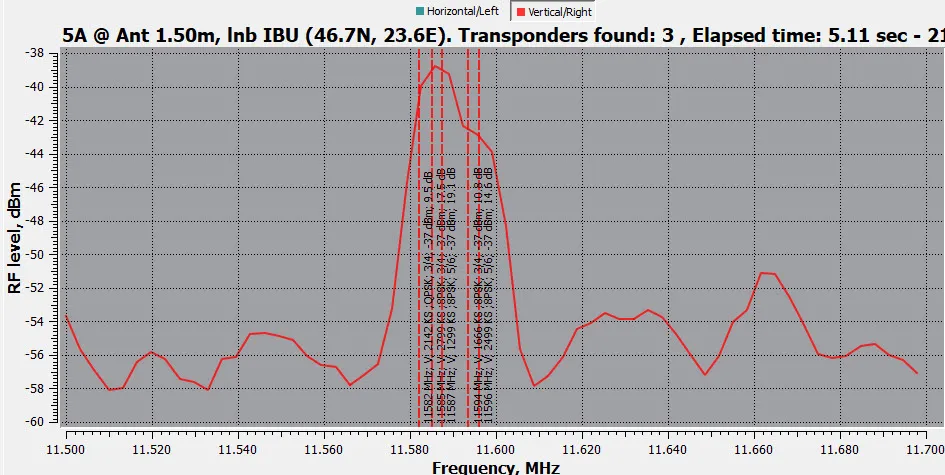

I've checked the signal now.It's stable,even stronger.

**qwer** · June 21, 2021 at 8:10 PM Official Post

A deeper look on these frequencies - already discussed in satellites.co.uk board earlier - it looks, according same content and paramter, like a "signal reflection" (+500MHz) from Arabsat 6A.

**satesco** · June 21, 2021 at 8:14 PM

Turns out I was wrong about Turksat 5A. Transponders found appear to be on Arabsat 6A.

I'm sorry I was wrong,but I'm glad Arabsat 6A is coming in in my area,But I don't know how long it will last.

milan58 · June 21, 2021 at 8:26 PM

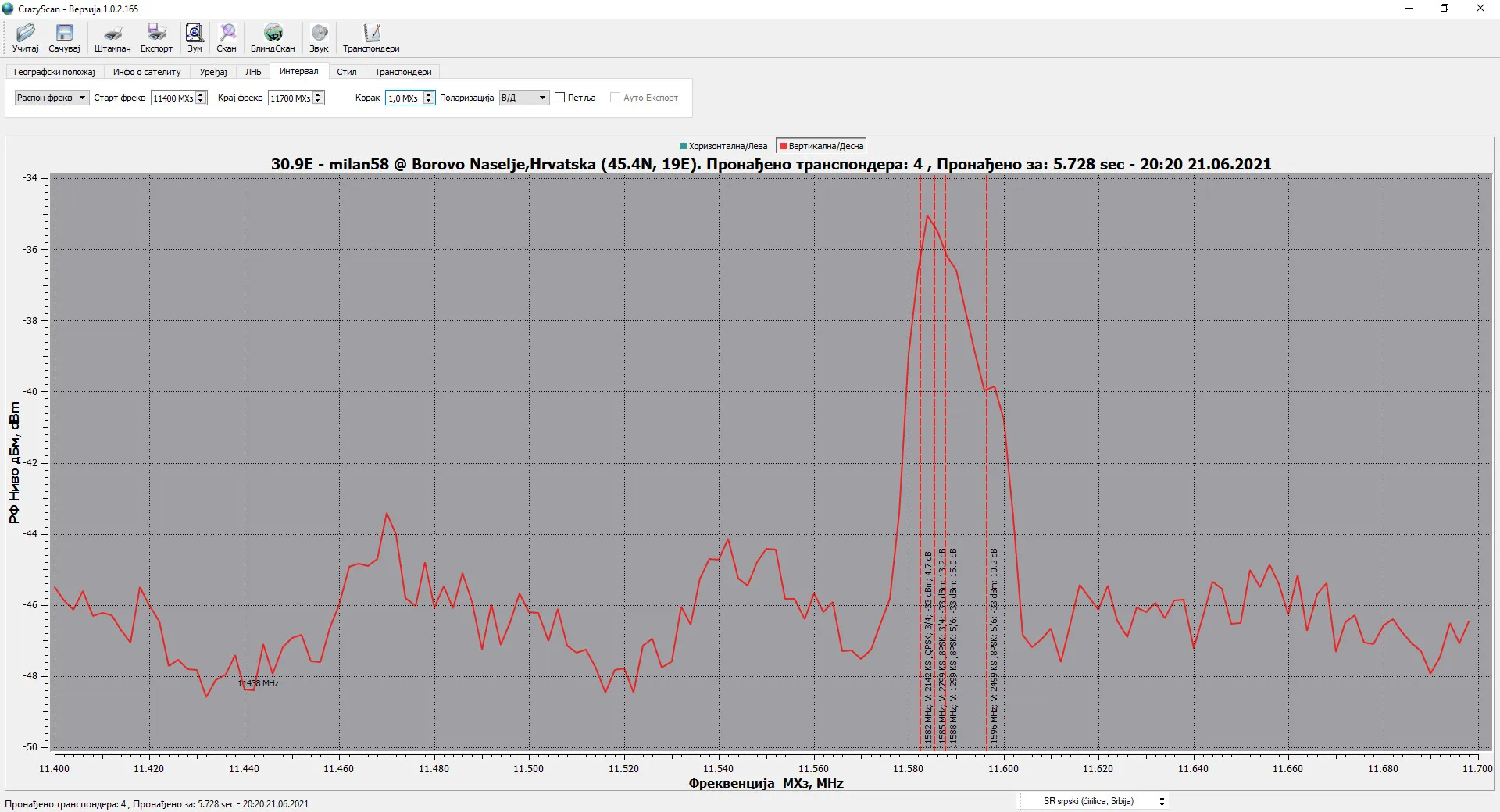

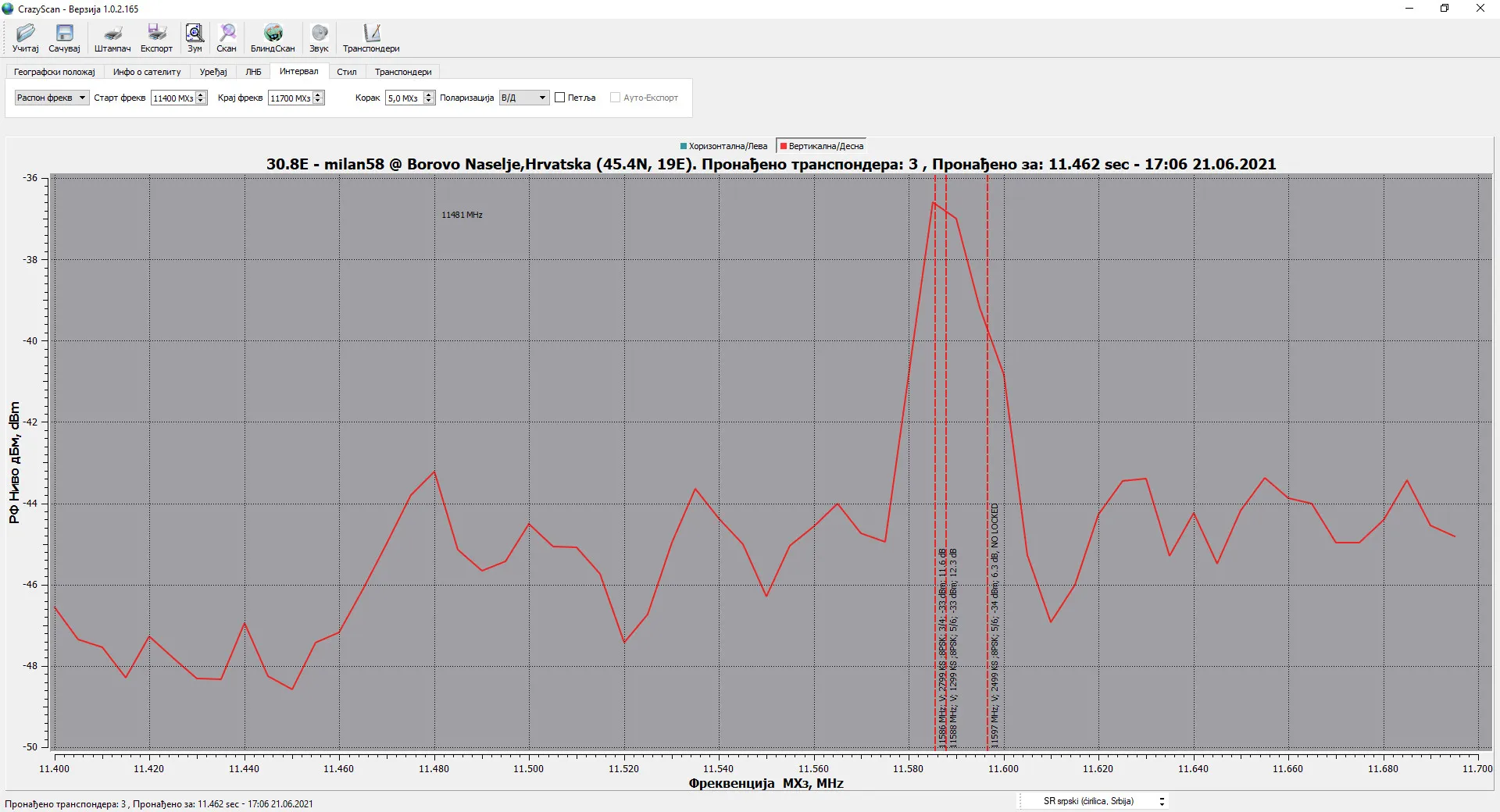

satesco see have four frequencies

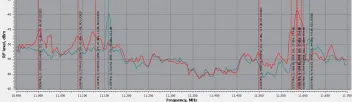

**satesco** · June 21, 2021 at 8:34 PM

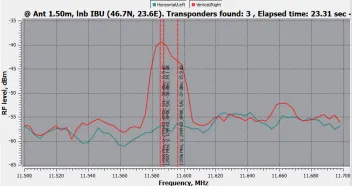

Thanks milan58, I've got them on the spectrum too,with one extra:11594 V,11666,3/4,8PSK-NBN

EnoSat · June 22, 2021 at 5:05 PM

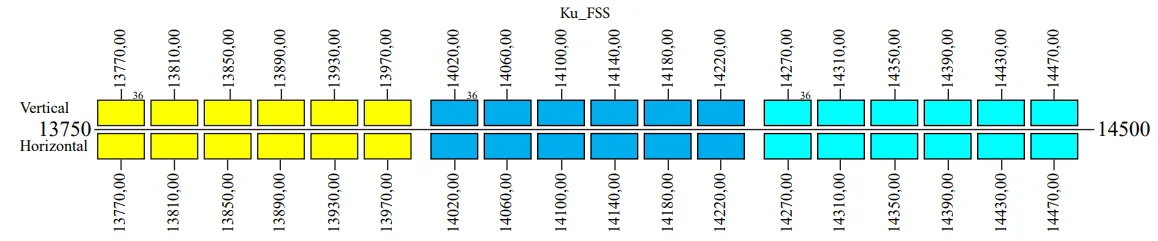

Or Uplink (14.140 GHz) for Arabsat 6A after activated same Uplink on Turksat 5A.

milan58 · June 24, 2021 at 11:22 AM

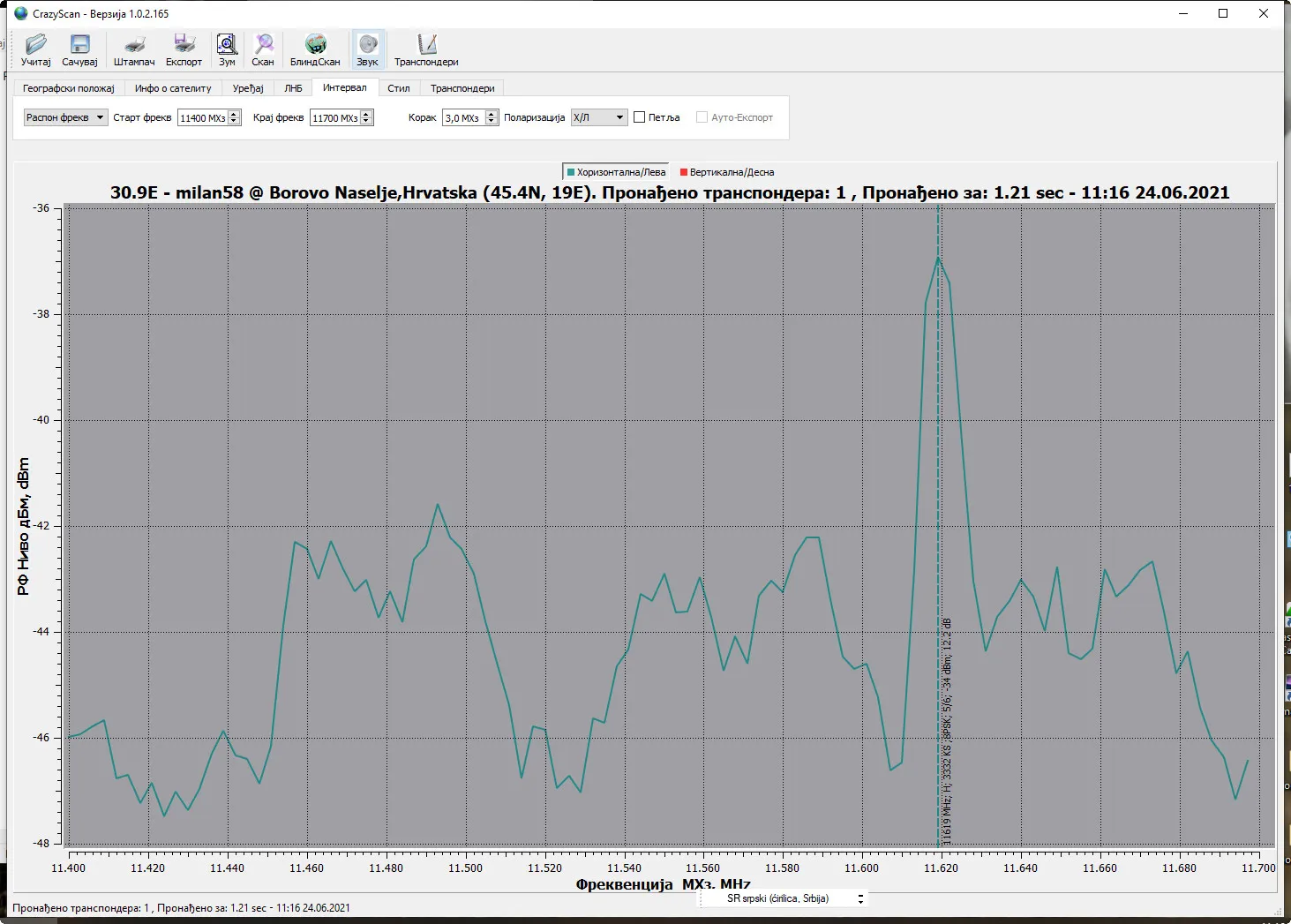

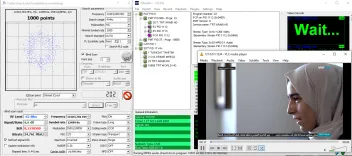

The first frequency in horizontal polarization. Most likely this is a feed.

11619,H,3332,56,8PSK- First_service 12.2dB

milan58 · June 25, 2021 at 5:50 PM

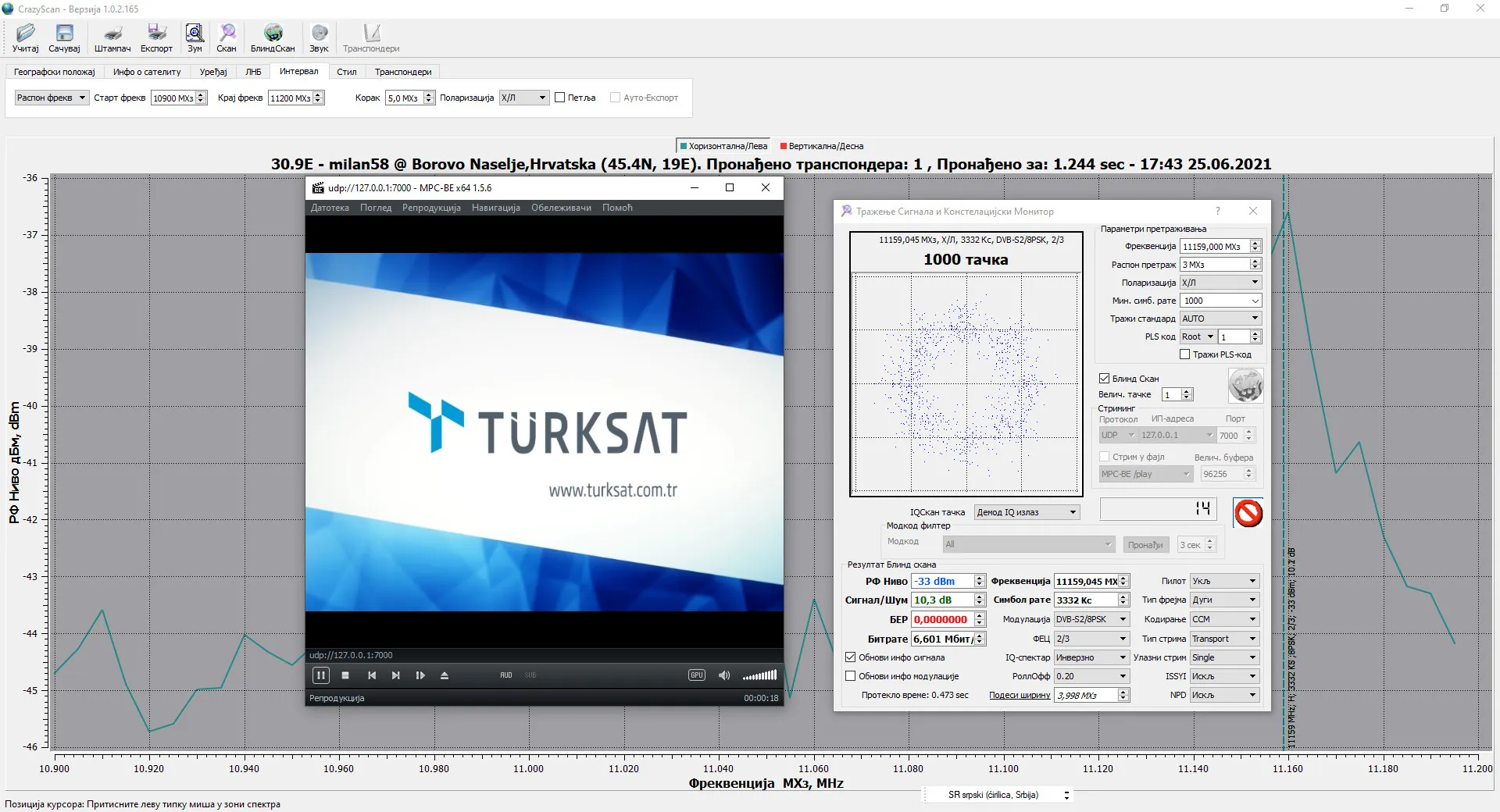

Now the promo frequency is active

11159,H,3332,23,8PSK

**satesco** · June 25, 2021 at 6:46 PM

11504 H,12500,2/3,8PSK-Turksat Tanitim,too

11158 H,3332,2/3,8PSK-Turksat promo

Kleinraisting · June 26, 2021 at 9:11 AM

whats about this satellite? no (positiv) report from anyone user in middle europe; i suppose we have the same condition like turksat beam; no success with 150 cm dish on my place.

regards

**pawelwa** · June 26, 2021 at 9:24 AM

No signal at my place

**qwer** · June 26, 2021 at 9:26 AM Official Post

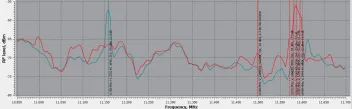

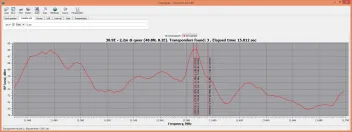

Signal check at 9.30 a.m. ~1.0dB more needed for 11158 H 3333 2/3 DVB-S2 8PSK at this time on 2.2m. Nothing from 11504 H at my place.

**pawelwa** · June 26, 2021 at 9:42 AM

Quote from pawelwa

No signal at my place

After fine tuning.

**satesco** · June 26, 2021 at 9:57 AM

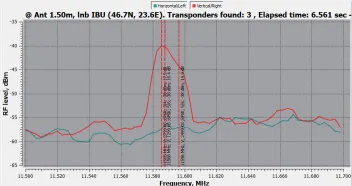

Here's the signal at 30.8E in my area atm,the first one with a 1.50m antenna and the other one with 1.10m.

Kleinraisting · June 26, 2021 at 10:43 AM

there are 2,8dB penetrating, but not continuous; but where from comes this signal, 30,5 ?
