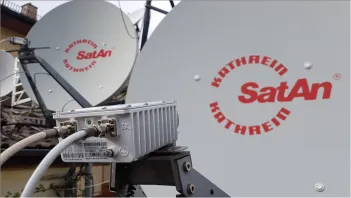

    Just my test setup with AN8024 transceiver on 1,2m dish.

    Images

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    • Official Post
    Quote from qwer

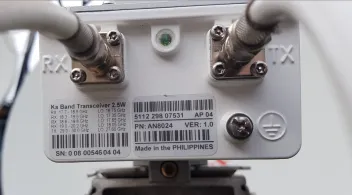

    Just my test setup with AN8024 transceiver on 1,2m dish.

    You might find it better to not use the modem but to power it directly from the 24V PSU. That way the 10MHz does not enable the TX part and it will run a lot cooler. The LED will then be red indicating a fault.

    1.2m Prodelin 3122 az-el with one of:
    S: Helical feed, 0.8dB NF LNA, X: 1dB NF LNA, conical feed, Ku 12-18GHz: corrugated conical feed, 1.5dB NF LNA, Ku: (10-15GHz), modified SMW LNA on rotating mount, Prodelin feed. Ka: Gilat ex-ODU PLLs Gilat feeds, Ka 18-26.5GHz: Patriot feed, home made 4dB NF LNA, Ka DSN: Corrugated conical feed, 3dB NF Down-Converter

    1.8m PF, Polar mount with Bullseye C120 LNB, Precision/Elite feed
    40km East of London, UK
