10.0°E Eutelsat 10B

  • Today many channel moving from old 10A to 10B in Ku-band. Can someone to check? :51:

    African channels moved from band 10700-10950 to 12500-12750V. For me - no any signs.

  • Some frequencies have been tested, some have been kept, and others are in testing.

    The ORTC program has a copy in the upper band on 12642 V,2060,3/4.

    The other African and Portuguese programs have been deactivated.


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

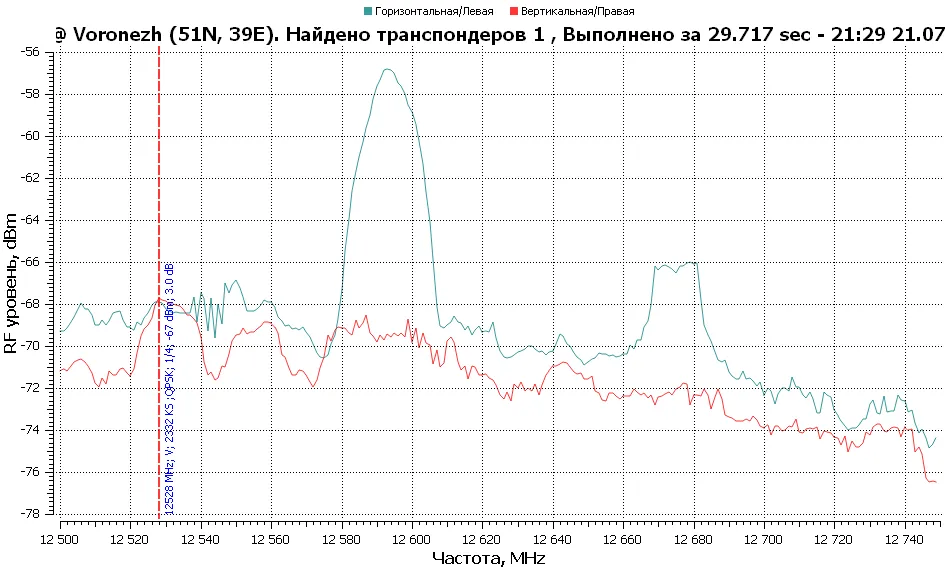

  • Here's what the upper band looks like. The signal on the older frequencies(12526 V and 12532 V) is weaker.

    12590 H,16148,3/4,32apsk is a new one, activated today.


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • Hier mal, was am Standort mit 125 cm geht.
    Das horizontale Spektrum im 12 GHz Bereich ist total unbrauchbar, was ist damit los?
    Bastelt man da bei Eutelsat gerade rum?
    Ich bin ganz zufrieden. 2 mal ORTC.


    Wenn Euch an meinen Spektren irgendetwas auffällt, was auf einen Fehler an meiner Anlage hinweisen könnte, dann würde ich mich über einen HInweis freuen.

  • I would make one observation, but it is not obligatory: I would uncheck the "Mark width" function in Crazyscan to see better the parameters, especially when the muxes are close. (See picture) :3:


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • 11222 V DVB-S2/QPSK 30000 5/6
    11346 H DVB-S/QPSK 27500 3/4
    12642 V DVB-S2/QPSK 2061 3/4

  • I see that 11222 I receive it with 2.5 dB of mer less than satellite 10 A

    Lodi sud


    laminas 180

    lnb invacom doppia flangia



    tbs 6925 sat

    rover tab 900 plus


    proform KTI h 180

  • Although it cannot be known (yet) what content these carriers will have, according to the parameters, it seems to be allocated to Radio Maria. Probably they are doing internal tests; who knows? :25:


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • Hello, I am Andreasgrdx from Athens, Greece.


    These are pictures with official footprints (C , KU , 2 KU-HTS) from Thales Alenia Space video about the new satellite Eutelsat 10B (10.0° East) without dBW .


    EUTELSAT 10B, a new all-electric satellite for inflight and maritime connectivity services

    External Content youtu.be
    Content embedded from external sources will not be displayed without your consent.
    Through the activation of external content, you agree that personal data may be transferred to third party platforms. We have provided more information on this in our privacy policy.


    C-band


    KU-band


    2 KU-HTS

    85 cm ,100 cm , 120 cm KU 85.2° E - 45.0° West

    Athens , Greece

  • 10733 H,33000,2/3,16APSK-Eumetcast, probably. ( dreamsat on the UK forum)


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • In 2022, they planned to use 10780 H

    they changed in July 2023

    Location: Banska Bystrica, Slovakia
    Ku-Band: 50°West - 95°East Gibertini OP100 (1,0m)
    Ku-Band: 5°West - 39°East WaveFrontier T90 (0,9m)
    Ku-Band LNB: Avenger PLL321S-2 PLL
    Tuner: TBS 5925&5530&5220, EDISION MIO+ 4K, Mut@nt HD51, Dreambox 900UHD&7020HD

  • Hier das gleiche.

    Ps: Zap Viva ist Mis 171, nicht vergessen einzutragen Kathrein018

  • Danke für den Hinweis!

    Hab ich schon korrekt drin...


    Ist schon eine Hausnummer. Mit 2,7m 11,8dB, ca. 0,8dB Reserve dann ist das Bild wech. :35:


    Bei mir eben kein Lock und er liest den Tp. mit ein. :426:

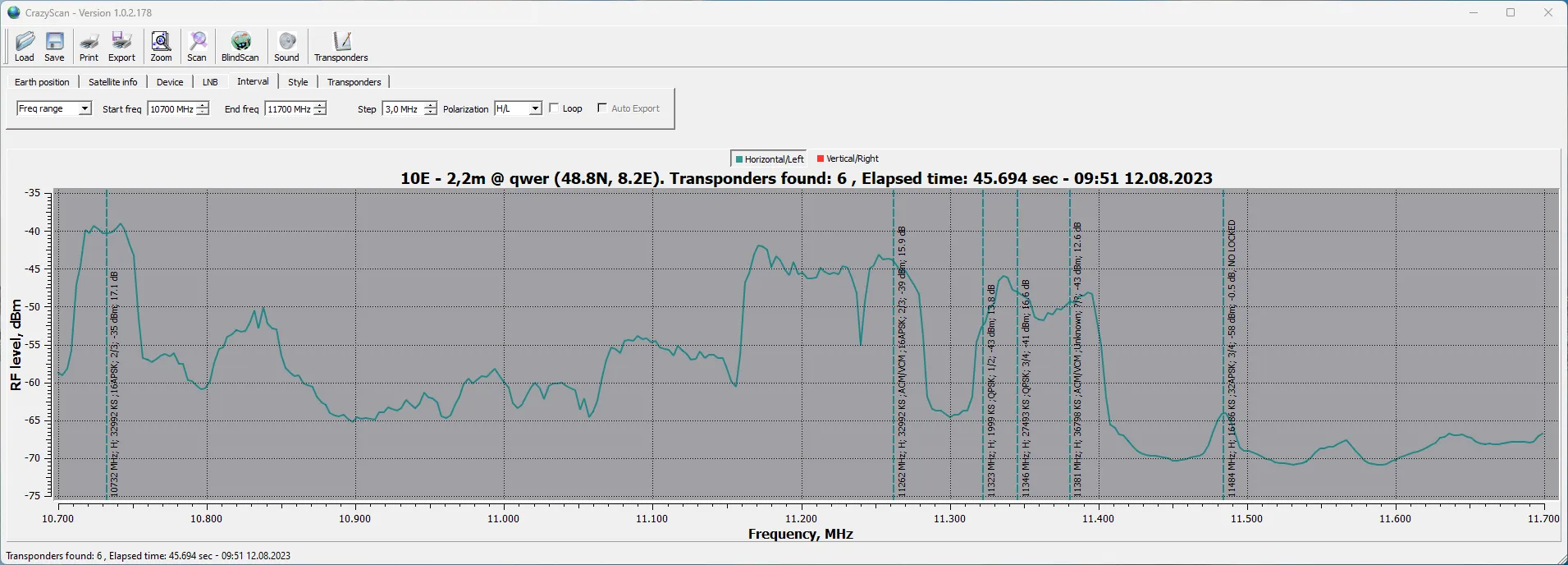

  • Just my current scan on 2.2m.

    12736 V 4000 9/10 DVB-S2 8PSK - not lockable - about 5dB under LM

    PS: I can confirm unlockable QPSK signal at about 12673 H, but can´t confirm SR 255.


    Images


  • ...

    PS: I can confirm unlockable QPSK signal at about 12673 H, but can´t confirm SR 255.

    ...

    Indeed, we have no device or application capable of reading the signal at 12672-12678 H to be sure that it is a valid transmission. Only IQmonitor, when searching manually, discovers/generates some parameters, but all muxes have the same signal level.

    There is definitely some activity on these transponders but probably (who knows) they are operator tests(?).


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • 10770 H,22960,3/4-Service name: AFP2 EU.

    Copy of 11345 H,27500,3/4 of the same Eutelsat service on 10.0E.


    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:
