04.1°W Amos-3 <Ukraine> (OLD POSITION Feeds>Ku)

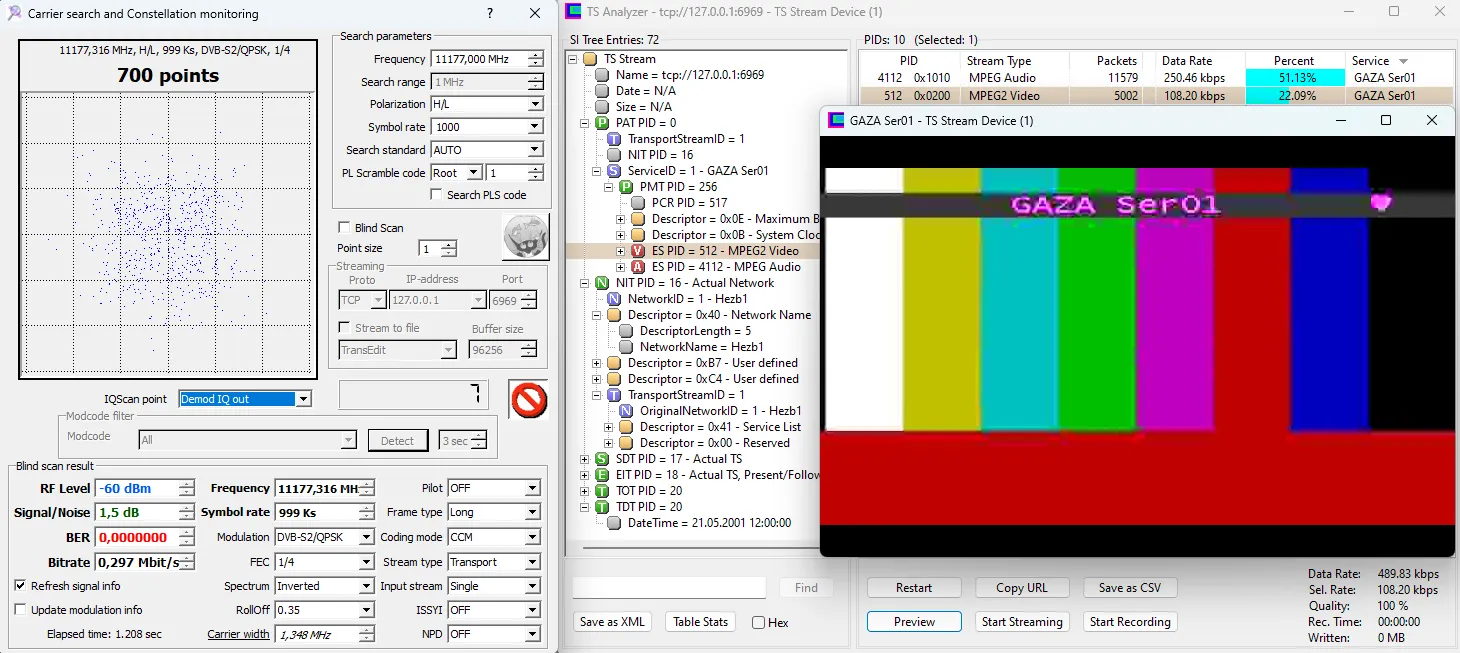

    Ich habe gerade mal mit 125 cm und dem D15 einen Blindscan auf dieser Satposition gemacht.
    Es tauchten zwei Feeds auf, die ich auf Grund des sehr schwachen Signals auf dem ME Beam vermute
    Empfang des Testbildes ist mit Aussetzern möglich.


    I just did a blind scan at this satellite position with 125 cm and the D15.
    Two feeds appeared, which I suspect were due to the very weak signal on the ME beam.
    Reception of the testpicture is possible with dropouts.

    11177 H 5000 1/4, 1.5 dB, DVB-S, MPEG-2, VPID: 0512, APID: 4112 "GAZA Ser01", Provider: "Hezb1"
    11427 V 5000 1/4, 1.5 dB, DVB-S, MPEG-2, VPID: 0512, APID: 4112 "GAZA Ser01" , Provider: "Hezb1"

    11178 H,5000,1/4,S2-Gaza Ser01,

    11129 H,8000,1/2-Tandberg :3:

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    Quote from satdxer

    11177 H 5000 1/4

    Today from south-west of Germany on 2.2m...

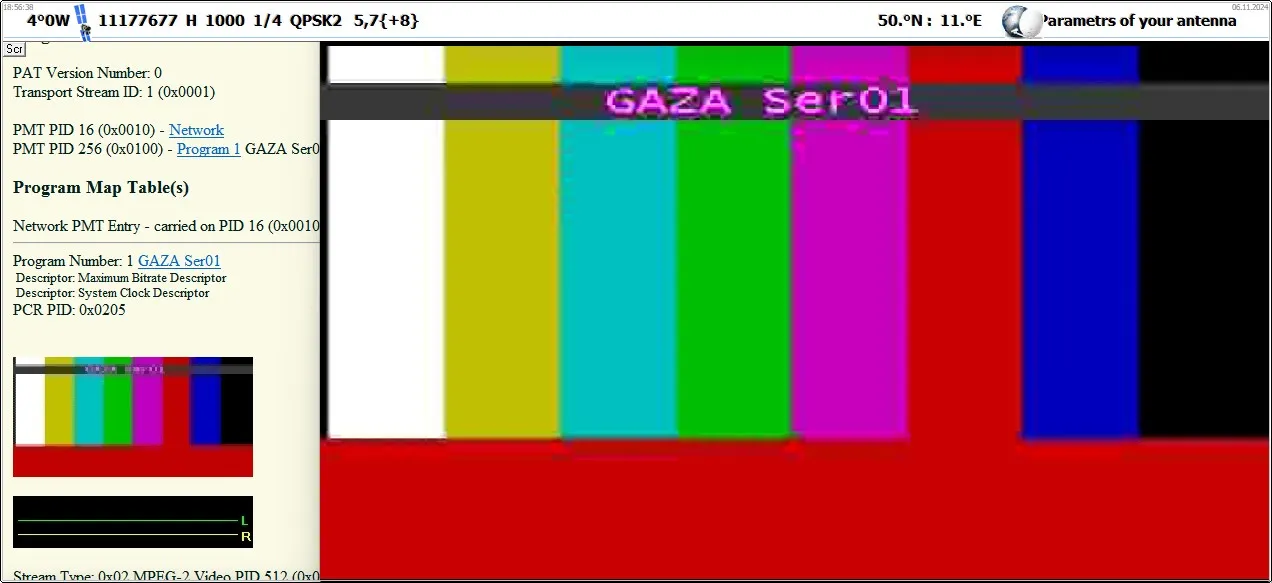

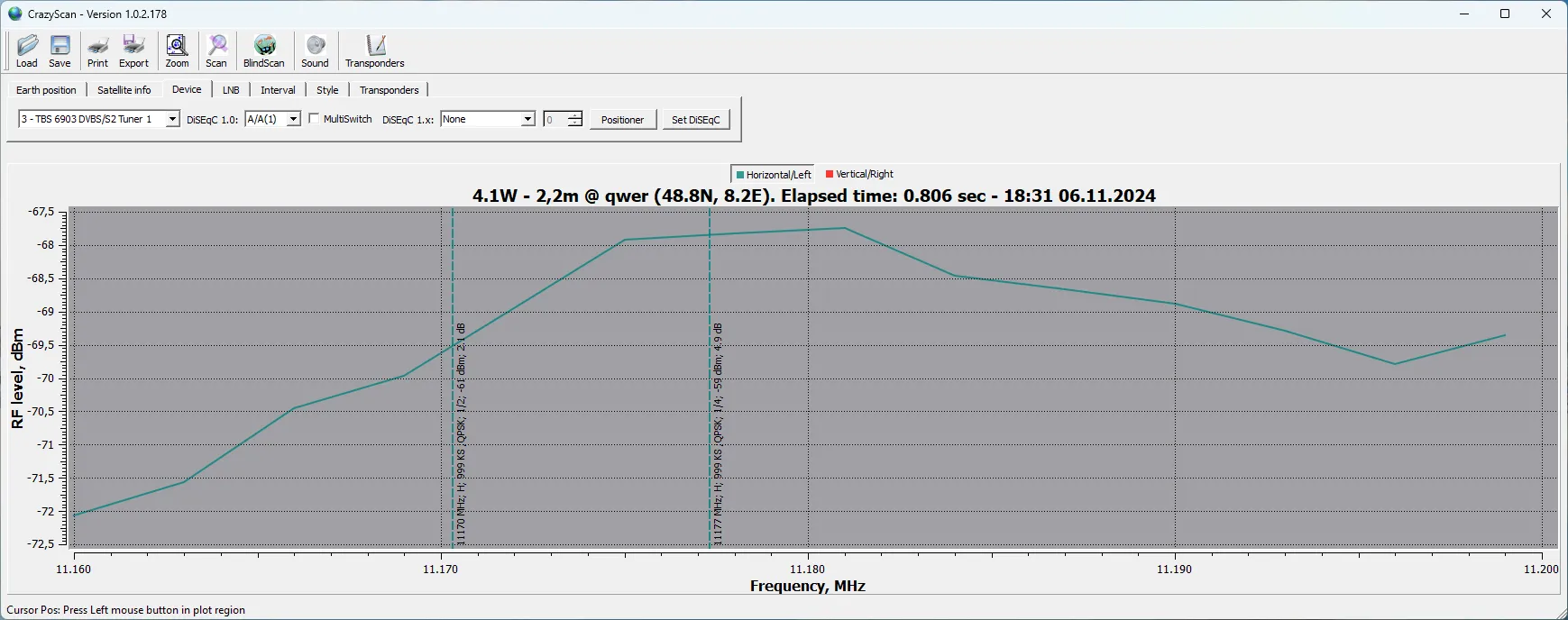

    11177 H 1000 1/4 DVB-S2 QPSK, ID: GAZA Ser01
    PS: 11170 H 1000 1/2 DVB-S, Data



    :49:FYI: According N_Stanislav on LyngSat, it´s Amos-3 on Ukraine beam... :69:
    Merged all reports now in this new toppic.

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Danke für die Meldung , bei mir ein klein bisschen stärker

    Thanks for the message, a little bit stronger for me

    Oberfranken
    1.80m Ch.Master Revolver 5 LNB

    IBU twin , Bulleye 10kHz, Kaonsat 13K, Inverto KaKuband,Kaband ( A)

    TBS6983; Openbox SX3 CI II ; Ustym 4K Pro ;SR-200HD extrem ; D15

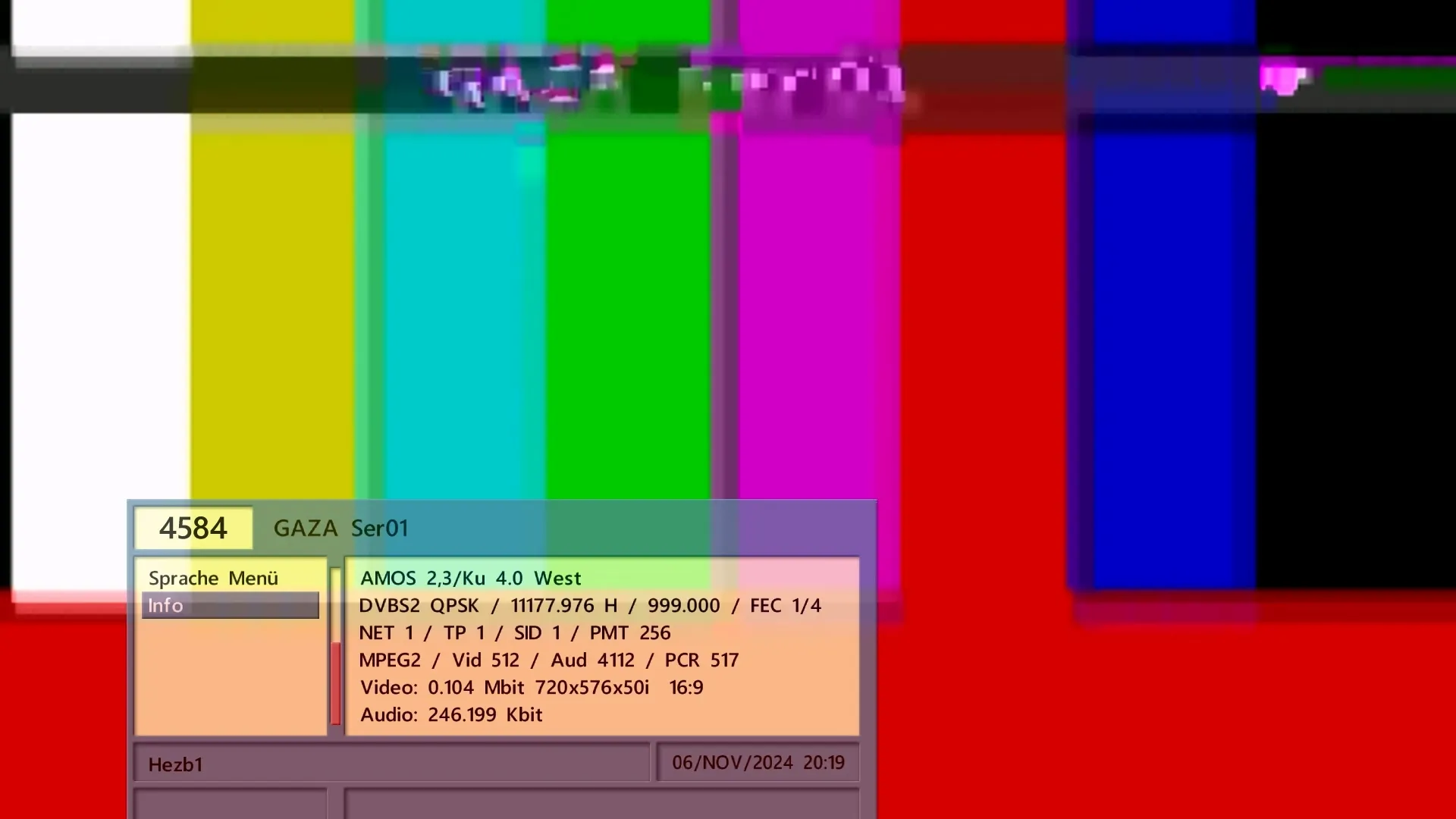

    Auch mit dem Openbox S3 HC II zu empfangen ; video ist fürchterlich

    Can also be received with the Openbox S3 HC II ; video is terrible

    Oberfranken
    1.80m Ch.Master Revolver 5 LNB

    IBU twin , Bulleye 10kHz, Kaonsat 13K, Inverto KaKuband,Kaband ( A)

    TBS6983; Openbox SX3 CI II ; Ustym 4K Pro ;SR-200HD extrem ; D15

    Not sure about this beam, I have here about 4-5db , other "UA" or EU TPs have 17-18db.

    UA beam does not cover Gaza...:25:

    I would say stronger ME TP.:125:

    Location: Slovakia, near Čadca

    Kathrein 220cm , KU+C,

    Quote from marval450

    Not sure about this beam, I have here about 4-5db , other "UA" or EU TPs have 17-18db.

    You can't compare using this comparison. tp7 from Amos3 can work only in Ukranian beam. Uplink to this tp on earth located near Gaza region and retransmit to Europe region. Uplink is very weak, this tp works in linear mode. That means "how stronger satellite see uplink signal - retransmit to Earth with exactly same strength".

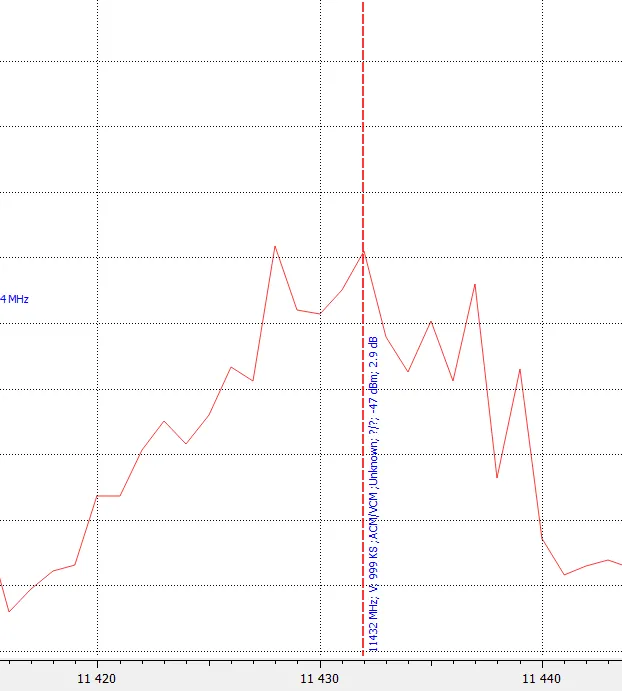

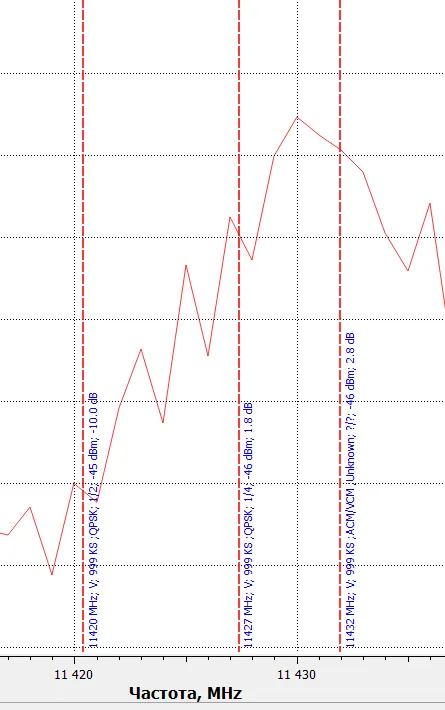

    Same mirrored feed exist here on 11428V 1000 1/4

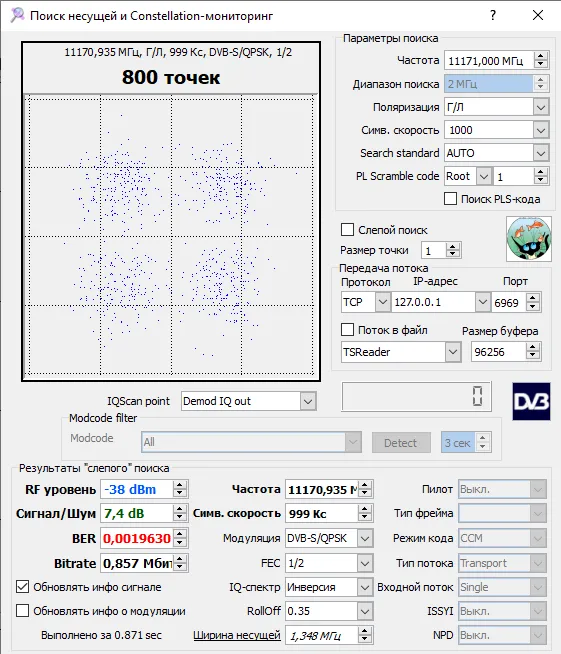

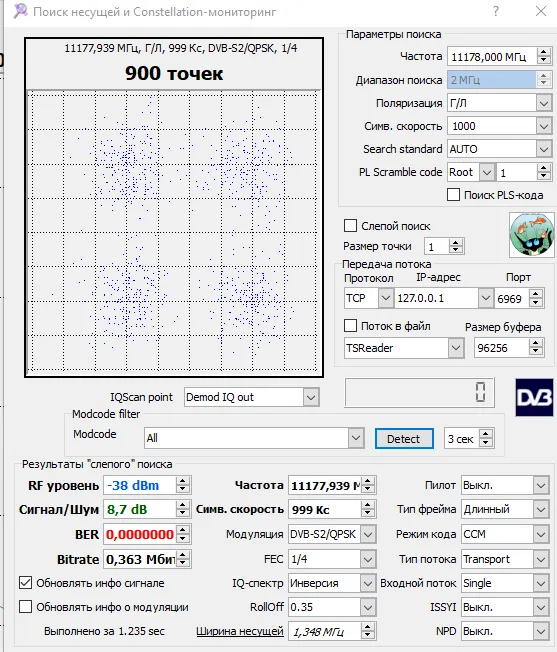

    For example signal at my location:

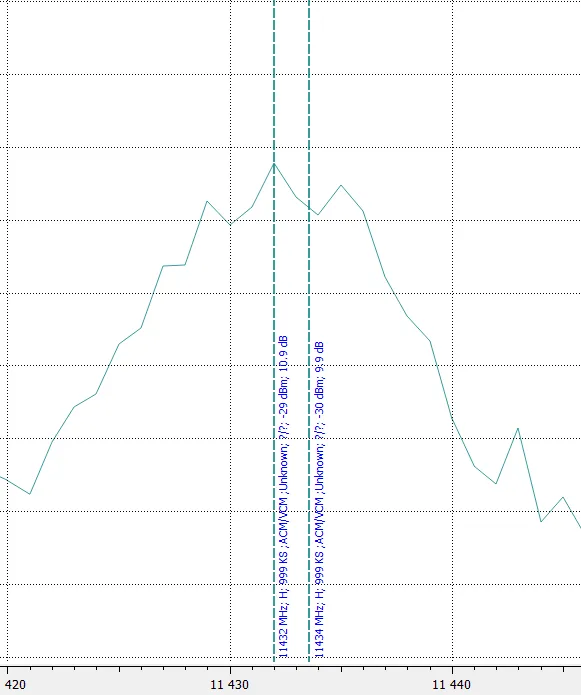

    And same mirrored in ME beam

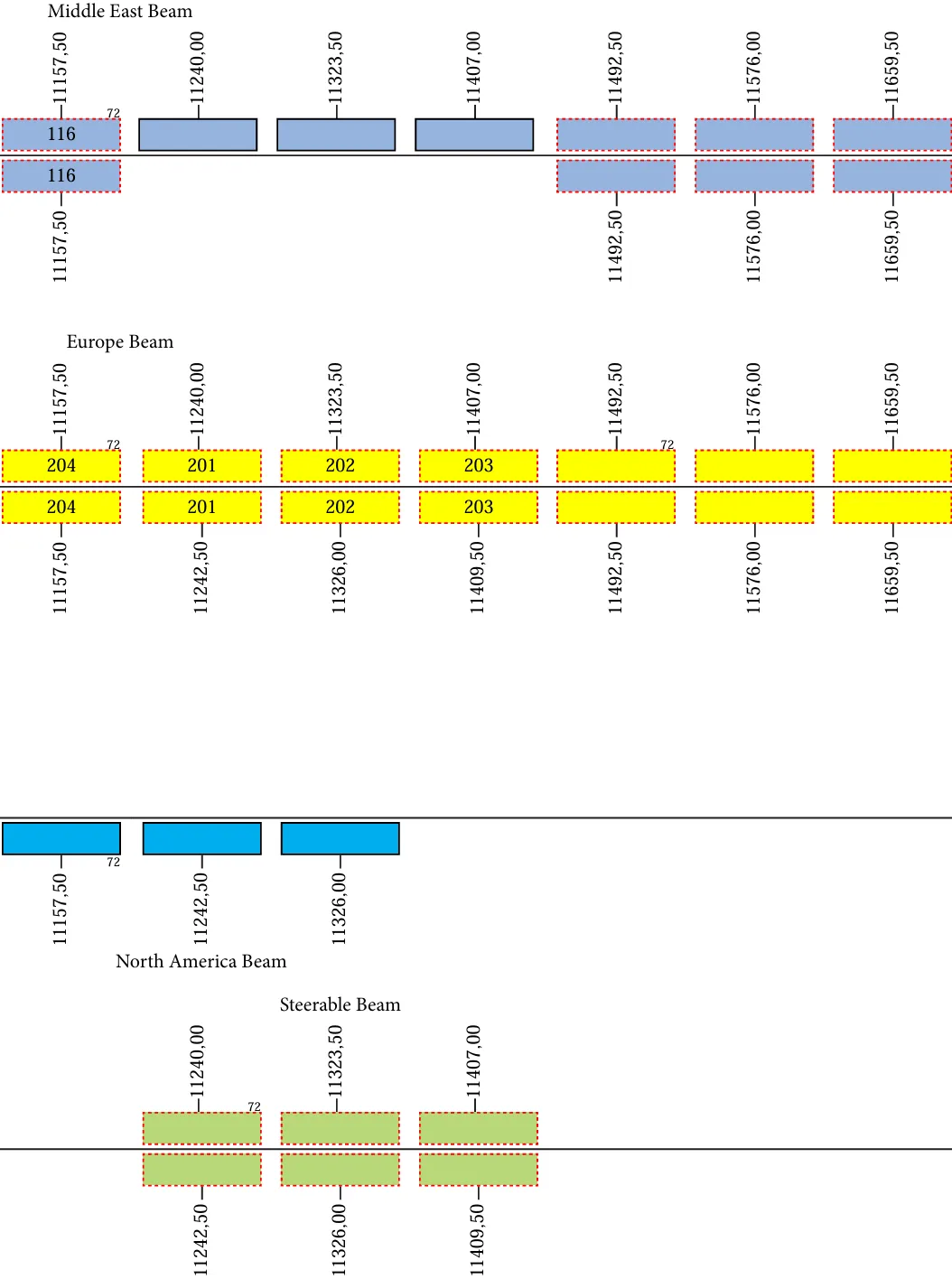

    11170 H can be broadcast in 3 beams, 11430 V in 2 beams

    Location: Banska Bystrica, Slovakia
    Ku-Band: 50°West - 95°East Gibertini OP100 (1,0m)
    Ku-Band: 5°West - 39°East WaveFrontier T90 (0,9m)
    Ku-Band LNB: Avenger PLL321S-2 PLL
    Tuner: TBS 5927&5925&5220, EDISION MIO+ 4K, Mut@nt HD51, Dreambox ONE&900UHD

    Quote from qwer

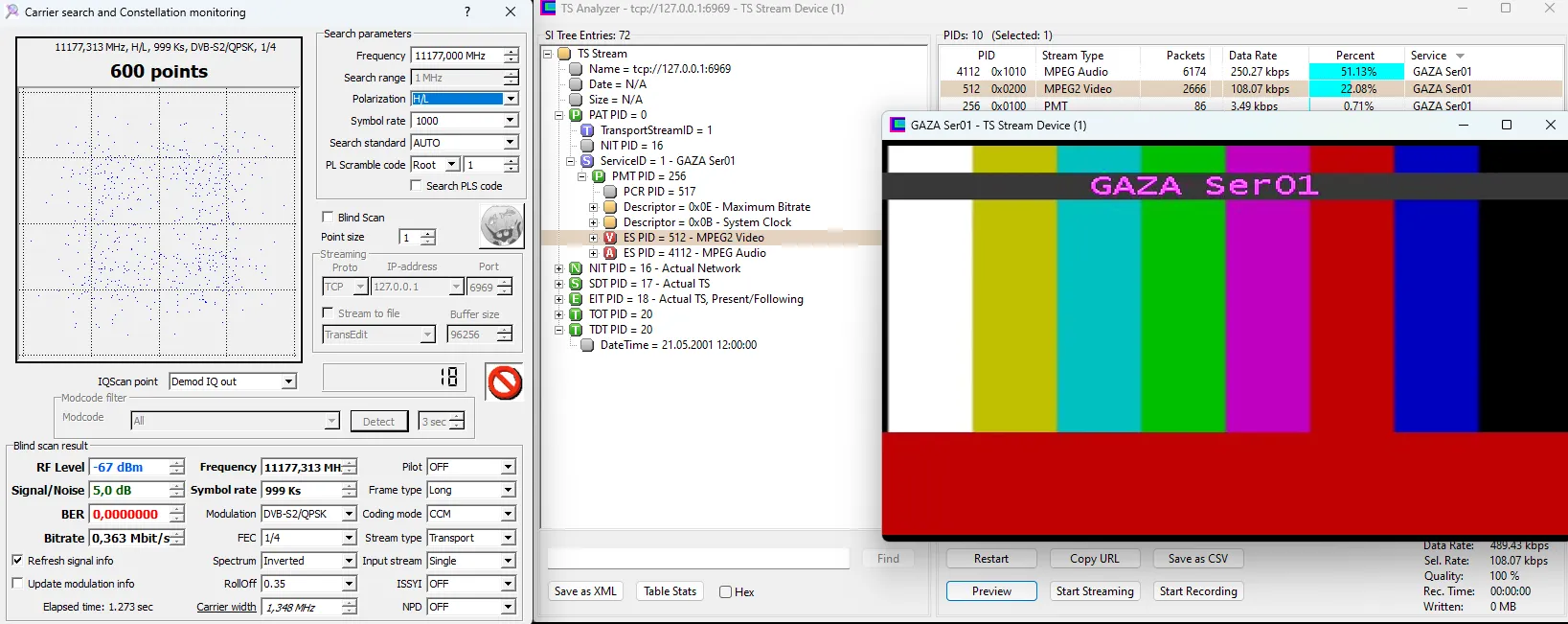

    11177 H 1000 1/4 DVB-S2 QPSK, ID: GAZA Ser01

    ...weak signal today on 11177 H 1000 1/4 ...

    Quote from N_Stanislav

    Same mirrored feed exist here on 11428V 1000 1/4

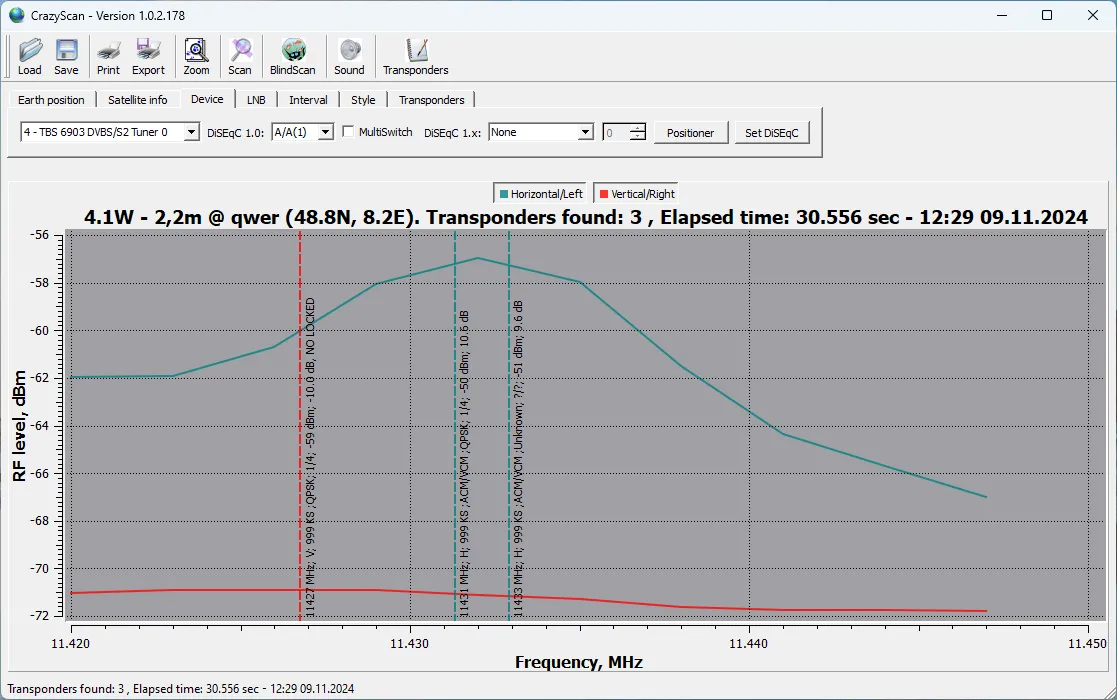

    I can see this one in 11427 V 1000 1/4 sperctrum too, but no lock yet.

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

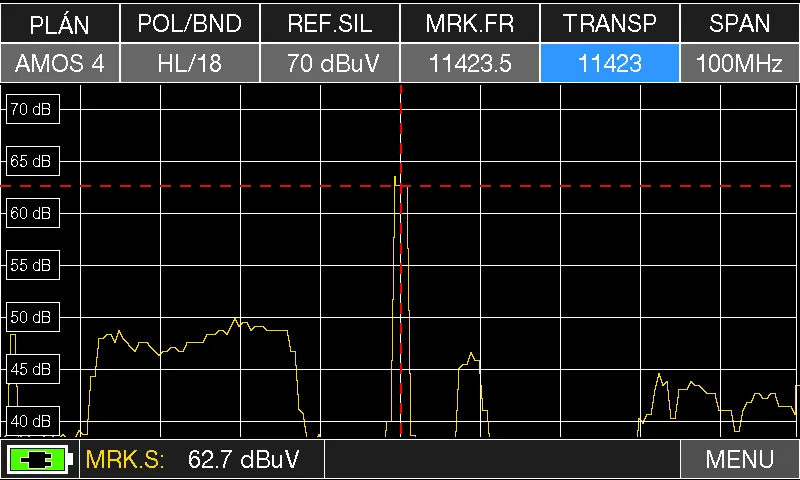

    Something strong on 11423H , SR around 2000

    Location: Banska Bystrica, Slovakia
    Ku-Band: 50°West - 95°East Gibertini OP100 (1,0m)
    Ku-Band: 5°West - 39°East WaveFrontier T90 (0,9m)
    Ku-Band LNB: Avenger PLL321S-2 PLL
    Tuner: TBS 5927&5925&5220, EDISION MIO+ 4K, Mut@nt HD51, Dreambox ONE&900UHD

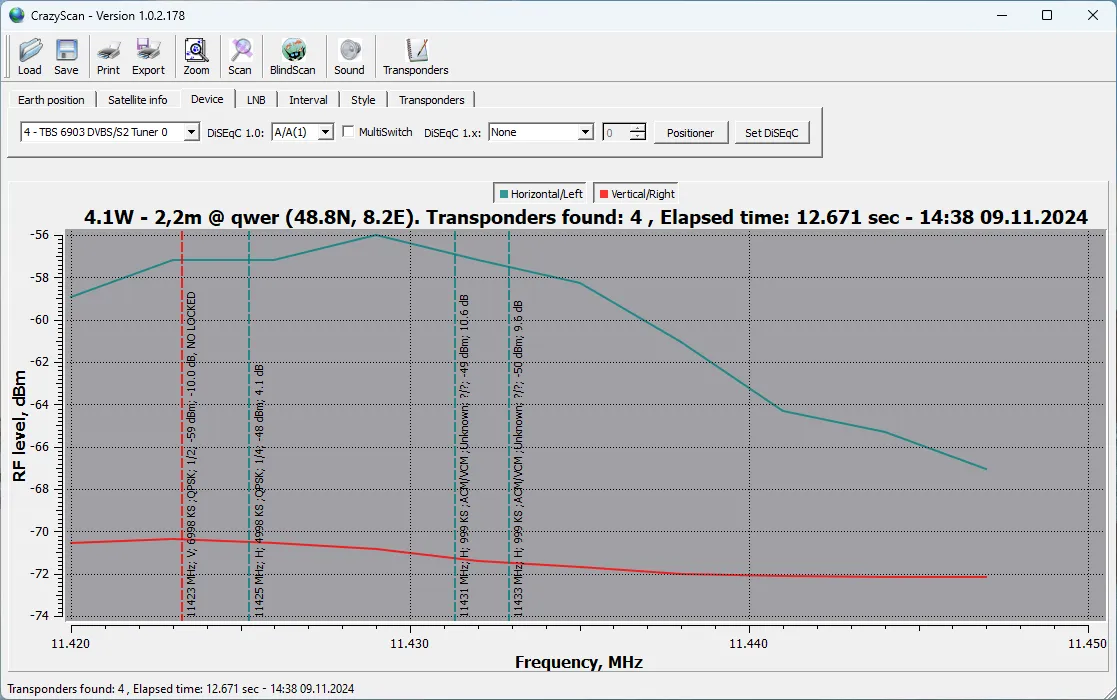

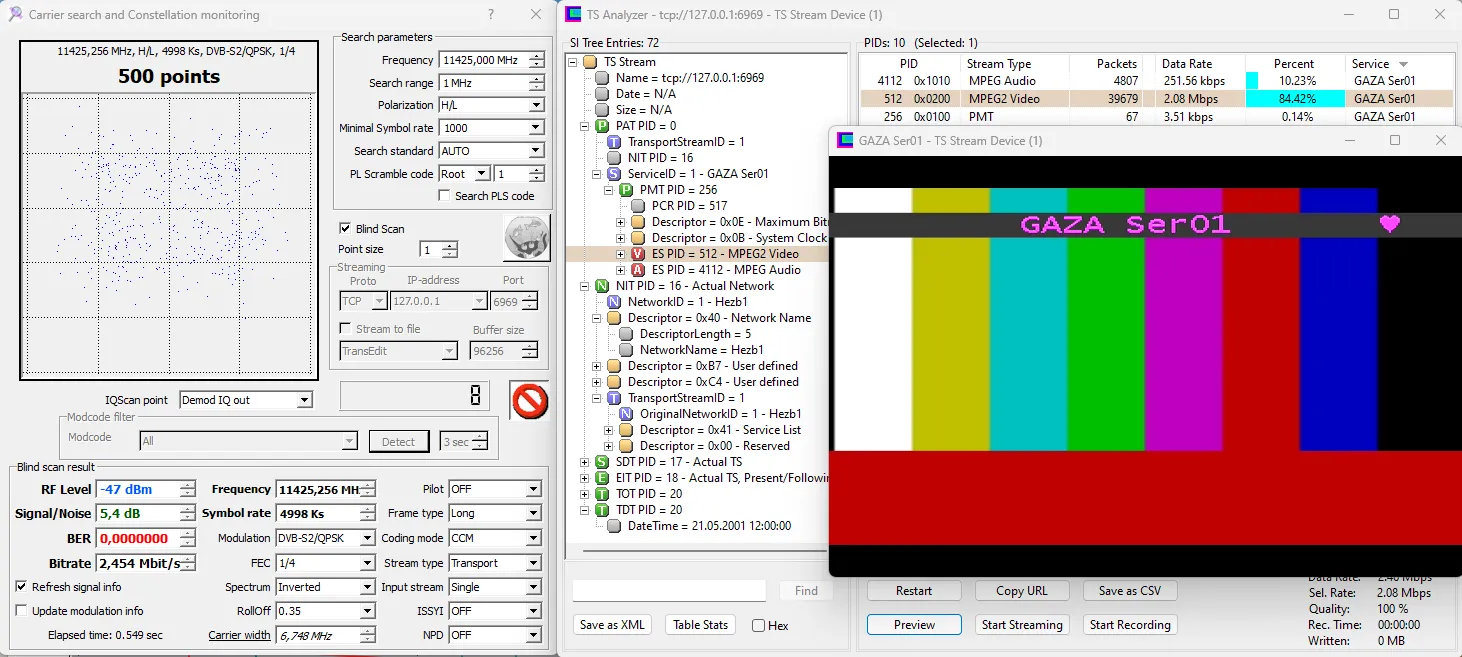

    I can see right now:

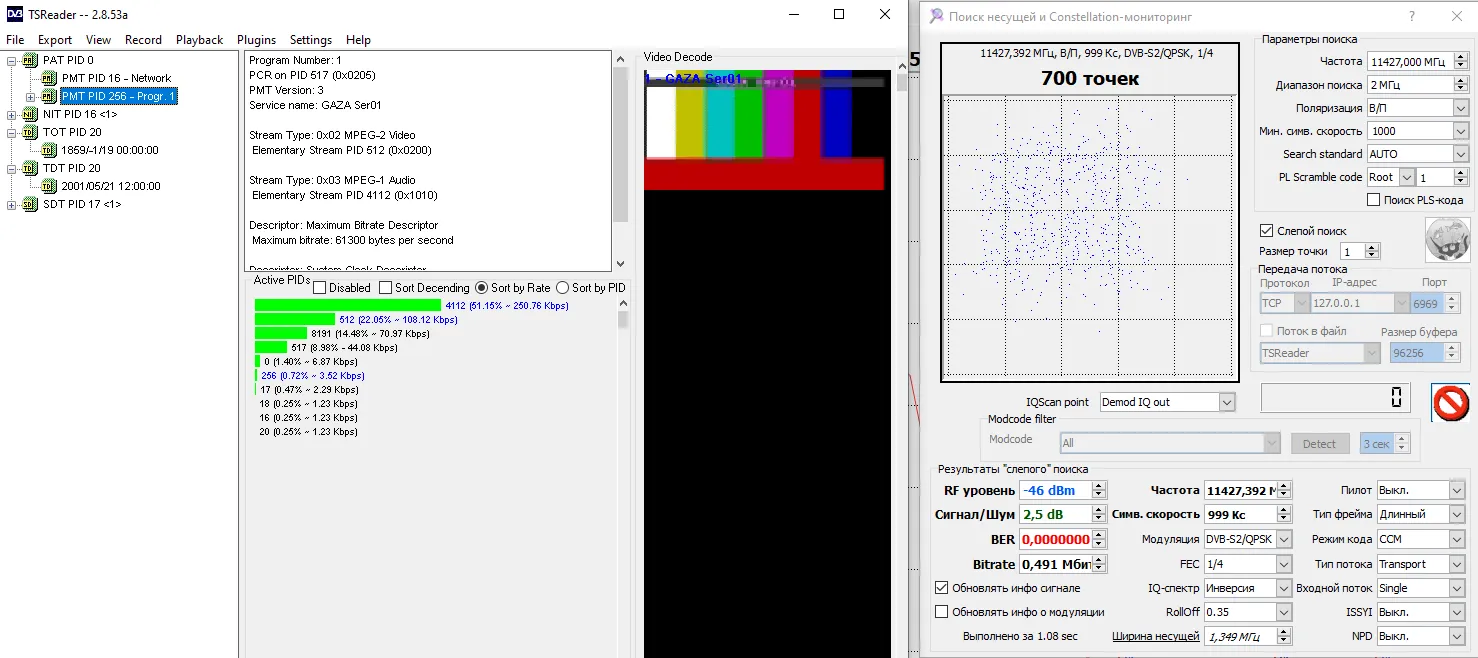

    11425 H 5000 1/4 DVB-S2 QPSK, ID: GAZA Ser01

    PS: 11423 V 5000/7000 1/2 DVB-S were Data services

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Quote from qwer

    I can see right now:
    11425 H 5000 1/4 DVB-S2 QPSK, ID: GAZA Ser01

    ...

    11424 H,5000,1/4,S2-Gaza :3:

    11674 V,5000,1/4,S2-Gaza Ser01,new(?)

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

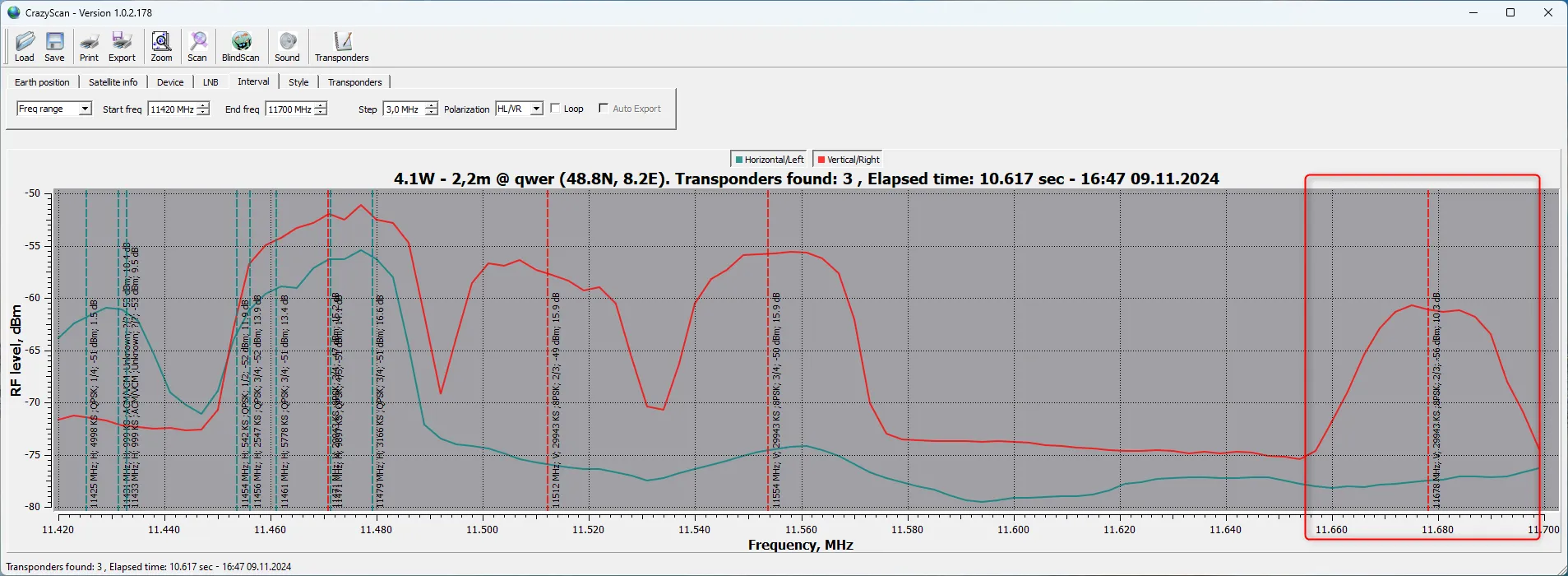

    Quote from satesco

    11674 V,5000,1/4,S2-Gaza Ser01,new(?)

    This one is impossibe on my QTH, according signal from 11678 V 29950 2/3 (5.0°W Eutelsat 5 West B)...

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Quote from qwer

    This one is impossibe on my QTH, according signal from 11678 V 29950 2/3 (5.0°W Eutelsat 5 West B)...

    ...

    Use an attenuator, and maybe you'll at least see the signal.:25:

    My smaller antenna is more suitable this time for this feed :3:

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

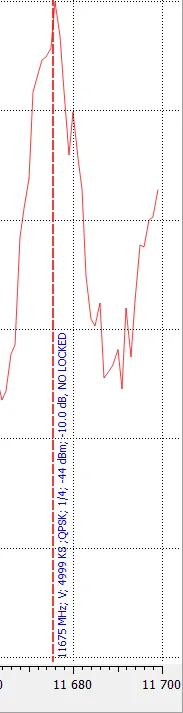

    11674 V locked and run with Novra S401pro.

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    Quote from satesco

    Use an attenuator, and maybe you'll at least see the signal. :25:

    No, it´s impossible to "see" the signal 11674 V from Amos-7, because the "Transalpine" beam from Eutelsat 5 West B is too strong at my QTH on 11679 V... :3:

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

    Quote from EnoSat

    Something strong on 11423H , SR around 2000

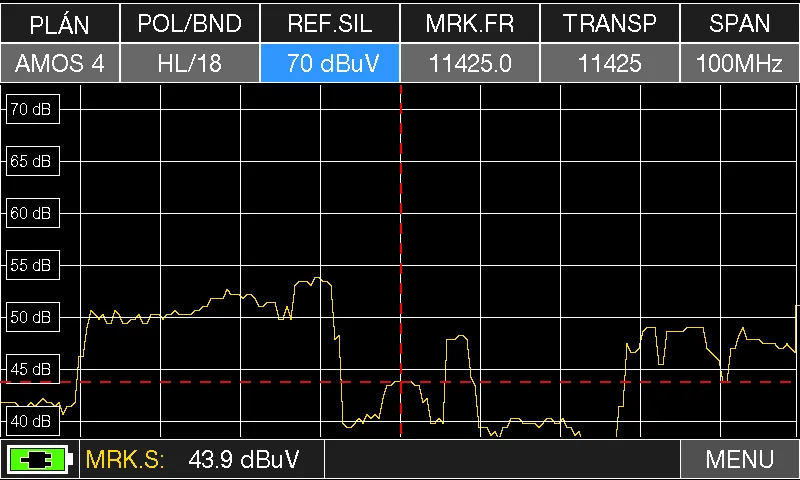

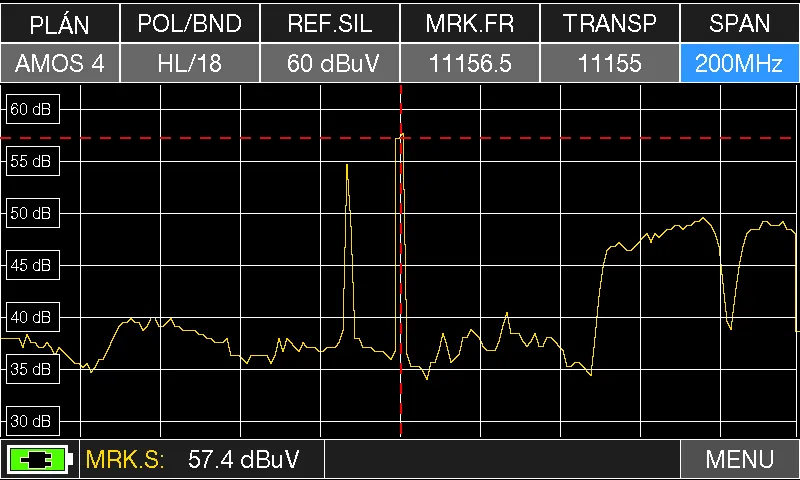

    11423H off (moved to 11156H + 11143H, now 11425H (decrease by 20 dBuV)

    feed 11414 H DVB-S2/16APSK SR-5454 FEC-2/3

    Location: Banska Bystrica, Slovakia
    Ku-Band: 50°West - 95°East Gibertini OP100 (1,0m)
    Ku-Band: 5°West - 39°East WaveFrontier T90 (0,9m)
    Ku-Band LNB: Avenger PLL321S-2 PLL
    Tuner: TBS 5927&5925&5220, EDISION MIO+ 4K, Mut@nt HD51, Dreambox ONE&900UHD

    Edited once, last by EnoSat (November 9, 2024 at 8:07 PM).
