29.0°E SpainSat NG1 (incl.) (TV Broadcast)

  • Just starting a new toppic here... inclination at scan time 0.17° south

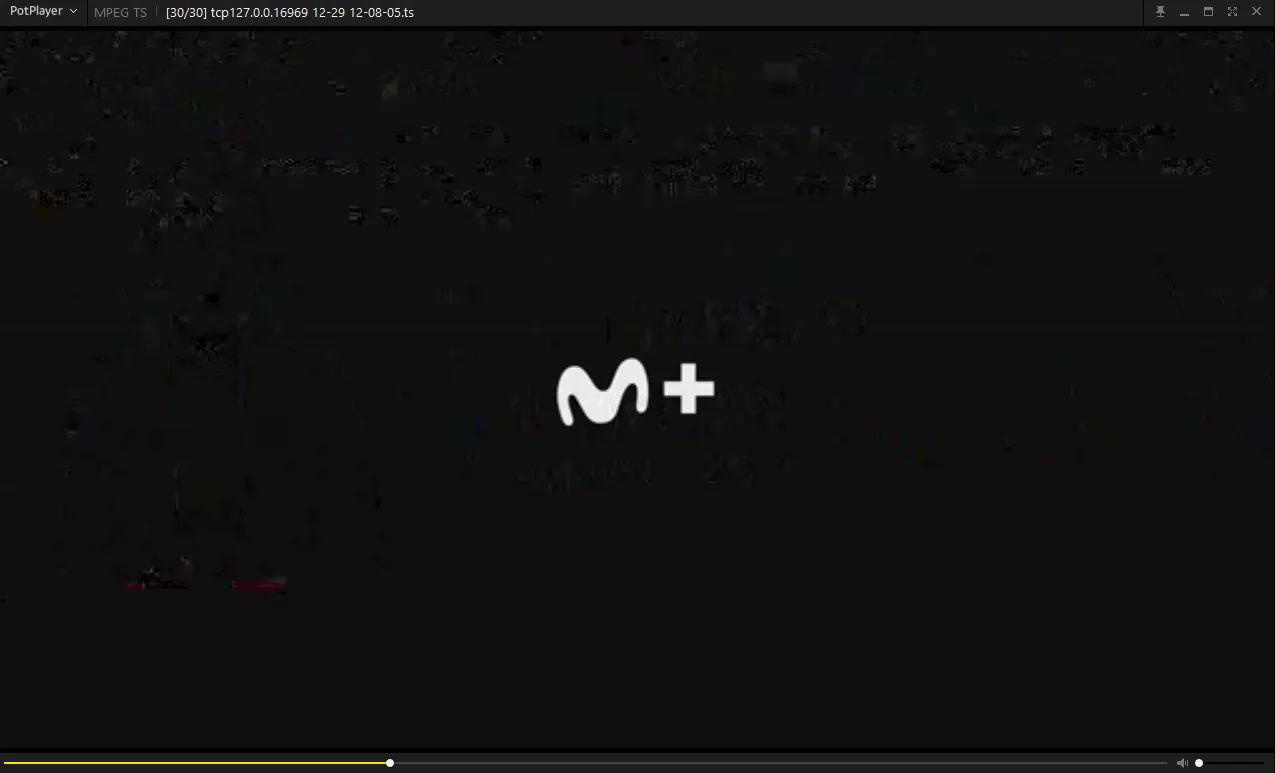

    7739 L 8850 - M+ (Spain) package

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

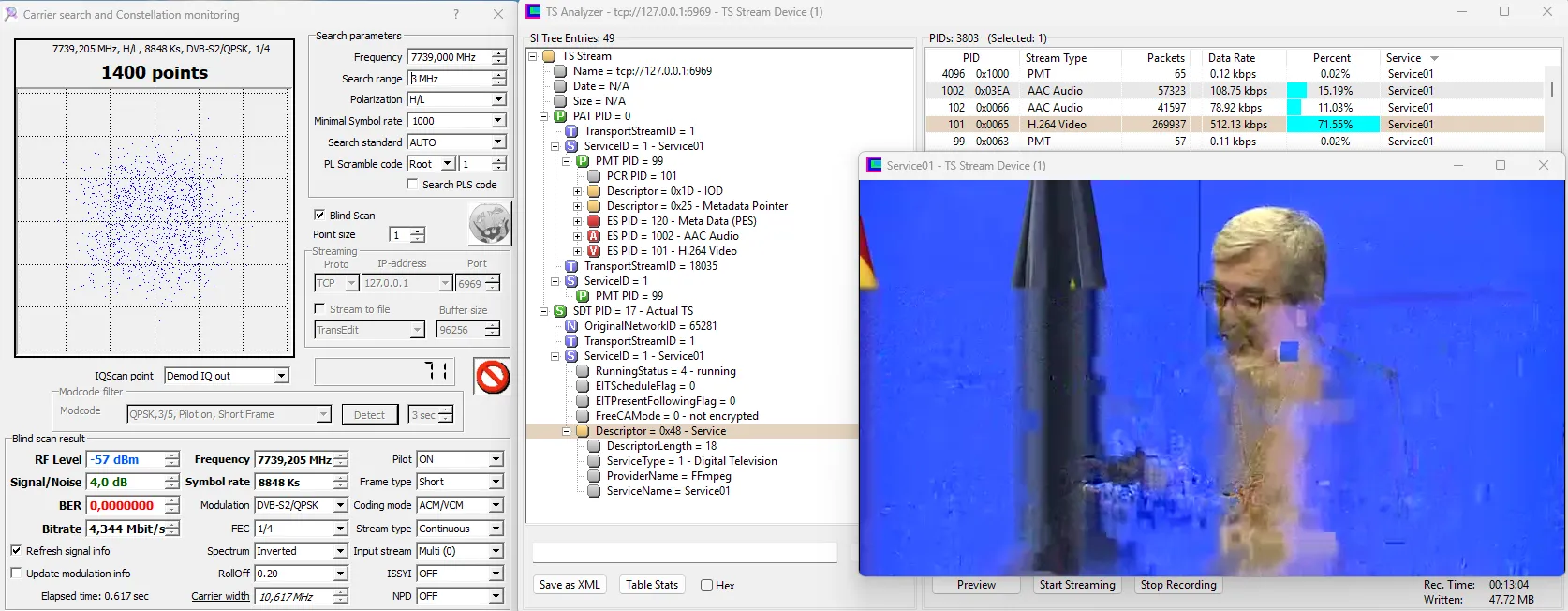

  • Just a deeper look...

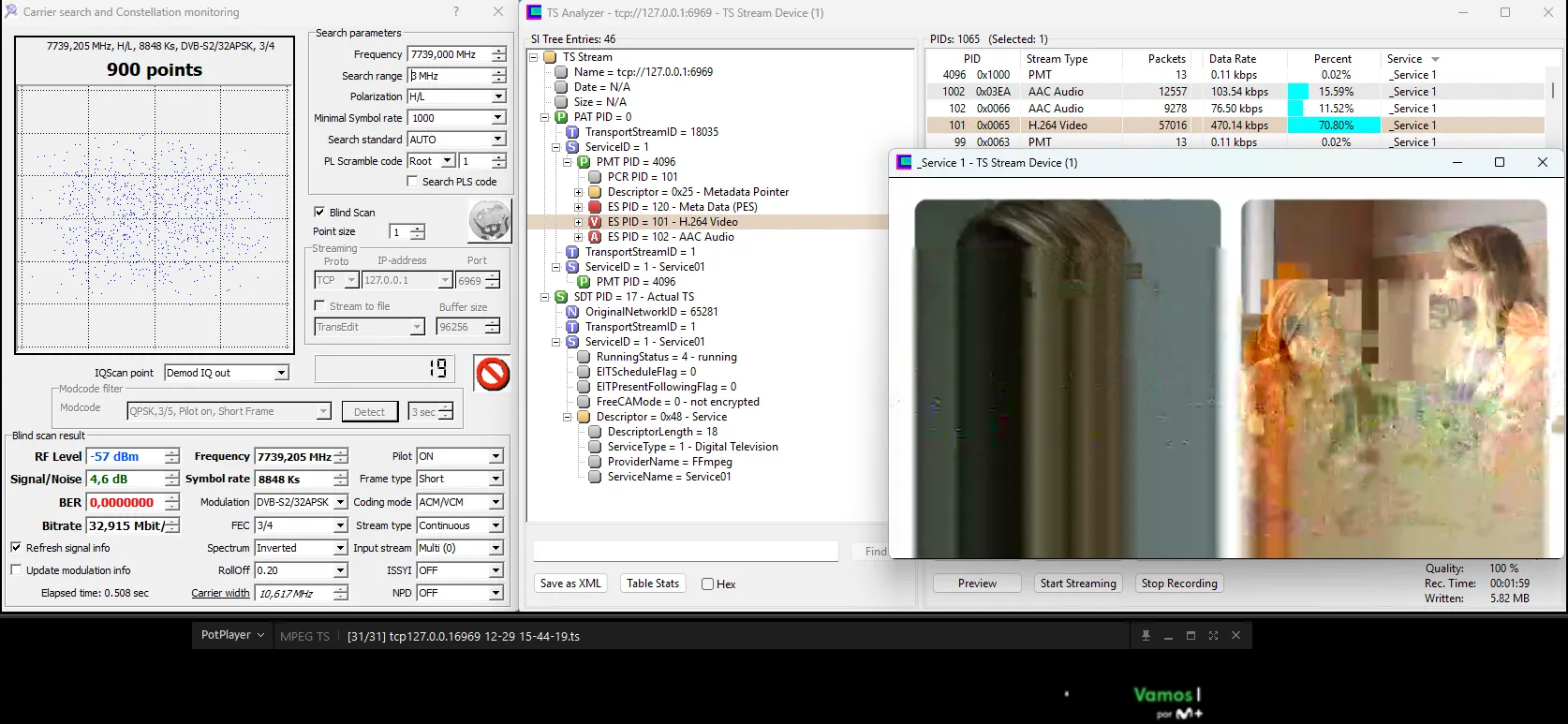

    7739 L 8850
    Modcode QPSK 3/5
    TSID 1 with PMT 99 and ID "Service01"
    TSID 18035 with PMT 4096 and ID "_Service1"


    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • qwer January 8, 2026 at 4:53 PM

    Moved the thread from forum GS>X to forum DX>X.
  • Nothing new appeared in year 2026... :26.
    Inclination at scan time 0.24° south

    :49:FYI: Starting a new section here - merged this toppic in this new section "DX>X (TV/Radio/Audio)"...

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

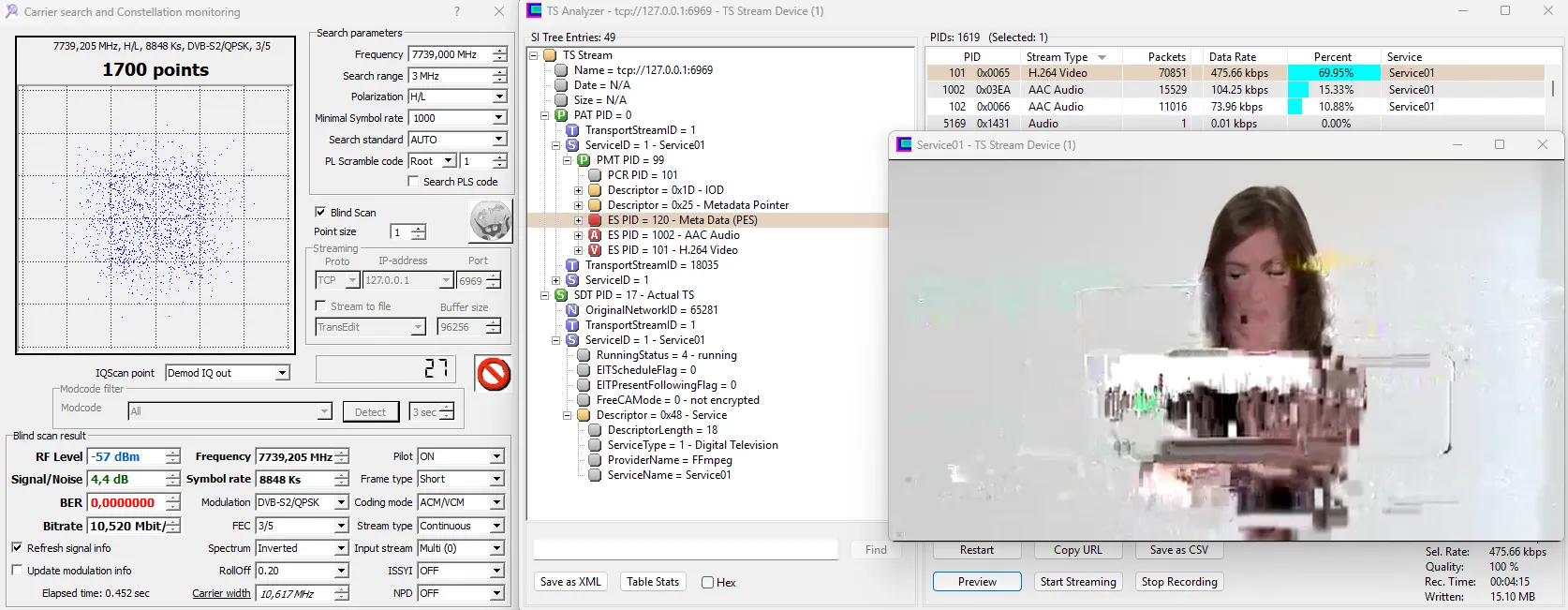

  • 7739 L 8850
    Modcode QPSK 3/5
    TSID 1 with PMT 99 and ID "Service01"
    TSID 18035 with PMT 4096 and ID "_Service1"

    Not possible for more clean screenshots...

    qwer setup

    Location: Rastatt, Germany

    C-band: 53.0°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 52.5°W-63.0°E ORBITRON O-16 (4,9m off focus)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E standby

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL, SOLID WIDE BAND EXTENDED C_BAND LNBF

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup
