TBS6983

Quote from femi

low level:

check all plugs from your card to LNB

if it's possible, test another LNB

i have 26meter RG6 cable triset 113-pe its not long distance. Invacom adf-120 have a little weaker gain comparing to inverto black ultra.

If weather allows i will put other LNB.

and prof 7301 shows good spectrum, around -50dBm, so its not lnb or cable.

I dont have any switches, diseqC etc.. just Invacom connected directly to tbs card.

i think that AGC or VLNA is broken in this card :(

need to remove that metal shield and see what is there.

Finally i put back Prof7301 to my PC.

now i can do better comparison this two cards. I used Crazyscan and IQ Monitor. connected using same setup (cable and lnb)

First prof7301 crazy scan. Default bbgain nothing changed.

tbs 6983 with default bbgain

now with iq monitor

prof 7301 Vertical

Horizontal

tbs 6983 vertical

Horizontal

Now im pull out tbs from my pc and its time to unsolder this metal shielding and see what is inside. Im still wondering why TBS have such low dBm value. Almost hit the ground.

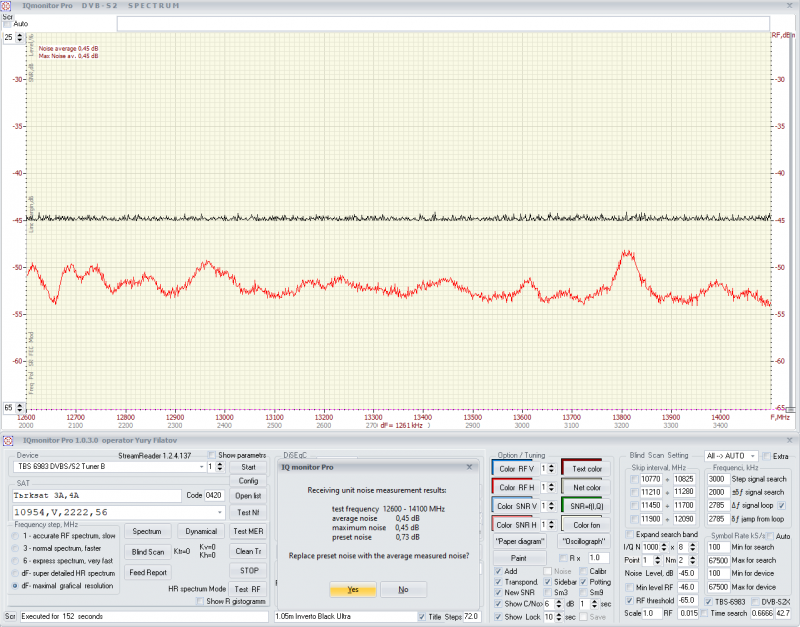

How can i measure Noise NF using IQ Monitor Pro?

Look at

#1469

or here

25 May 2021 - Филатов Юрий ака СТРАННИК

25 May 2021. Спутниковое телевидение

filatov-yuri.livejournal.com

Hello strannik.

Today i unsoldered metal shield from my tbs card. I also didnt have two capacitors C105 and C106.

There are gold traces to prove better shielding.

Still wondering why V13 is missing C58 capacitor

can i stick to STV6120 any little heatsink? using 3m thermal conductive tape?

then i will do better and bigger shielding from copper

Hi everyone, what is the minimum and maximum S/N value for the 6983 card?

I haven't found this value elsewhere.
Thanks

You can look or ask here

https://forum.tbsdtv.com/

Sorry, I made a mistake.
I wanted to know the minimum and maximum S/R values.
Thanks.

TBS 6903 specifications:
- Receiving frequency: 950~2150 MHz tuning range
- Input level: -69~-23dBm
- Dual channels DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK ACM/VCM

Symbol rate: 200 ~ 67500 Ksym/s
- Maximum symbol DVB-S2 rate limitations (Msymb/s)
Msymb/s |Demod |LDPC |Single Dual
QPSK 67.5 135 67.5 67.5
8PQSK 67.5 90 67.5 45
16APSK 67.5 67.5 67.5 33.7
32APSK 67.5 54 54 27
