53.0°E Express-AM6

Quote from qwer

There was an empty carrier for a short time... probably from Fixed 1 beam...?

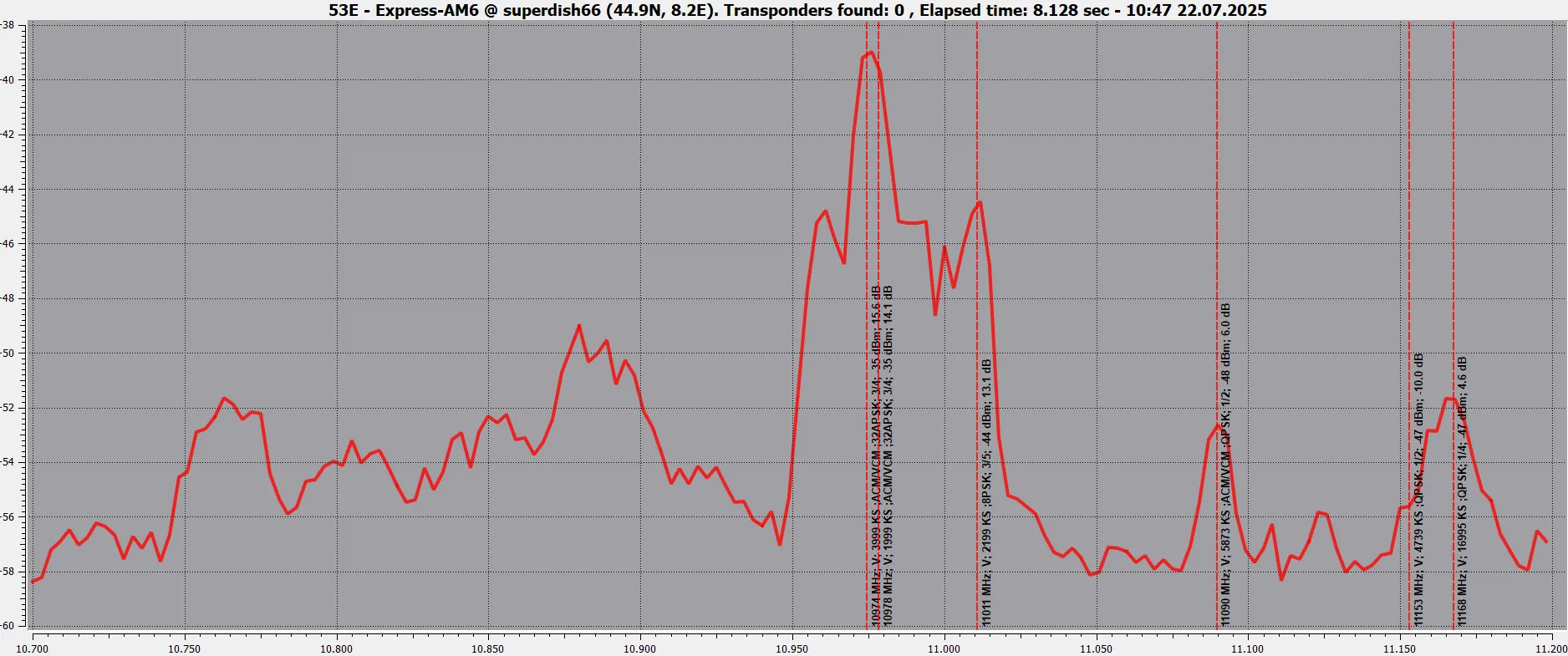

Yes, in Fixed1. See my message with spectrum

Not my catch, A.Ghorbani and EnoSaton Flysat 10.03.2025... reported as S2... but here my signal...

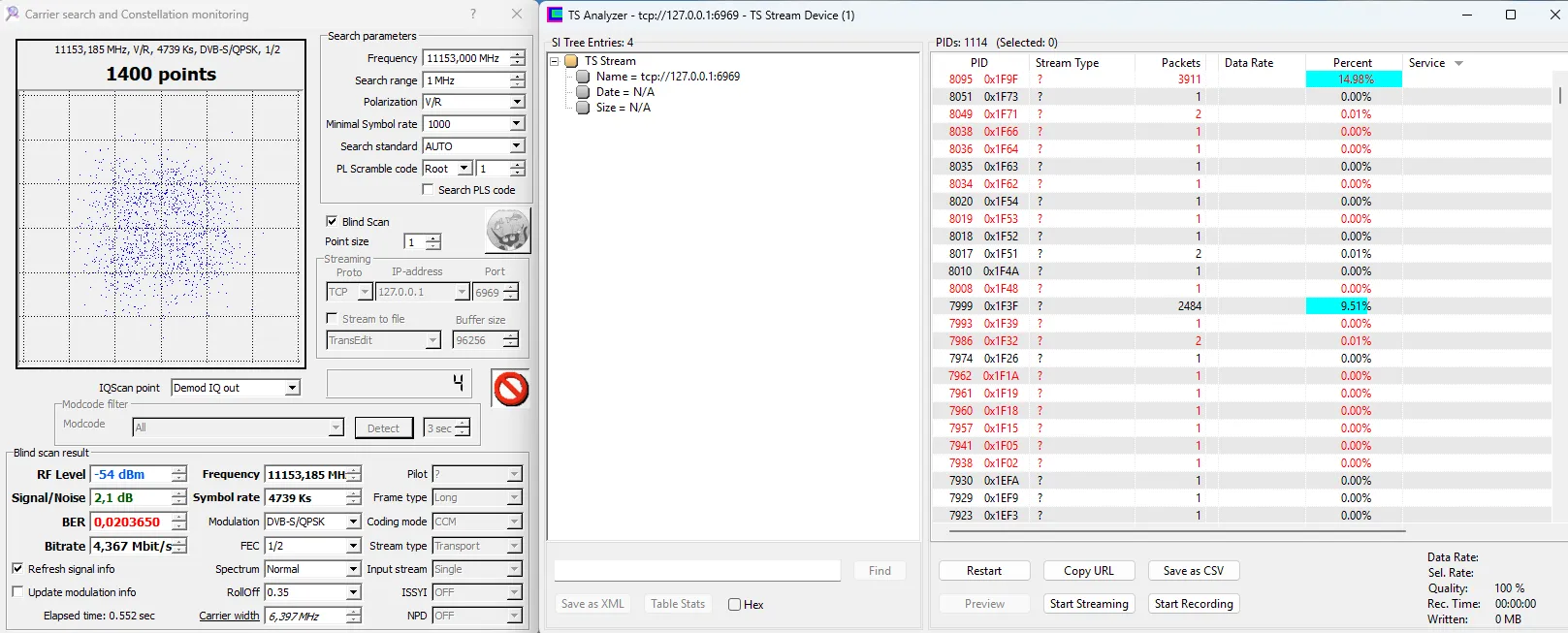

11153 V 4740 1/2 DVB-S

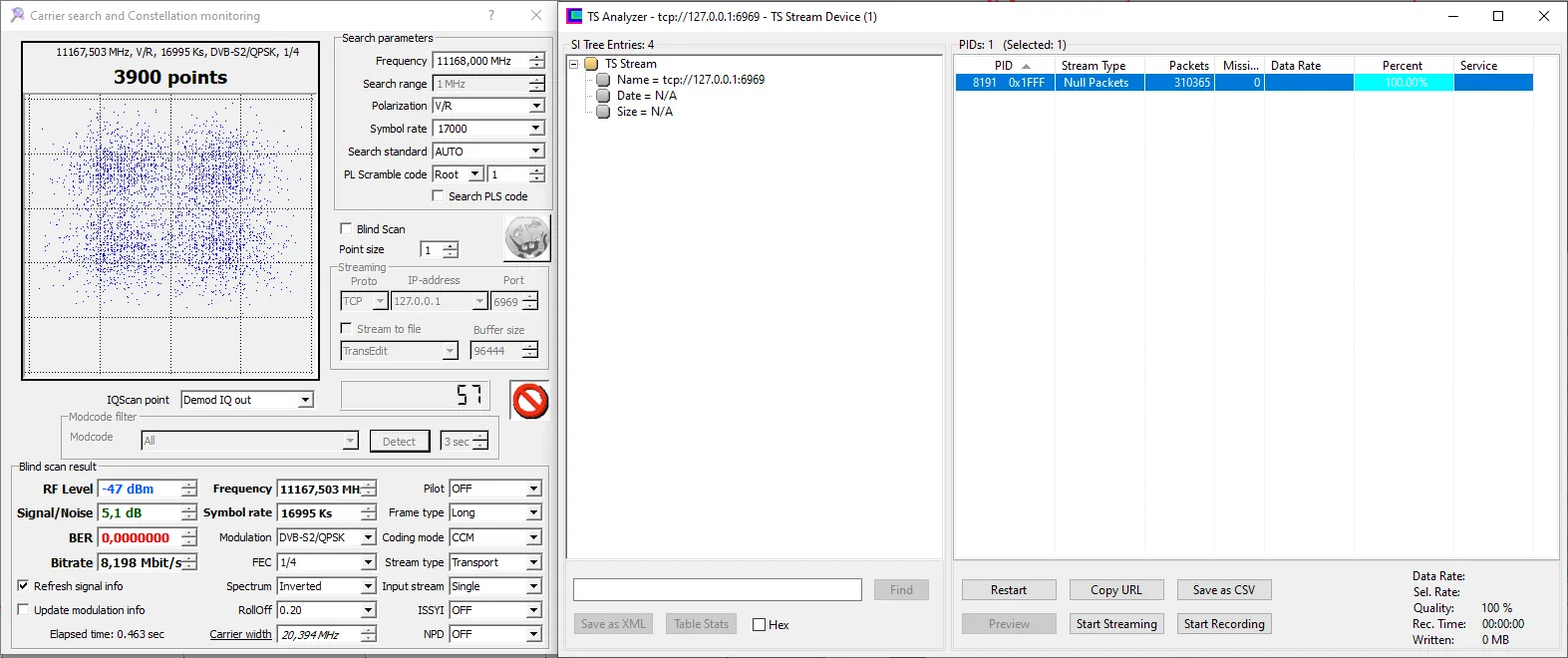

11168 V 17000 DVB-S2 QPSK 1/4

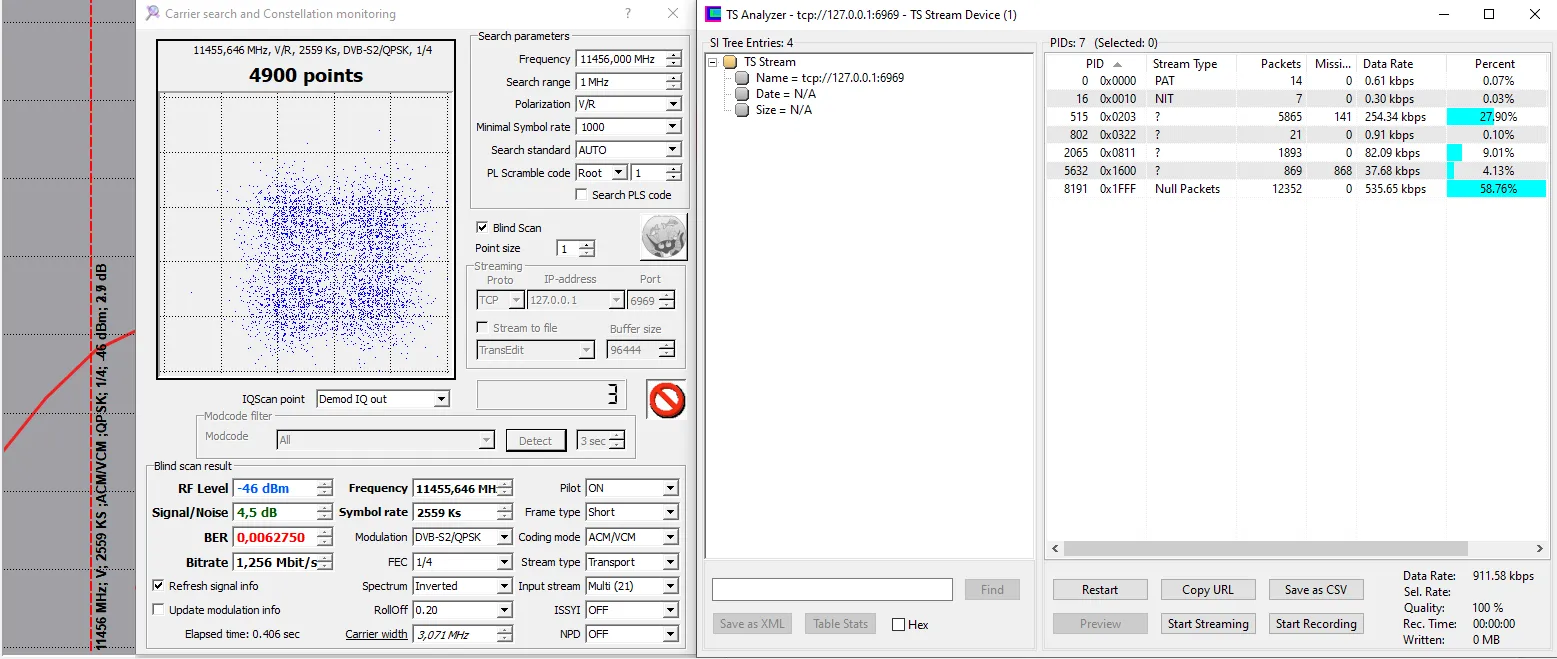

11456 V 2560 DVB-S2 QPSK 1/4

PID: 16 (0x0010) [= assigned for: DVB Network Information Table (NIT), Stuffing Table (ST)]

Guess table from table id...
NIT-decoding....
Table_ID: 64 (0x40) [= Network Information Table (NIT) - actual network]
section_syntax_indicator: 1 (0x01)
reserved_1: 0 (0x00)
reserved_2: 0 (0x00)
Section_length: 41 (0x0029)
Network_ID: 65 (0x0041) [= To be defined See Wim Mooij | 902 | Satellite | Mindport]
reserved_3: 0 (0x00)
Version_number: 19 (0x13)
current_next_indicator: 0 (0x00) [= valid next]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)
reserved_4: 0 (0x00)
Network_descriptor_length: 9 (0x0009)

DVB-DescriptorTag: 74 (0x4a) [= linkage_descriptor]
descriptor_length: 7 (0x07)
transport_stream_ID: 65 (0x0041)
original_network_ID: 65 (0x0041) [= Mindport network | Mindport]
service_ID: 651 (0x028b) [= --> refers to PMT program_number]
linkage_type: 7 (0x07) [= RCS Map]

reserved_5: 0 (0x00)
Transport_stream_loop_length: 17 (0x0011)

Transport_stream_ID: 65 (0x0041)
Original_network_ID: 65 (0x0041) [= Mindport network | Mindport]
reserved_1: 0 (0x00)
Transport_descriptor_length: 13 (0x000d)

DVB-DescriptorTag: 67 (0x43) [= satellite_delivery_system_descriptor]
descriptor_length: 11 (0x0b)
Frequency: 18109816 (= 11.45578 GHz)
Orbital_position: 1328 (= 53.0)
West_East_flag: 1 (0x01) [= EAST]
Polarisation: 0 (0x00) [= linear - horizontal]
Kind: 1 (0x01) [= DVB-S2]
Roll Off Faktor: 2 (0x02) [= Alpha 0.20]
Modulation_type: 0 (0x00) [= Auto]
Symbol_rate: 153088 (= 2.5600)
FEC_inner: 3 (0x03) [= 3/4 conv. code rate]

CRC: 3801223203 (0xe2921023)
==========================================================

PID: 0 (0x0000) [= assigned for: ISO 13818-1 Program Association Table (PAT)]

Guess table from table id...
PAT-decoding....
Table_ID: 0 (0x00) [= Program Association Table (PAT)]
section_syntax_indicator: 1 (0x01)
(fixed): 0 (0x00)
reserved_1: 0 (0x00)
Section_length: 21 (0x0015)
Transport_Stream_ID: 65 (0x0041)
reserved_2: 0 (0x00)
Version_number: 19 (0x13)
current_next_indicator: 0 (0x00) [= valid next]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)

Program_number: 0 (0x0000)
reserved: 0 (0x00)
Network_PID: 16 (0x0010)

Program_number: 652 (0x028c)
reserved: 0 (0x00)
Program_map_PID: 802 (0x0322)

Program_number: 651 (0x028b)
reserved: 0 (0x00)
Program_map_PID: 802 (0x0322)

CRC: 3403787962 (0xcae1aeba)
==========================================================

PID: 802 (0x0322)

Guess table from table id...
PMT-decoding....
Table_ID: 2 (0x02) [= Program Map Table (PMT)]
section_syntax_indicator: 1 (0x01)
(fixed '0'): 0 (0x00)
reserved_1: 0 (0x00)
Section_length: 41 (0x0029)
Program_number: 651 (0x028b)
reserved_2: 0 (0x00)
Version_number: 19 (0x13)
current_next_indicator: 0 (0x00) [= valid next]
Section_number: 0 (0x00)
Last_Section_number: 0 (0x00)
reserved_3: 0 (0x00)
PCR PID: 5632 (0x1600)
reserved_4: 0 (0x00)
Program_info_length: 0 (0x0000)

Stream_type loop:

Stream_type: 5 (0x05) [= ITU-T Rec. H.222.0 | ISO/IEC 13818-1 private sections]
reserved_1: 0 (0x00)
Elementary_PID: 802 (0x0322)
reserved_2: 0 (0x00)
ES_info_length: 3 (0x0003)

DVB-DescriptorTag: 167 (0xa7) [= User defined/ATSC reserved]
descriptor_length: 1 (0x01)
Descriptor-data:
0000: 41 A

Stream_type: 5 (0x05) [= ITU-T Rec. H.222.0 | ISO/IEC 13818-1 private sections]
reserved_1: 0 (0x00)
Elementary_PID: 2065 (0x0811)
reserved_2: 0 (0x00)
ES_info_length: 5 (0x0005)

DVB-DescriptorTag: 167 (0xa7) [= User defined/ATSC reserved]
descriptor_length: 3 (0x03)
Descriptor-data:
0000: a0 a1 a2 ...

Stream_type: 5 (0x05) [= ITU-T Rec. H.222.0 | ISO/IEC 13818-1 private sections]
reserved_1: 0 (0x00)
Elementary_PID: 6161 (0x1811)
reserved_2: 0 (0x00)
ES_info_length: 5 (0x0005)

DVB-DescriptorTag: 167 (0xa7) [= User defined/ATSC reserved]
descriptor_length: 3 (0x03)
Descriptor-data:
0000: b0 a5 a4 ...

CRC: 382524640 (0x16ccdce0)
==========================================================
