21.6°E Eutelsat 21B <Wide/Western>

    • Official Post

    Hi,

    just to start a toppic here. :83:

    :101: If someone can get Eastern beam, he can start of course a new toppic, I can´t... :91:

    PS: Very weak signal on 11682 V 2733 5/6 DVB-S and 11686 V 2748 3/4 DVB-S2, probably data.

    /:edit: correct FEC 3/4 for 11686 V, both data services.

    Best REgards
    qwer.

  • Hi qwer,

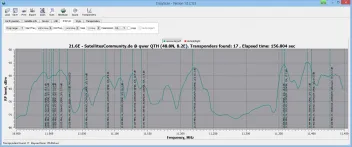

    Here's what i scanned today at 21.5E:

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    • Official Post

    Hi satesco,

    thanks for your scans! :126:

    PS: I´m not totally sure if I´m right (a little too small picture), you can´t receive Eastern beam from your location?

    Best Regards
    qwer.

    qwer setup

    Location: Rastatt, Germany

    C-band: 55.5°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 17.8°W-60.2°E KATHREIN CAS 120 (1,2m)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

  • Hi qwer,
    After FlySat,no,but perhaps if I had the antenna slightly larger i catch some signal on eastern beam. I don't expect more when the signal is 38 dBW at the edge of the footprint and we're outside of it.
    I hope to see SNR more clearly with EBS

    Images

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

    • Official Post

    Great thanks satesco! :125:

    qwer setup

    Location: Rastatt, Germany

    C-band: 55.5°West-68.5°East ORBITRON O-16 (4,9m)

    X-band: 17.8°W-60.2°E KATHREIN CAS 120 (1,2m)

    Ku-band: 61.0°West-80.0°East KATHREIN CAS 23 (2,2m)

    Ka-band A/B/C/D: 30.0°W-75.0°E KATHREIN CAS 018 (1,8m)

    Ka-band band A 2x KATHREIN CAS 120 fix on 19.2°E and 42.0°E

    Ku-band LNB: Invacom SNF-031, Inverto Single Flange

    C-band LNBs: Kaonsat, C-Panorama 13K, Norsat 8000RI C-DRO, BrasilSat LNBF AP30 PLL

    Ka-Band LNBs: Inverto Twin WHITE Ka Circular Dual Polarity LNB (flange), Inverto IDLK-SINL20-KAKU-OPP,MCL-KP04, Norsat 9000HX-O3B-BN, Orbital LNB1825F-1000D-WF55

    X-band LNB: Norsat X1000HAF

    Feeds: Invacom ADF_10 + 2 rings, XMW Ka-band Feed FD9000K

    Waveguide Polariser: AV-COMM

    Tuner: TBS 6925, TBS 6903, TBS 6903X, TBS 6522

    >qwer setup

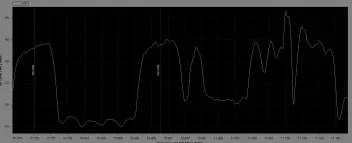

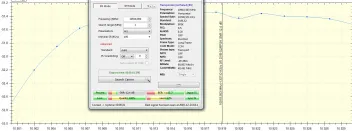

  • From my QTH I have weak signals on
    10981 H 5595
    10986 H 1172
    10988 H 955

    :88:

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Thanks Marval.
    It's interesting because the spectrum looks strong,
    PLS ?

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • on my place there is the same signal like Feedsat after a small raining

    1 Lam. 180 stationäry on 26 east

    1 Gib. 150

    1 T90
    1 Gib. 125
    all together in multifeed with 28 lnb

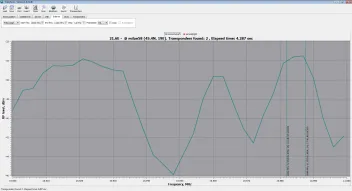

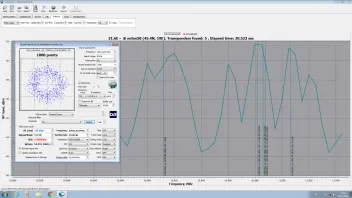

  • Does any of you has tried a PLS search ?


    PS: 10987 H has changed SR

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

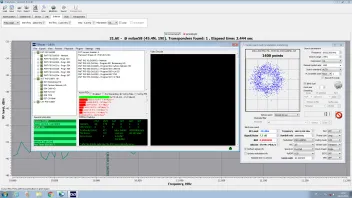

  • Thanks milan58 for discovered it :76: Signal not too strong.But what contains this transponder?
    regards :125:

    7 antennas,including 2 of 150cm,one T90 with 16 lnbs
    lnb:Inverto Black Ultra with scalar rings and many Ku lnbs,
    C-band LNB:ESX241,Galaxy Inovations,EuroStar,MTI 20K,NS741U C/Ku,Inverto Single C-band Flange,lnb Chaparral Servo Motor & Skew Control
    LNB Ka:R9216DF XWM,Hughes FSS 19.7-20.2 GHz,
    6 satellite receivers,2 Meters,
    7 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,6504),3 tuners usb-tbs5927,tbs5925 & SkyStar USB 2 HD,
    Satellite reception between 100.5E-50.0W,
    Loc:Romania :3:

  • Quote

    Original von Feedsat
    Does any of you has tried a PLS search ?


    PS: 10987 H has changed SR

    21,6°E
    I still have not managed to unlock new frequencies?
    1=10982,H,5594,35,134,|-2 (-7.8) dB; 8:14 19/12/2016
    1=10986,H,1172,35,134,|-0.4 (-6.2) dB; 8:14 19/12/2016
    2=10988,H,1553,34,134,|2.5 (-5.71) dB; 8:14 19/12/2016

  • 10735 and 10920 V new mux ?
    DVB S S2 S2X not found

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Quote

    Original von Feedsat
    10735 and 10920 V new mux ?
    DVB S S2 S2X not found


    Nothing from here either .... :91:

    Owner of Cy Satellite Center
    Dreambox 8000HDssss,7080HDss,7020HD,Vu Solo 4K,Tandberg Prof.Receiver
    TBS 6903x v2,5590,5520,6983,6925,5927,5925,Rover HD Tab 9 Plus
    AMS 3.4m,AMS 3m H-H(Under Cons.)Titosat 2.1m motorised
    Location : Limassol - Cyprus :3:

  • hello,
    10918 H was sometime listented in my receiver; reception 10dB (26° Ost in the middle on 180 dish)

    regards

    1 Lam. 180 stationäry on 26 east

    1 Gib. 150

    1 T90
    1 Gib. 125
    all together in multifeed with 28 lnb

  • Quote

    Original von Kleinraisting
    hello,
    10918 H was sometime listented in my receiver; reception 10dB (26° Ost in the middle on 180 dish)

    regards


    Feedsat wrote the frequencies with Ver pol. not Hor
    10918 Hor is Bein Package from wide beam

    Owner of Cy Satellite Center
    Dreambox 8000HDssss,7080HDss,7020HD,Vu Solo 4K,Tandberg Prof.Receiver
    TBS 6903x v2,5590,5520,6983,6925,5927,5925,Rover HD Tab 9 Plus
    AMS 3.4m,AMS 3m H-H(Under Cons.)Titosat 2.1m motorised
    Location : Limassol - Cyprus :3:
