25.1°E Skynet 5B (incl.)

    • Official Post

    New: 7618 L 2500 1/4 ACM Transport
    MIS 0 & 1
    (nothing found in the streams)

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Quote

    Original von Feedsat
    New: 7618 L 2500 1/4 ACM Transport
    MIS 0 & 1
    (nothing found in the streams)

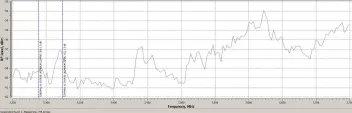

    No lock there but a couple of weak locks lower down on a 1.2m Channel Master with LHCP feed and ~2dB NF LNA

    Images

    1.2m Prodelin 3122 az-el with one of:
    S: Helical feed, 0.8dB NF LNA, X: 1dB NF LNA, conical feed, Ku 12-18GHz: corrugated conical feed, 1.5dB NF LNA, Ku: (10-15GHz), modified SMW LNA on rotating mount, Prodelin feed. Ka: Gilat ex-ODU PLLs Gilat feeds, Ka 18-26.5GHz: Patriot feed, home made 4dB NF LNA, Ka DSN: Corrugated conical feed, 3dB NF Down-Converter

    1.8m PF, Polar mount with Bullseye C120 LNB, Precision/Elite feed
    40km East of London, UK

  • 7610 L 1000 16APSK 8/9 New but no lock

    DATA , not a GS in my opinion and constellation

    Images

    Feedsat's Setup

    - Wineguard Micromesh 3.10 m

    - Channel Master PFA 3.10 m

    - Laminas 1.80 m

    - 2 X Channel Master 1.80 m

    - Channel Master 2.40 m

    - KU, KU Ext.,Full KA, X, C & C Ext

    - TBS5925 -TBS6522 - TBS6983 - DTA2137CSXP

    - NS2000 - RX8200 - ADV-6000S

    - TM1 - TC1 - SR1 - MATRIX DEV1982

    - Promax TV II+

    - Dual Axis multi Antennas controller

    - EGIS - LNB Changer

    - Venture motorisations

    - 78.5°E (KU) <> 65°W (C)

    - Loc: France

  • Quote

    Original von Feedsat
    7610 L 1000 16APSK 8/9 New but no lock

    DATA , not a GS in my opinion and constellation

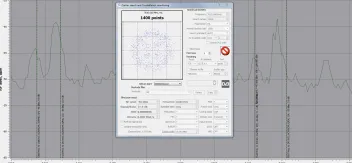

    Too weak on a 1.2m but here's today's scan.

    Images

    1.2m Prodelin 3122 az-el with one of:
    S: Helical feed, 0.8dB NF LNA, X: 1dB NF LNA, conical feed, Ku 12-18GHz: corrugated conical feed, 1.5dB NF LNA, Ku: (10-15GHz), modified SMW LNA on rotating mount, Prodelin feed. Ka: Gilat ex-ODU PLLs Gilat feeds, Ka 18-26.5GHz: Patriot feed, home made 4dB NF LNA, Ka DSN: Corrugated conical feed, 3dB NF Down-Converter

    1.8m PF, Polar mount with Bullseye C120 LNB, Precision/Elite feed
    40km East of London, UK

  • qwer December 19, 2020 at 9:02 AM

    Changed the title of the thread from “25.1°E Skynet 5B” to “25.1°E Skynet 5B (incl.)”.

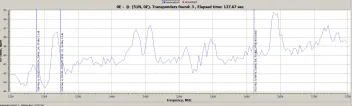

  • Today's spectrum on a 1.2m dish

    1.2m Prodelin 3122 az-el with one of:
    S: Helical feed, 0.8dB NF LNA, X: 1dB NF LNA, conical feed, Ku 12-18GHz: corrugated conical feed, 1.5dB NF LNA, Ku: (10-15GHz), modified SMW LNA on rotating mount, Prodelin feed. Ka: Gilat ex-ODU PLLs Gilat feeds, Ka 18-26.5GHz: Patriot feed, home made 4dB NF LNA, Ka DSN: Corrugated conical feed, 3dB NF Down-Converter

    1.8m PF, Polar mount with Bullseye C120 LNB, Precision/Elite feed
    40km East of London, UK
