Observation only at aprox 70/71 West
Two markers observed ... 7250.05 L & 7255.00 L on an otherwise empty band scan , please amend or confirm if required.
...............................................................................................................................................................................................................................................................
Please check , correct or move if not correct
Sourced from X band lnb on 2.2m multi lnb changer
..........................................................................................................................................................................................................................................................

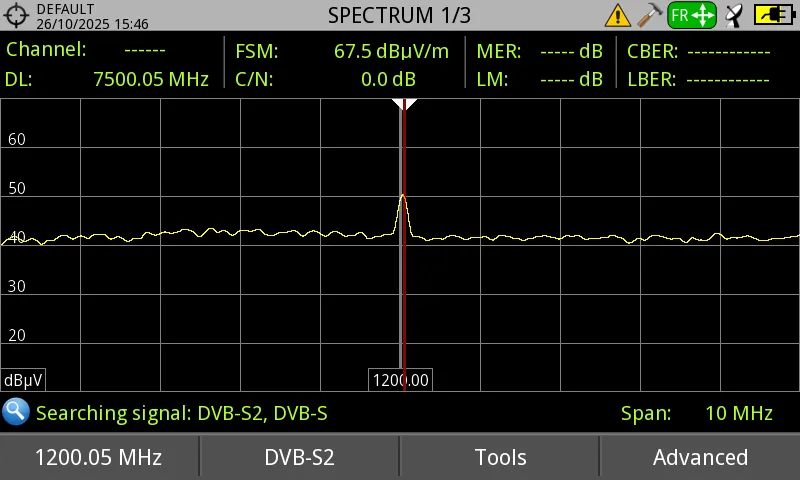

Checked this out this afternoon , nothing seen at the frequency reported by Feedsat but did see this weak signal at aprox 66 West at 7500.
Not showing up on a CS scan
........................................................................................................................................................................................................................................................

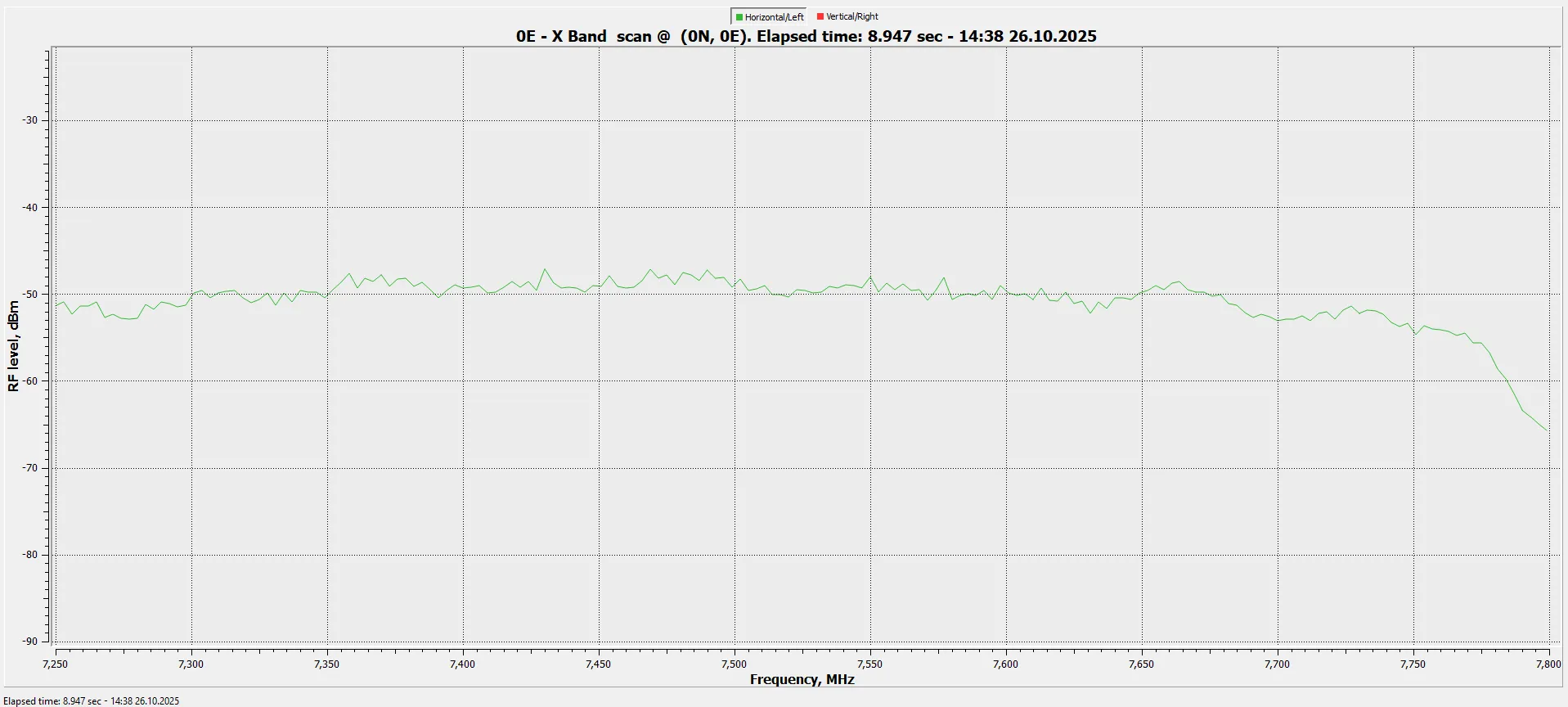

Nothing new in mid-of-october ´25 scan...
Newcomer to X band frequencies, testing the waters with newly installed Orbital Ext 10MHz Ref lnb, 2.2m PF, 17Km North of Nottingham UK. Random choice of test freq picked from forum Xband list.
............................................................................................................................................................................................................................................................
Prompted by s-band to visit the sat again ...Not been here for a while also so checked it out, fair cloud base present, signal dB is up and down but captured it on a 1.2m Gibby 17k North of Nottingham UK.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
According both Lyngsat and Portal BSD, the only analog still active is 3730 V TV Verdade.
Yes, can confirm that.
Can see the frequency on the analyser using a NON 5G lnb but is at a reduced level compared to over a year ago.
Now with very strong local 5G interference at 3.799GHz and down, also now having to use 5G lnb filtering, there is absolutely no chance of ever receiving that last remaining PAL signal again. Have tried the counter measures of fixing mesh wire guard around dish edge etc but the 5G signals are so massive that it just does not work.
I could only check horizontal polarisation but there were 3 signals today including the beacon. I used an SMW Q-PLL type R set to 11.3GHz LO. It's not great with a NF of 3-4dB at 13.6G. 1.8m dish.
Iv'e got the three up here again as well , usual beacon @ .401 , for me today the frequency hopping is between 13.415 V to 13.417 V. The strong marker at 13584.5 seems to be circular, possibly LHC. [ only using a linear feed onto a Chinese Universal Ext Ku lnbf on a 1.2m CM dish ]
55.5 West.
Football feed, new for me.
4055 V. 9999, DVBS2, 8PSK, 3/4. BISS /422.
............................................................................................................................................................................................................................................................................
47.5° West ...
Poor weather here at the moment .....

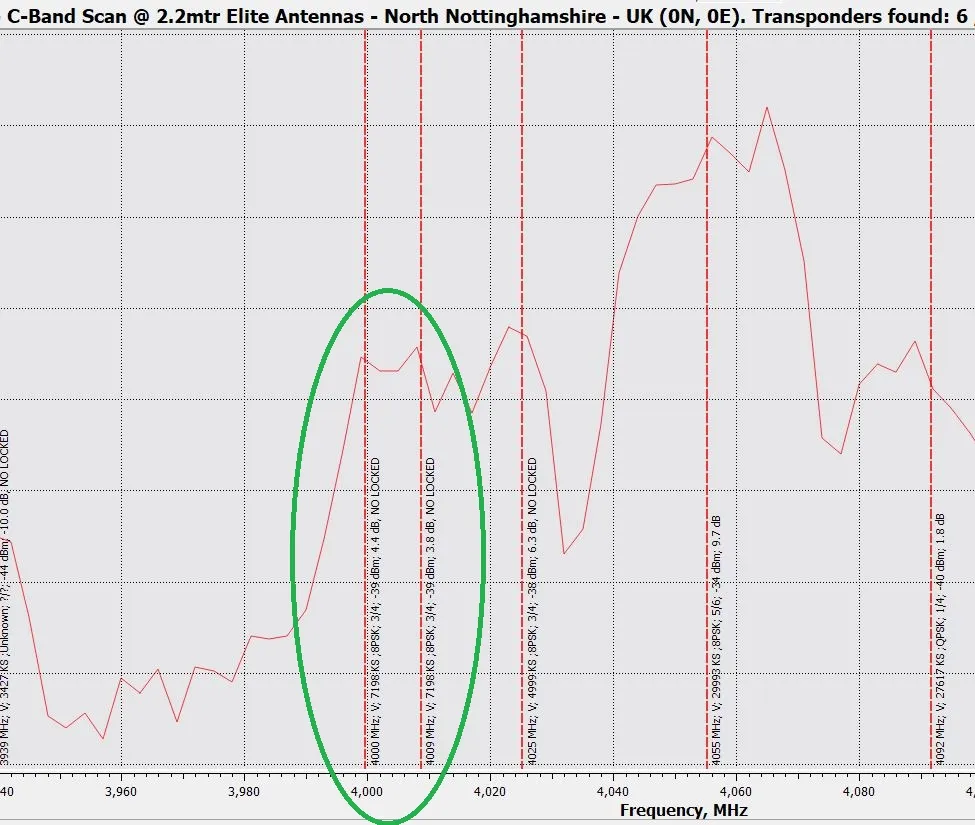

I can see what looks like two new RHC feed frequencies for me but just can't scrape enough signal to lock - Central UK, 2.2PF, ALGA RED 5G 3.82~4.2G external filter, Norsat 5150 DRO lnb - anybody to assist please

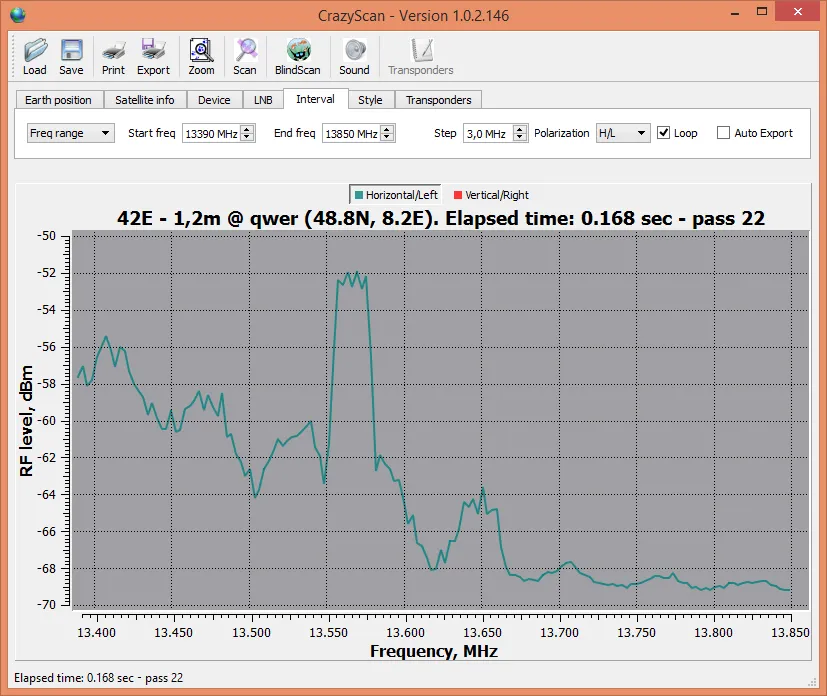

For a short moment at 18.20 CET - around 13565
Observed this very low signal again this afternoon in Central UK but only on a 1.2m Gibby antenna so very weak , anybody able to confirm please.
.................................................................................................................................................................................................................................................................................
Just in lock here in Central UK - 2.2 PF , trialing a Norsat 3200F-BPF-8 pll lnb
.....................................................................................................................................................................................................................................................................

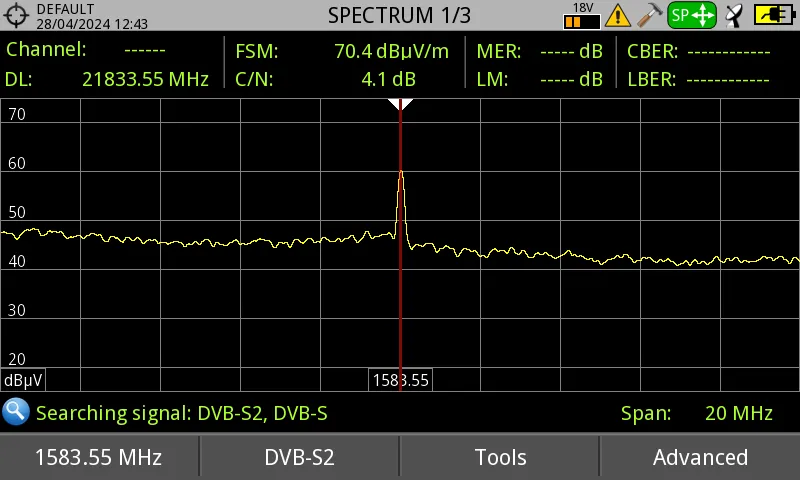

I don't usually monitor 23.5E Ka on my 1.2 Gibby from my qth here in Central UK due to very poor footprint - today, on a casual scan H i see a marker at 21833 H. which i'm pretty certain iv'e not noticed before. I'm on a linear feed so it could be a circ pol marker - is anybody able to check for clarification please.

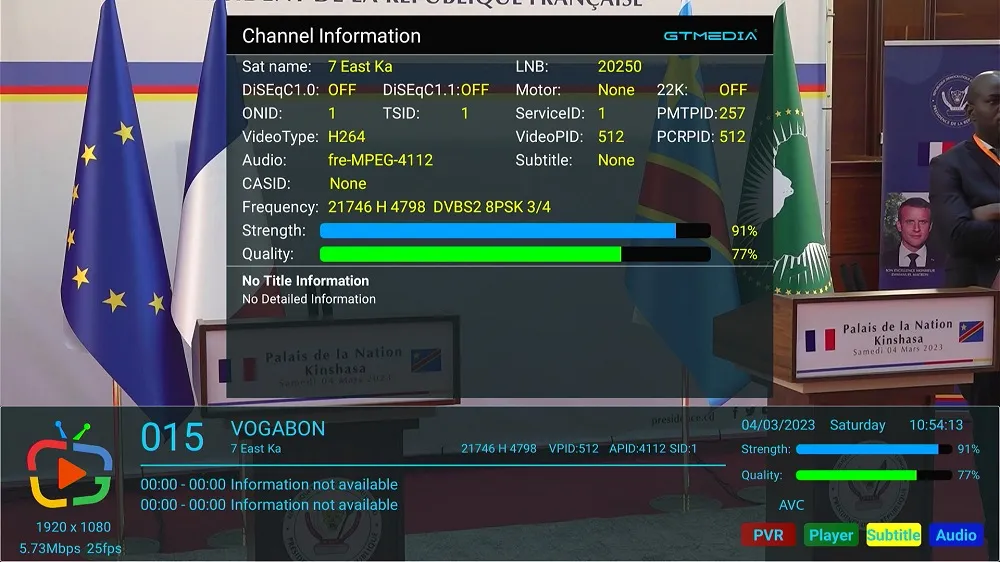

7° East Ka Feed.
New to me - 21.746H 4798. 3/4. DVBS2. QPSK.
New for me - 2.2 PF, 17k North of the City of Nottingham, UK.

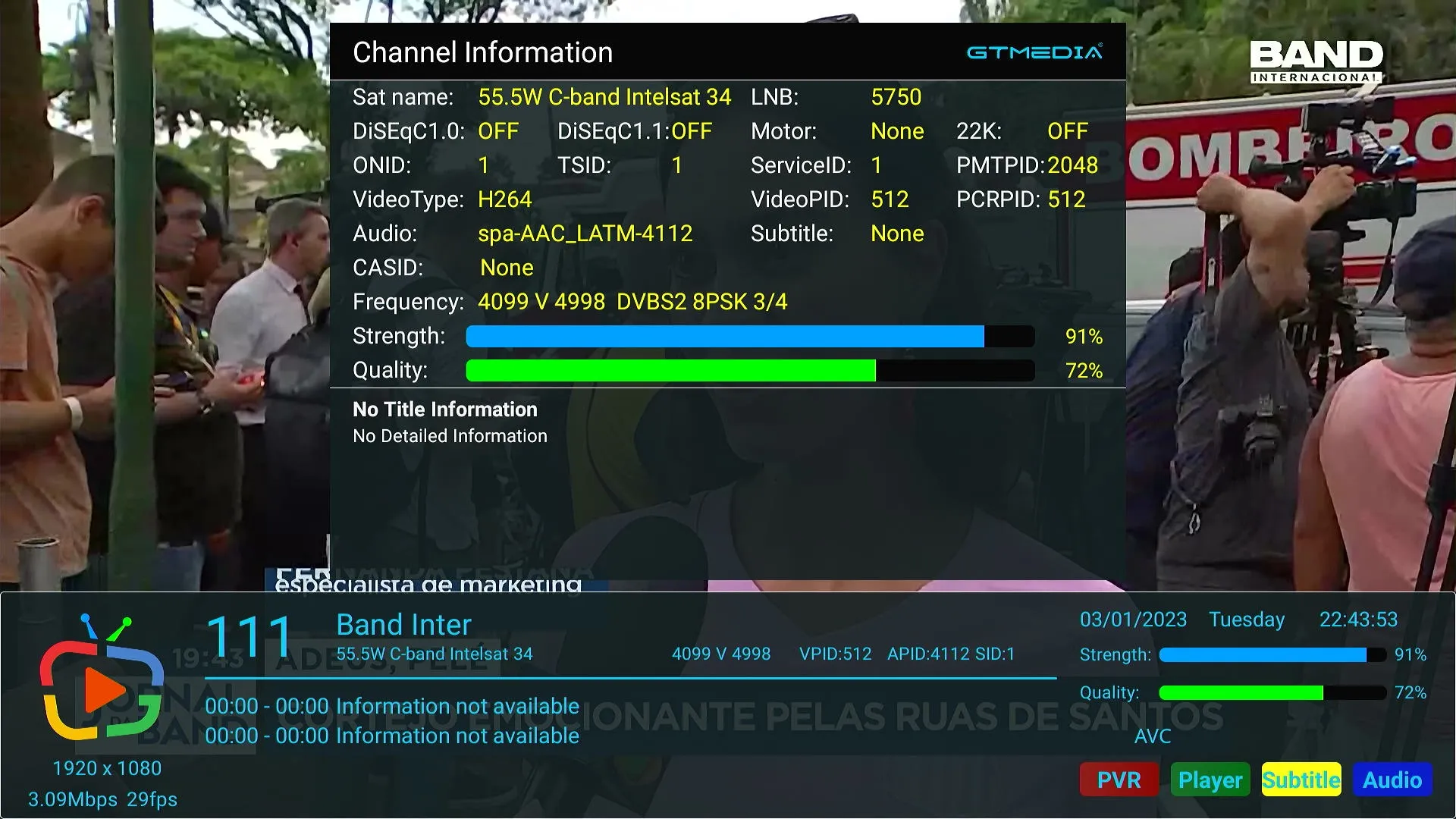

55.5W. 4099 V. 4998. 3/4. DVBS2. 8PSK. FTA.
'Band International'
'Band News'
........................................................................................................................................................................................................................................................
The group buy of custom L.O. upper Ku LNBF's we bought from China have L.O. of 11.8GHz with frequency range of 12,75GHz to 13,75GHz.
Are you using a different/modified LNB and not the Chinese one we bought?
Yes i'm using one from the 'Group Buy' thing we did way back - it's the one on the left of your picture
>>FYI: Data toppic from this position in extanded range, here.<<
Forgot to say - thanks for the re-direct
.
Question - - has anybody got any idea what the lnbf product for 13.75 - 14.5GHz is intended for use with ? .. ie: which satellite / data / tv / ? etc

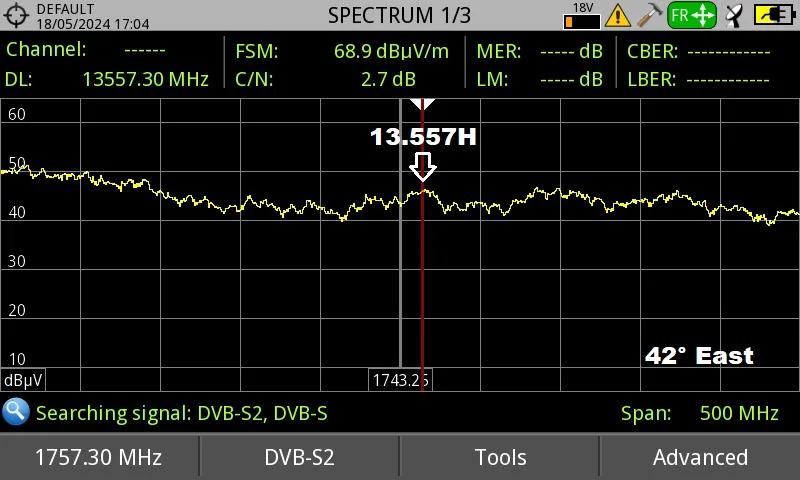

I have been monitoring this satellites reported upper Extended Ku capability for quite a while now from my location 17k North of the City of Nottingham UK with a dedicated 13.4 - 13.65GHz lnbf and a 1.2 mtr Gibertini antenna. The published footprint by Turksat gave me hope of receiving something .
I monitored the upper range on New Years Eve well in advance hoping to catch something in upper Ku Extended but no luck, but will still continue to monitor.
........................................................................................................................................................................................................................................................................................................................................................
Checking the C band PAL analogue signals out tonight from 70 West , Brazil/South America beam from the UK - not very good reception conditions at the moment.
Here's 3790 V
..............................................................................................................................................................................................................................................................................
New for me here in the UK, .. 4709 H. 4998. DVBS2. 8PSK. 3/4. fta.
......................................................................................................................................................................................................................................................................................................................
